portable hydraulic chain feed drilling machine used for Blast Holes
Zhengzhou Lead Equipment Co., Ltd.- After-sales Service：Yes
- Warranty：Yes
- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：80-100mm
Base Info
- Model NO.：LPD100H
- Drill Hole Depth：20-30m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Drill Rod：60*1000mm
- Rotary Speed：0-93rpm
- Working Pressure：0.5-0.7MPa
- Air Consumption：>10m3,Min
- Lifting Force：9600n
- Performance：Excellent
- Color：Customized
- Transport Package：Standard Export Packing
- Specification：ISO, CE
- Trademark：Leadcrete
- Origin：Henan China
- HS Code：84303900
- Production Capacity：100 Sets,Month
Description
Overview
Product Description
Detailed Photos
Super portable, Super lightweight
Hydraulic portable chain feed drilling machine is widely used for the below project:
- Product Parameters

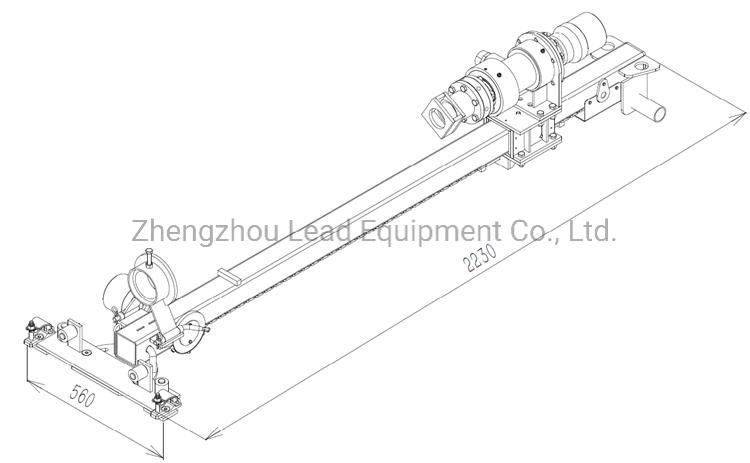

Model LPD100H Hole Diameter 80~120mm Hole Depth 30m Feed Force 12KN Rotate Speed 90~120rpm Torque 1000NM Air Pressure 0.5~0.7Mpa Air consumption 7~8m3/min Single feeding distance 1m Drilling Direction Any Angle Weight 86Kg (Only drill machine) Dimension 2230x560x415mm
If you are looking for this product, please contact us and support customization!
