Drilling Rig

Home > Product > Mine Drilling Rig

DTH Drilling Rig Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Yes
  • Warranty：12
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：<100mm

Base Info

  • Model NO.：HW421
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Operating Weight：6850kg
  • Dimensions(L*W*H)：6000X2800X2750mm
  • Diesel Engine Power：162kw
  • Drill Depth：20m
  • Hole Diameter：80-115mm
  • Air Comrpessor Size：14.5bar
  • Transport Package：Roro Ship
  • Specification：6800kg
  • Trademark：HW
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：600 Set,Sets Per Month

Description

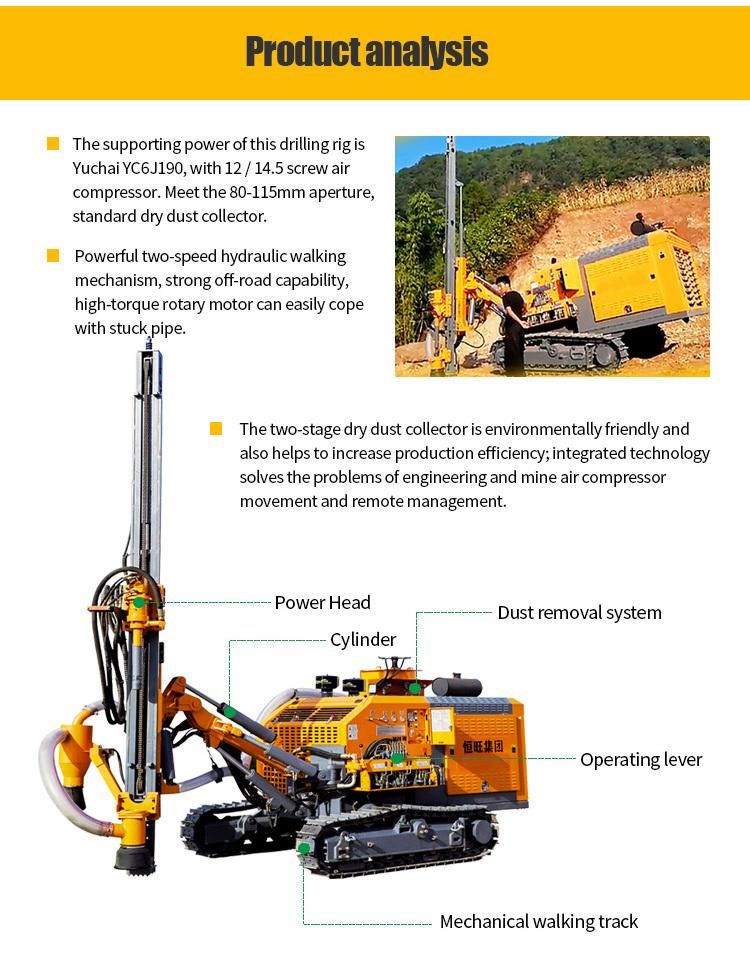

                                       air compressor built-in  surface DTH mine drilling rig for quarry                                                                                     ModelHW421Machine Weight6800kgEngineYuchai  162 kWDrill Pipe Sizes60 X 3,000 mmHole Dia80-115 mmWorking Pressure15 barF.A.D12 m3/minTramming Speed ( Max.)3 km/h (High Speed)Gradient25°Track Frame Oscilation±10°Transportation Dimensions6000X2800X2750 mm
Detailed Images

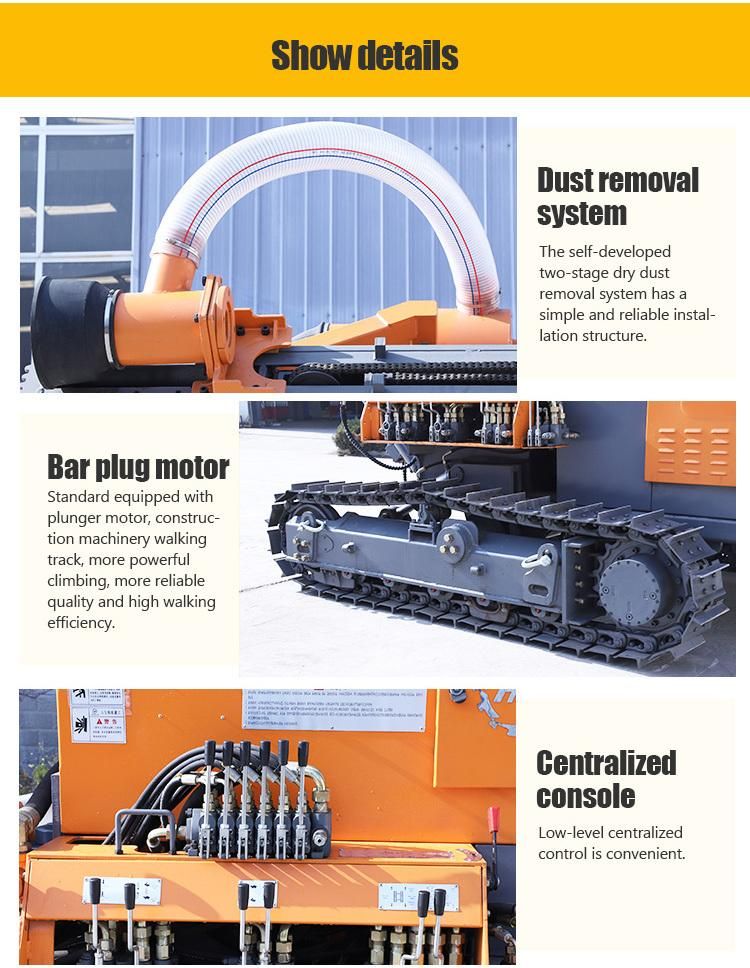

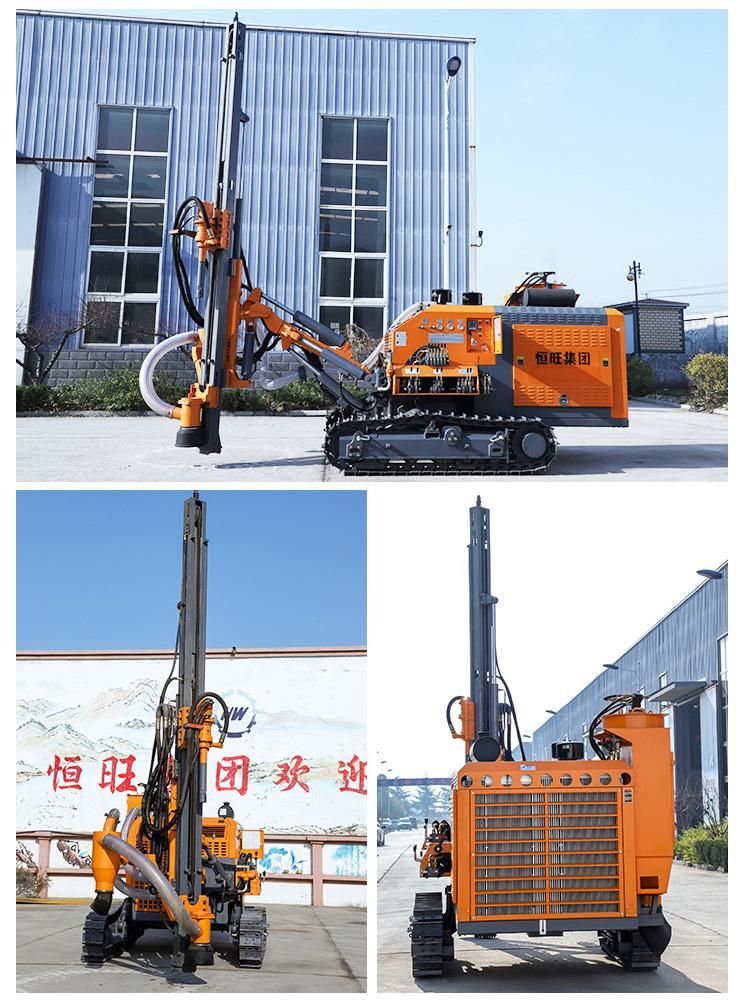

Detailed Images of Mini combined blast hole drilling rig
DTH Drilling Rig Machine
High Quality mine drilling rig and Durable.
DTH Drilling Rig Machine

DTH Drilling Rig Machine


DTH Drilling Rig Machine
