Factory Direct Sale Hydraulic Diesel Water Well Drilling Rig Mine Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：1year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel ,Electric
- Drill Hole Diameter：250-300mm
Base Info
- Model NO.：260M
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Type：Crawler
- Drilling Rock：20m~40m,Hour
- Drilling Depth：260m
- Drilling Diameter：: 100-300mm
- Engine Power：76kw
- Transport Package：Container
- Specification：4100*1900*2600
- Trademark：HW
- Origin：China
- Production Capacity：1000PCS,Month
Description
Model
HQZ-260L
Total Weight(T)
6.4
Dimensions(mm)
4100*1900*2600
Drilling Diameter(mm)
140-300
Drilling Depth(m)
260
One-time Advance Length of the Drill(mm)
3000
Walking Speed(Km/h)
2.5
Climbing Ability(max)
30
Min. Ground Clearance(mm)
250
Working Air pressure(Mpa)
1.7-3.0
Air Consumption(m³/min)
17-35
Main Power(kw)
73/Yuchai
Rotation(rpm)
40-70
Rotary Torque(Nm)
7000-9000

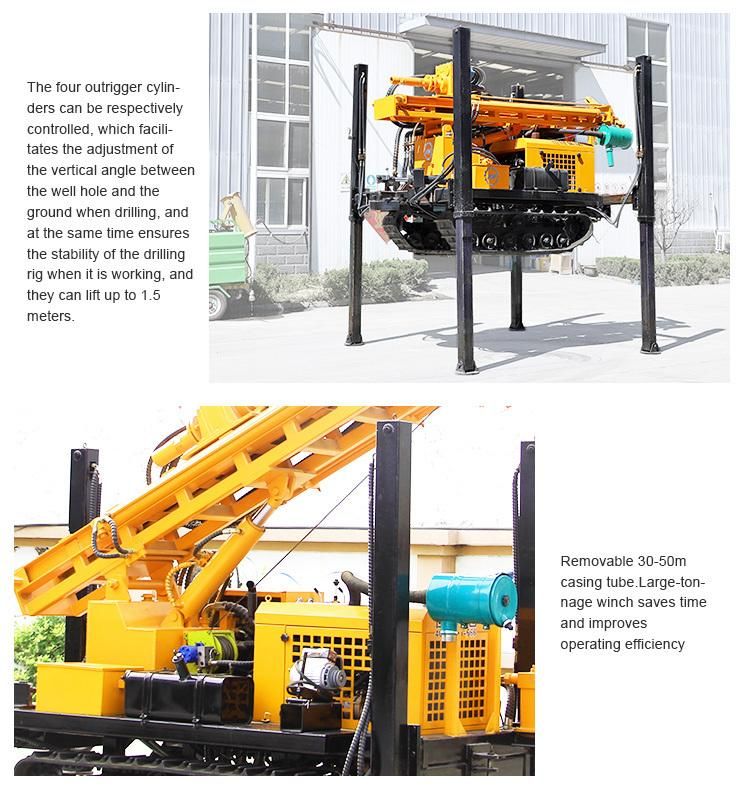

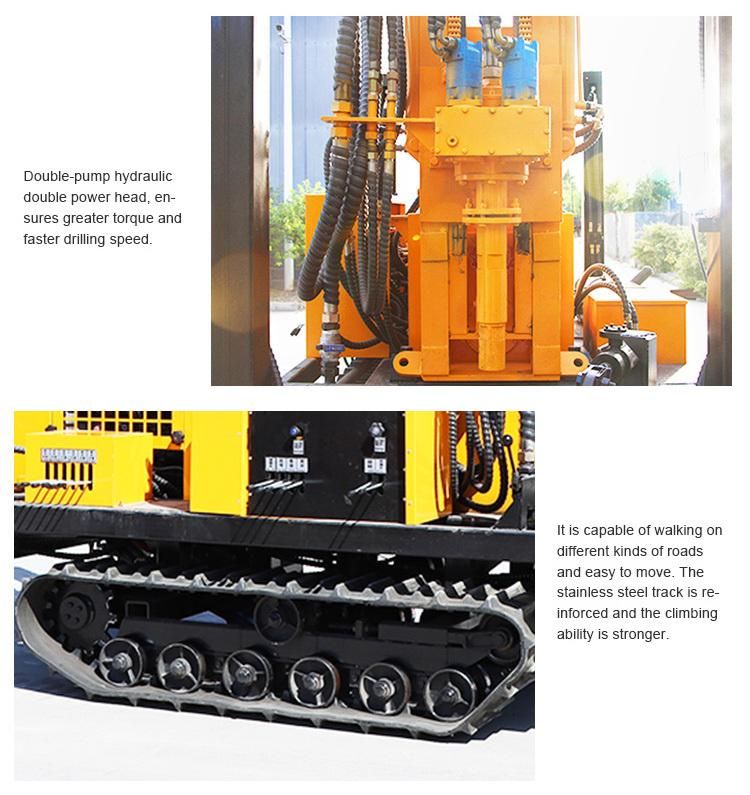

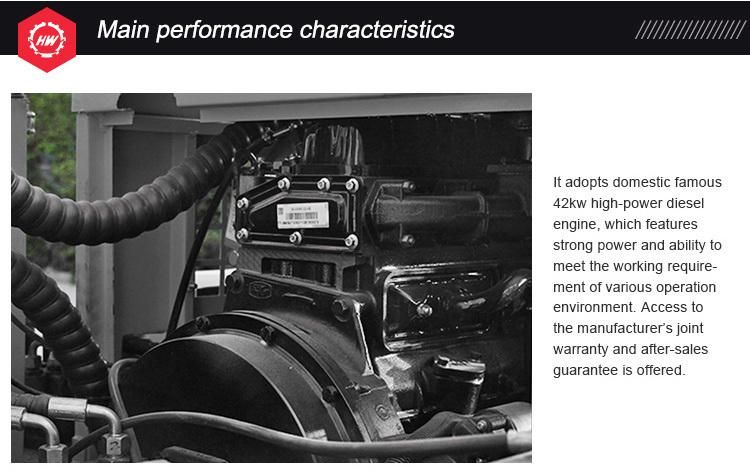

Detail Photos
Product ConfigurationSuccessful ProjectPackaging&ShippingDrill rigs are coated with anti-rust liquid naked, drill pipes are bundled and packed, impactors, drill bits and other accessories are packed in plywood boxes.1 Set Shipped with 20GP;Whole set with air compressor needs a 40GP;
