• Type：Track
• Engine Power：93 kw
• Max Torque：4500 N·m
• Max Mud Pump Flow：200 L,min
• Transport Package：Nude Packing
• Specification：5465*1670*2040 mm
• Trademark：Goodeng
• Origin：China
• HS Code：843041
• Production Capacity：2000,Year

Basic Info.

Type Track Engine Power 93 kw Max Torque 4500 N·m Max Mud Pump Flow 200 L/min Transport Package Nude Packing Specification 5465*1670*2040 mm Trademark Goodeng Origin China HS Code 843041 Production Capacity 2000/Year

Product Description

Horizontal Directional Drilling Machine

[Main Performance Characteristics]

1.The machine is equipped with Cummins engine, with high efficiency, large power, low fuel consumption, low noise, and strong ability in construction.
2. Push & pull and rotation adopt manual handle, which is simple and quick to control.
3. Humanized-design worktable can rotate within 60°, with a wider view range, and high-quality seat that can be moved forward /backward is comfortable for operator.
4. Europe-American style surface, streamline sculpt, and elegant appearance, fully embody humanist designing idea. And it can be opened overall for flexible operation and daily convenient maintenance.
5. Small size and lightness is better for construction in city center, transferring and drilling in different kinds of working condition.
6. It is equipped with Vermeer type drill rod (Φ50 or Φ60×3000), with high quality, high reliability and superior performance.
7. Main assembly parts adopt components from international first-class hydraulic components manufacturer, which can greatly improve the performance of products reliability.
8.The rack and pinion push & pull system is adopted for the rig, so our machine is with high efficiency, low failure and stable working condition.
9. Optional auto loading, auto anchor, auto thread oil machine etc., can greatly improve working efficiency and reduce working intensity

[Main Technical Parameters]


Engine Power	93 kW	Max Torque	4500 N·m
Rig Weight	4750 kg	Dimension(L*W*H)	5465*1670*2040 mm
Max. Push & Pull Force	135 kN	Max Rotation Speed	193 r/min
Max.. Push & Pull Speed	36 m/min	Max. Mud Pump Flow	200 L/min
Caterpillar Walking Speed	2.5-4.5 km/h	Max. Mud Pump Pressure	8 Mpa
Enter Drill Angle	12-22°	Max. Climbing Gradient	16°
Max. Aperture Diameter	Φ700 mm(Soil Depended)	Max. Crossing Length	220 m(Soil Depended)

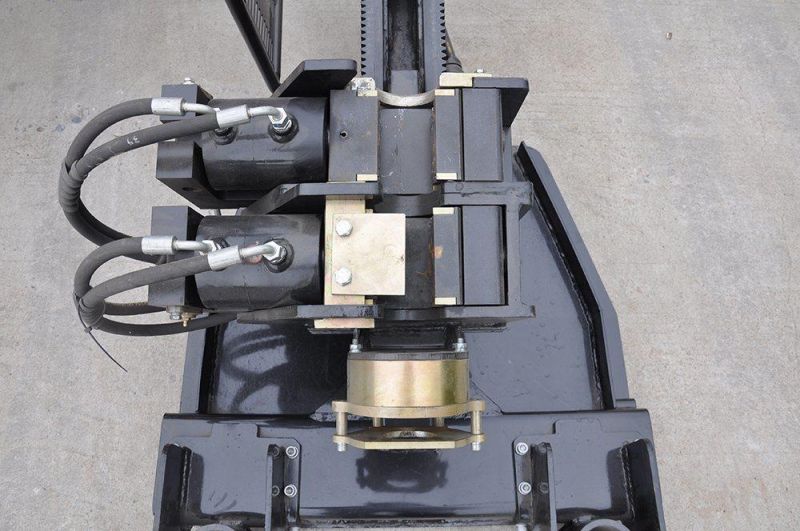

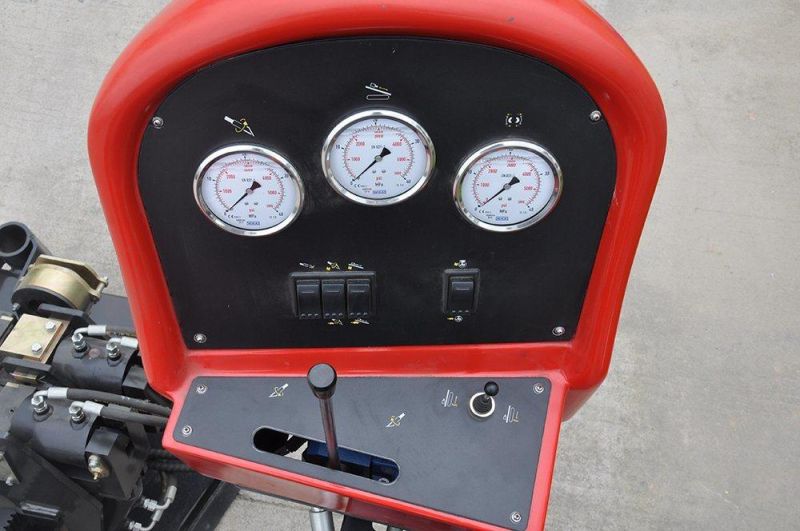

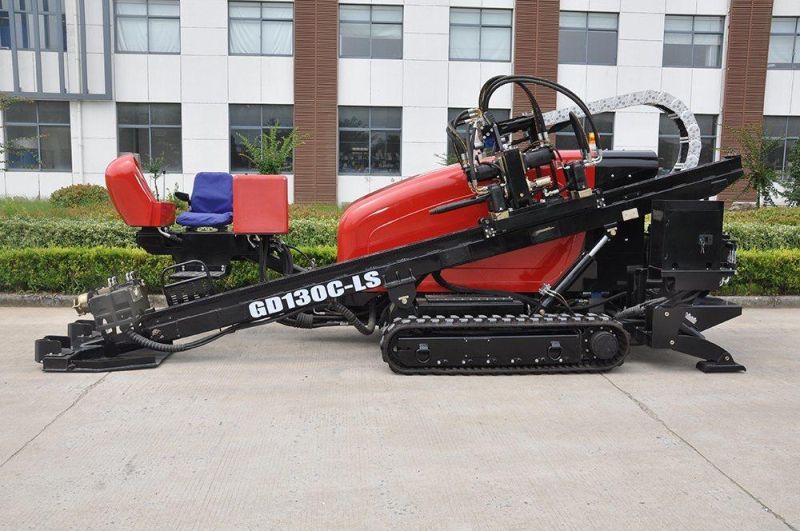

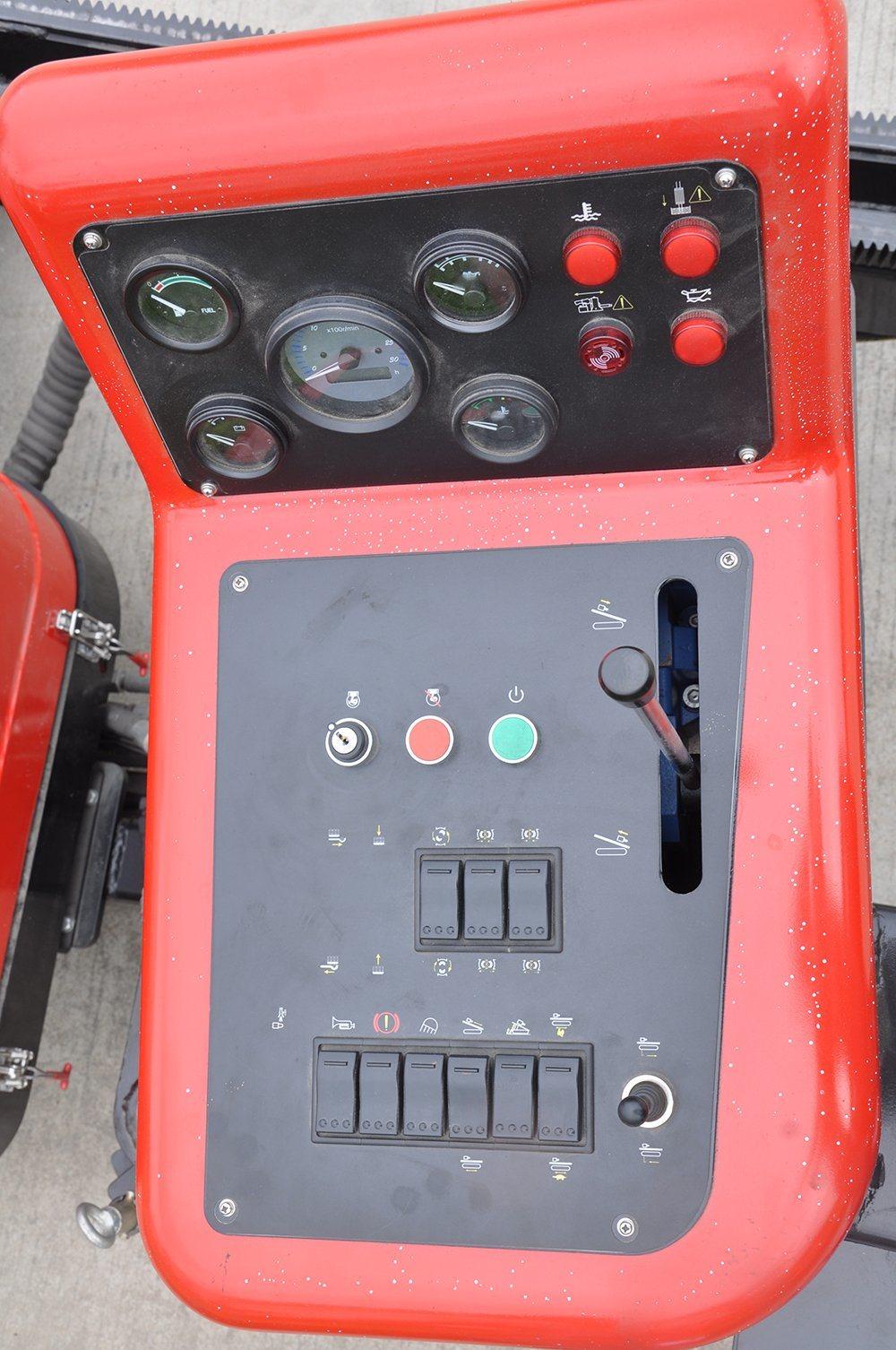

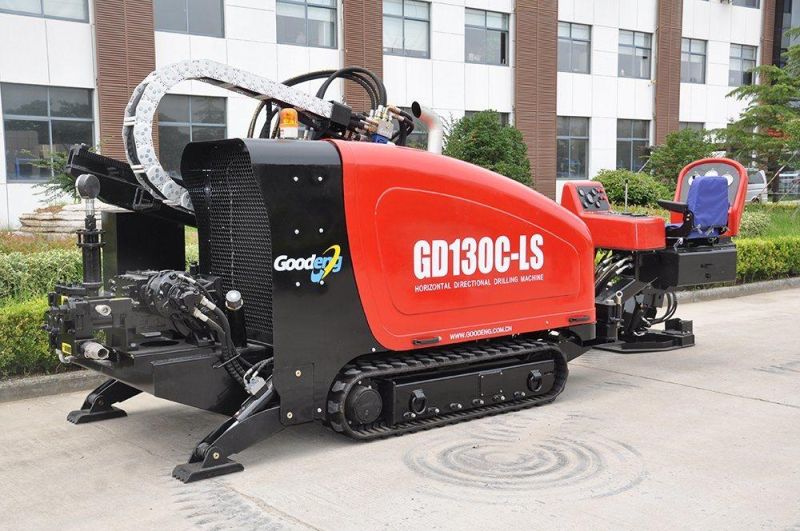

[Product Photos ]

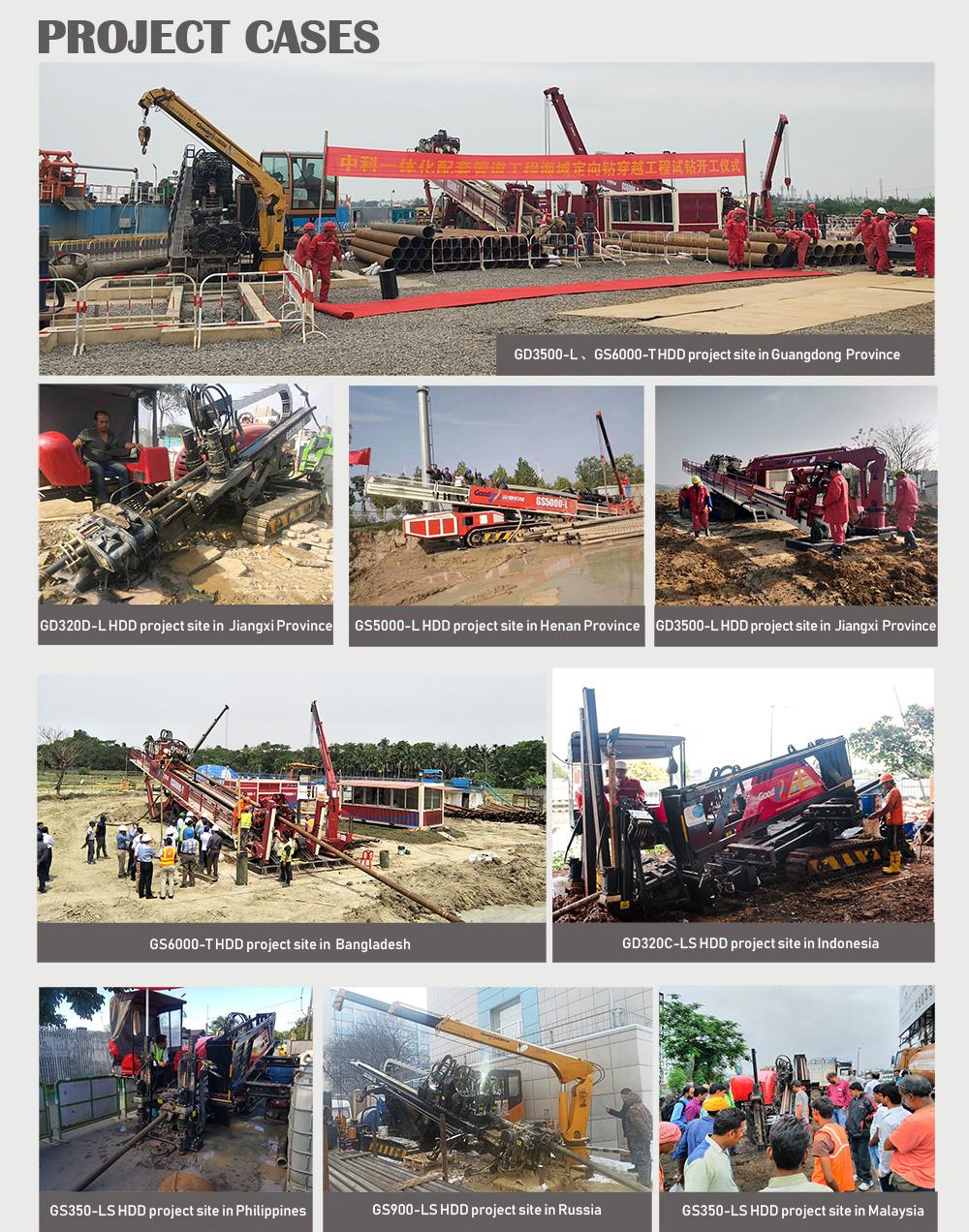

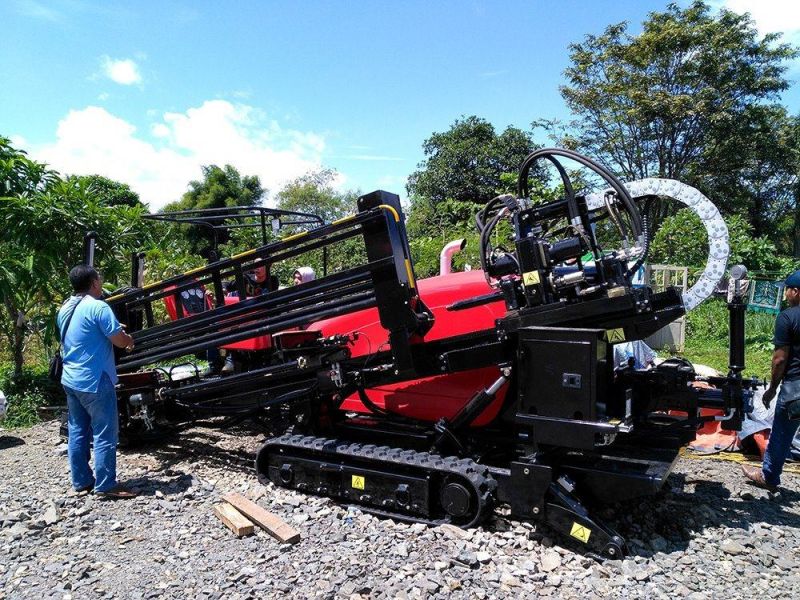

[Cases]




[Company Information]




[Company Profile]

"Goodeng Machine", founded in May 2002, is a national high-tech enterprise, which is specialized in research & development, manufacturing, sales and service for trenchless equipment. Our main products are GD/GS series of horizontal directional drilling machine and accessories. As Mechanization Research Branch industrialization base of China Academy of Building Research, Goodeng Machine has independently developed almost 30 models of horizontal directional drilling machine from 5T to 1200T with strong and professional R & D team's support, which has filled in multiple domestic and foreign technical blanks. Many kinds of products have obtained national and provincial progress prize in science and technology of machinery industry. In 2018, "Goodeng Machine" had honor to get the Chinese Well-Known Trademark, which is the only enterprise to acquire in China's trenchless industry.

[Competitive Advantage]
  1. Competitive Price: We work as the leading dealers of various leading China construction machinery factories, and are treated with best dealership prices every year. From numerous comparisons and feedbacks from clients, our price is more competitive than other factories.
2. Quick Response: Our team is consisted of a group of deligent and enterprising people, working 24hrs/day to respond clients'  inquiries and questions all the time. Most problems can be solved within 12 hours.

[FAQ]

1. What about the warranty time?
    A:12 months after shipment or 2000 working hours,whichever occuts first.
2. What about the delivery time?
    A:20 days after receiving the deposit.
3.What kind terms of payment can be accepted?
    A:On T/T term, 30% down payment is required in advnce, and 70% balance shall be before shipment, or
        against the copy of original BL for old client.
        On L/C term, 100% irrevocable L/C without"soft clause" can be accepted.
4.What logistics ways we can work for shipment?
    A: We can ship machine by sea and road.
