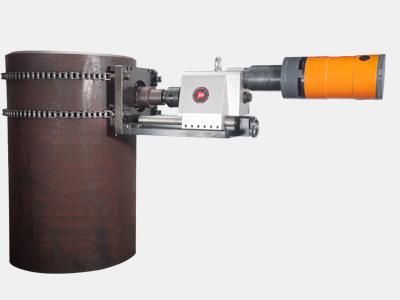

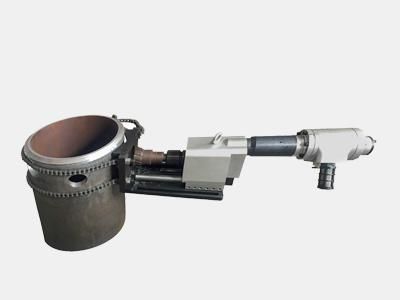

Thick Wall Pipe Tube Pipeline Hole Drilling Machine

Wenzhou Co-Pack Machine Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：6-114mm
  • Drill Hole Depth：5-60mm
  • Bit Type：Drag Bit
  • Drilling Way：Rotary

Base Info

  • Model NO.：ISM TSM
  • Type：Portable
  • Transport Package：Wooden Case , Metal Box (Optional)
  • Trademark：Co-Pack
  • Origin：Wenzhou, China
  • HS Code：8461909000
  • Production Capacity：100 Sets,Year

Description

ModelPipe OD
mmHole Size
mmDrilling Depth
mmPowerElectricISM-170≥Φ1406-1145-602.0KWPneumaticTSM-170≥Φ1406-1145-603HPDifferent drilling tool size drill different hole, please declare before order.
Above parameters just for reference only, not acceptance criteria.

Power Supplies
Electric
Convenient power supply
Stable performance
Popular choice
Electric requirement: 220-230V 1PH 50/60HZ
Power: 2.0KW		Pneumatic
 Explosion proof
Stable performance
Easy to maintenance
Air requirement: 1500-2000L/min @0.63-0.8Mpa
Power: 3HP
Thick Wall Pipe Tube Pipeline Hole Drilling MachineThick Wall Pipe Tube Pipeline Hole Drilling Machine

Tooling
Thick Wall Pipe Tube Pipeline Hole Drilling Machine

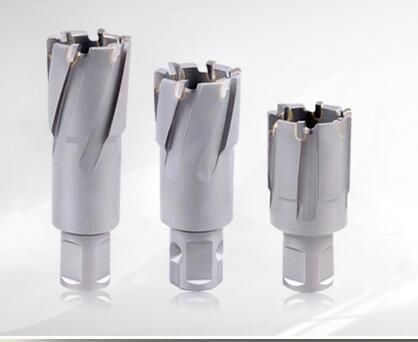

This machine is suitable for most brands of hollow drill.
Please state the specification and material of hole drilling.
