• Model NO.：YN27C
• Weight：27kg
• Frequency：>2450r,Min
• Tank Capacity (Litre)：1.65L
• Max.Drilling Depth (M)：6 Meters
• Shank Size (mm)：Hex 22X108mm
• Overall Dimension(L*W*H)：87cm X 40cm X 35cm
• Transport Package：746*315*229mm
• Specification：746*315*229MM
• Trademark：PRODRILL
• Origin：China
• HS Code：846719000
• Production Capacity：100PCS,Month

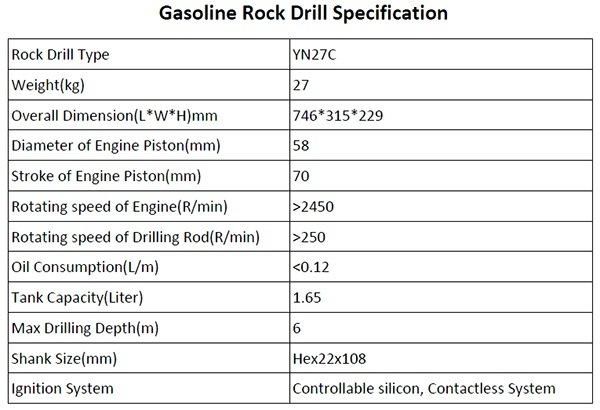

Basic Info.

Model NO. YN27C Weight 27kg Frequency >2450r/Min Tank Capacity (Litre) 1.65L Max.Drilling Depth (M) 6 Meters Shank Size (mm) Hex 22X108mm Overall Dimension(L*W*H) 87cm X 40cm X 35cm Transport Package 746*315*229mm Specification 746*315*229MM Trademark PRODRILL Origin China HS Code 846719000 Production Capacity 100PCS/Month

Product Description

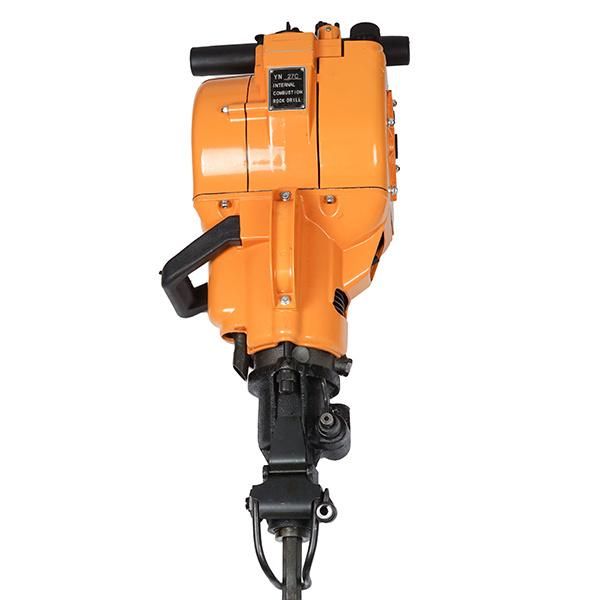

2022 Portable YN27C Gasoline rock drill machine

Rock drilling tools manufacturer ProDrill: YN27C gasoline rock drills or petrol driven rock drill machine is powered by
gasoline engine, without using air compressor, a very efficient machine with the characters that the structure is very
compact, less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is
no water and no electronic power. It is a kind hand held drill built up with gasoline engine, air pump, rock drill and the
rotation plum bum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping
besides rock.

Main Characteristics of YN27C Rock Drill

1. Easy to operate, just turn the handle to make it work.

2.Time and labor saving, drilling fast and high efficiency.

3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain

and plain, extreme temperature (40 to -40).

4.Used to drill vertical downward hole(max depth 6) and and <45° upward hole.

5.Light drilling tools, only 27kg, easy to carry.
