• Model NO.：HW160 HW230
• Drilling Way：Compound
• Type：Crawler

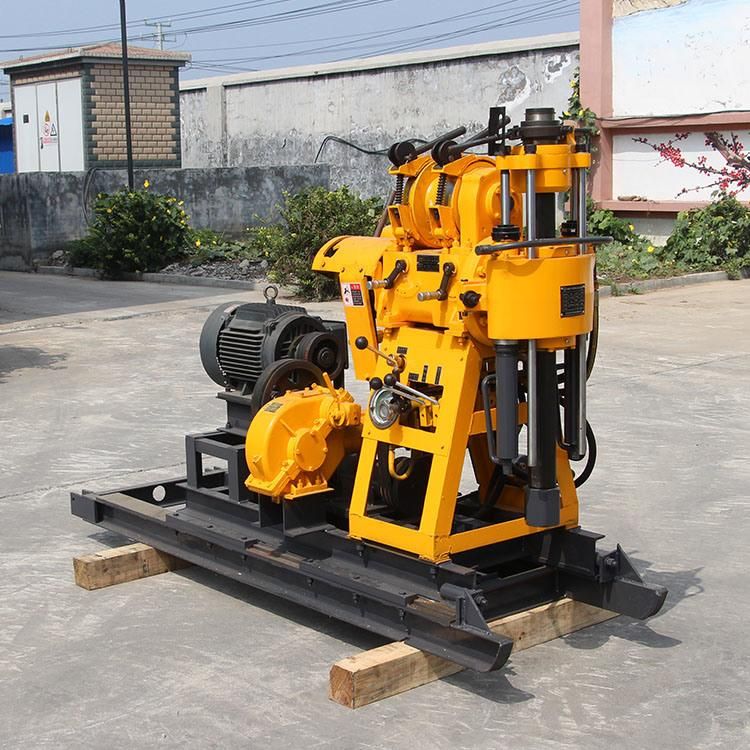

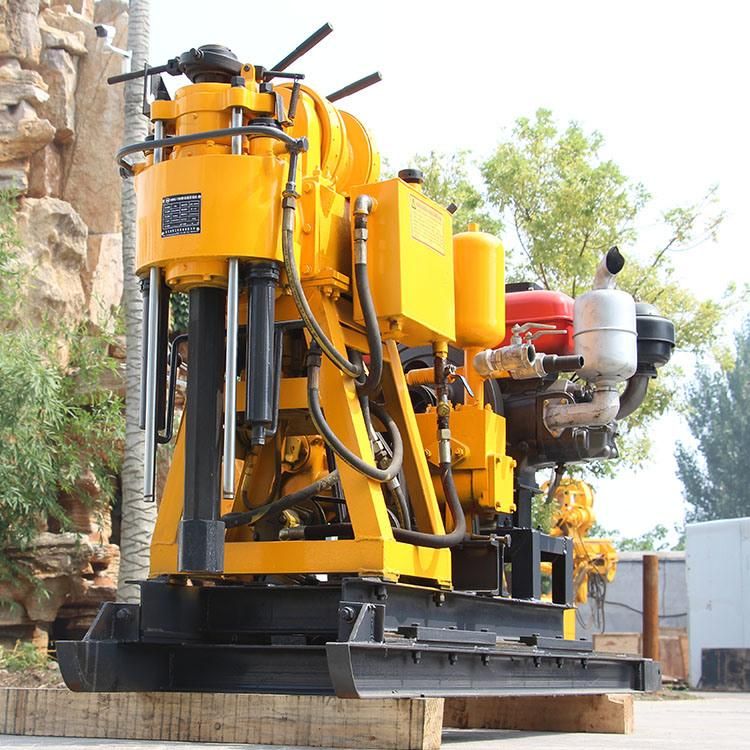

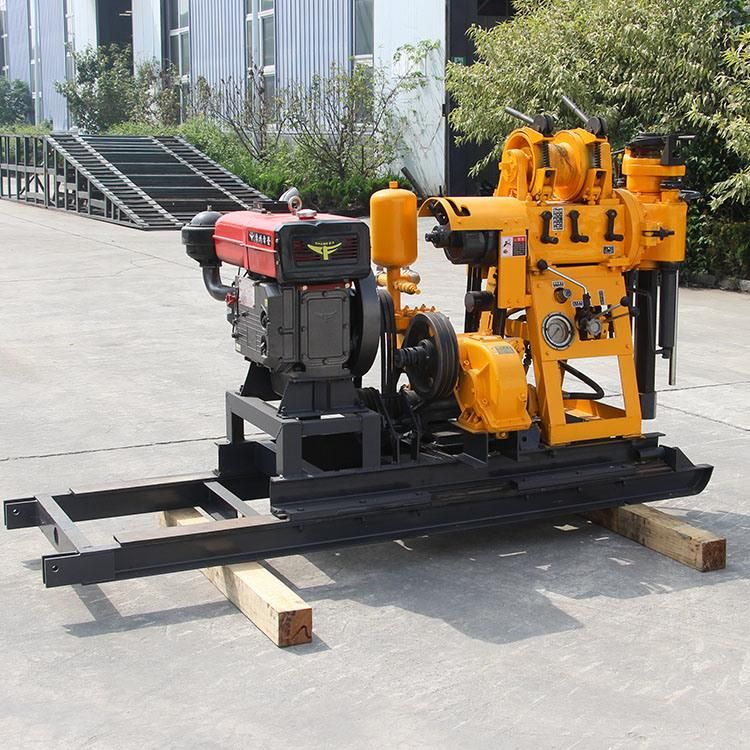

• Product Name：China Factory Mini Water Well Drilling Rig
• Drilling Depth：230m
• Maximum Borehole Caliber：300mm
• Minimum Borehole Caliber：75mm
• Diameter of Drill Pipe：42,50,60mm
• Drilling Angle：90-75
• Weight(Not Include Power)：1600kg
• Unity Machine Dimension：2750*950*1770mm
• Spindle Rotating Speed：64,128,287,557r,Min
• Spindle Stroke：450mm
• Max. Single Line Lifting Capacity：2400kgs
• Reel Lifting Speed：1.64m,S
• Steel Wire Rope Diameter：13mm
• Steel Wire Rope Capacity：35m
• Hug Floodgate Diameter：245mm
• Transport Package：Export Box
• Specification：160m 190m 230m
• Trademark：HW
• Origin：Shandong
• HS Code：8430419000
• Production Capacity：500PCS ,Month

2.Vertical SpindleSpindle rotating speed64/128/287/557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity2400kgReel lifting speed1.64m/sSteel wire rope diameter13mmSteel wire rope capacity35mHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pumpTypeBW-160TypeHorizontal Single Cylinder with double functionMax. DischargeDiesel engine 170L/min  /Electrical Motor 140L/minMax. Pressure3MPaWork Pressure1.5MPa5. PowerDiesel engine22HPElectric Motor15KW 6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheelsDeep Hydraulic borehole water well core drill rigs for sale





China factory mini water well drilling rig shallow well drills

We also produce other models and types. Pls feel free to contact Kelly from any enquiry about the drilling machines.
Deep Hydraulic borehole water well core drill rigs for sale
