• Model NO.：HW160
• Drill Hole Depth：150-200m
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Type：Four-Wheel trailer
• Drilling Depth：160m
• Maximum Borehole Caliber：300mm
• Spindle Stroke：450mm
• Steel Wire Rope Diameter：13mm
• Reel Lifting Speed：1.64m,S
• Steel Wire Rope Capacity：35m
• Movable Distance：400mm
• Work Pressure：1.5MPa
• Diesel Engine：22HP

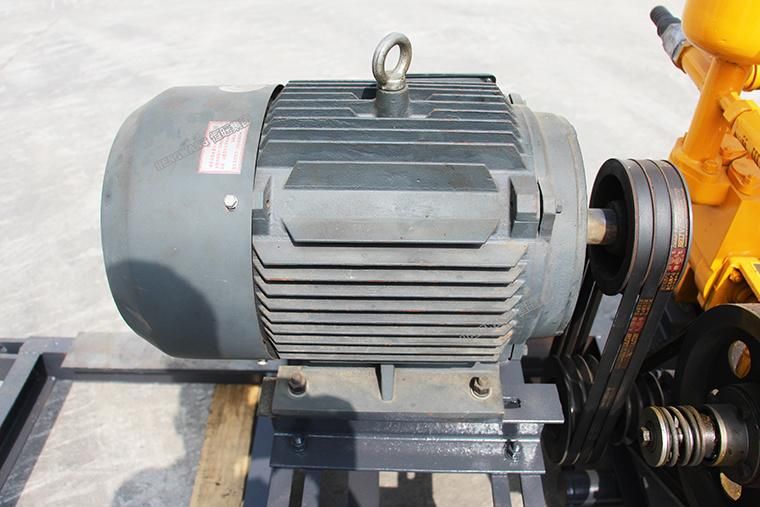

• Electric Motor：15kw
• Control System：Hydrailic
• Unity Machine Dimension：2750*950*1770mm
• Weight(Not Include Power)：1600kg
• Drilling Angle：90~75
• Diameter of Drill Pipe：42,50,60mm
• Transport Package：Wooden Box
• Specification：1600kg
• Trademark：HW
• Origin：Shandong
• Production Capacity：500

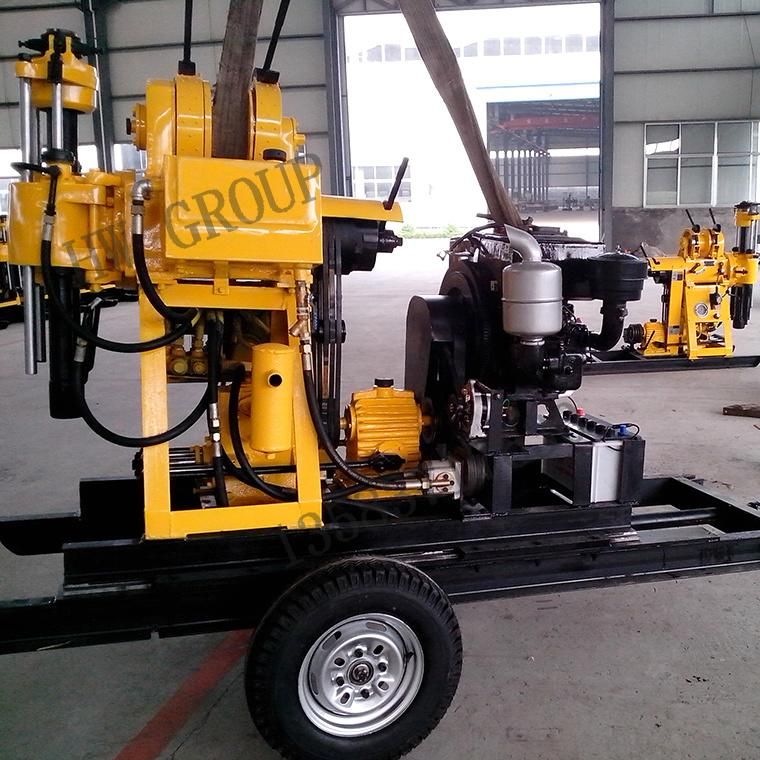

2.Vertical SpindleSpindle rotating speed64/128/287/557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity2400kgReel lifting speed1.64m/sSteel wire rope diameter13mmSteel wire rope capacity35mHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pumpTypeBW-160TypeHorizontal Single Cylinder with double functionMax. DischargeDiesel engine 170L/min  /Electrical Motor 140L/minMax. Pressure3MPaWork Pressure1.5MPa5. PowerDiesel engine22HPElectric Motor15KW 6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheelsDiesel engine hydraulic borehole drilling machine Diamond Core Drilling Rig Pictrures:







Our company for Diesel engine hydraulic borehole drilling machine Diamond Core Drilling Rig
