Hot Sale High Quality Anchoring Drilling Equipment for Highway

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：115-150mm
  • Drill Hole Depth：62m
  • Bit Type：DTH Hammer Bit

Base Info

  • Model NO.：HF140Y
  • Drilling Way：Impactor
  • Wind Pressure：1.2-2.46MPa
  • Air Consumption：10-20m3,Min
  • Drilling Diameter：115-150mm
  • Drilling Depth：Down 62m
  • Once Promotion：3000mm
  • Power：56kw
  • Drill Diameter：76mm
  • Skid Compensation：1200mm
  • Rotary Torque：3100n.M
  • Travelling Speed：0-2.5km,H)
  • Transport Package：Standard Export Package
  • Specification：56kw
  • Trademark：HF
  • Origin：China
  • HS Code：8430490000
  • Production Capacity：20 Sets,Month

Description

Overview Product Description

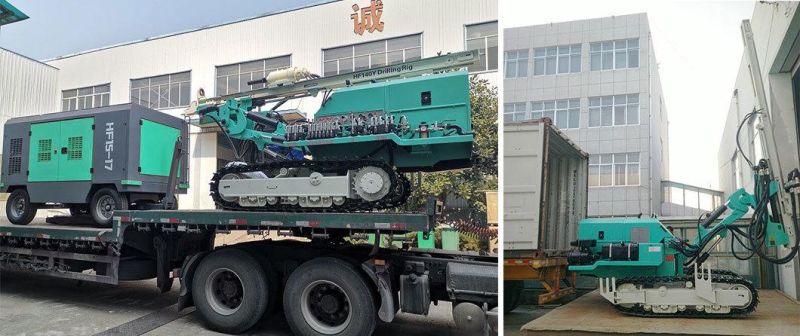

Product Parameters Wind pressure(Mpa)1.2-2.46 Air consumption(m³/min)10--20Drilling diameter(mm) 115---150Drilling depth(m) down 62mOnce promotion distance(mm) 3000Drill diameter(mm) 76Skid compensation(mm) 1200Maximum lift force(N) 26000Guide shell pitch (°) up and down total 100Guide shell swing angle(°) Left and right total 100Boom lift angle(°) up and down total 70Boom swing angle(°) 70Grade ability(°) 30Chassis ground clearance(mm) 300Travelling speed(Km/h) 0-2.5Back to the transit speed(r/min)0--90Rotary torque(N.m) 3100Host Power(kw)56Packaging & Shipping

Hot Sale High Quality Anchoring Drilling Equipment for Highway

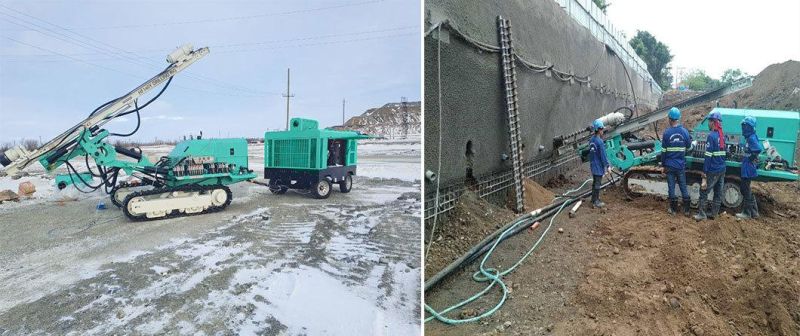

Working Site

Hot Sale High Quality Anchoring Drilling Equipment for Highway

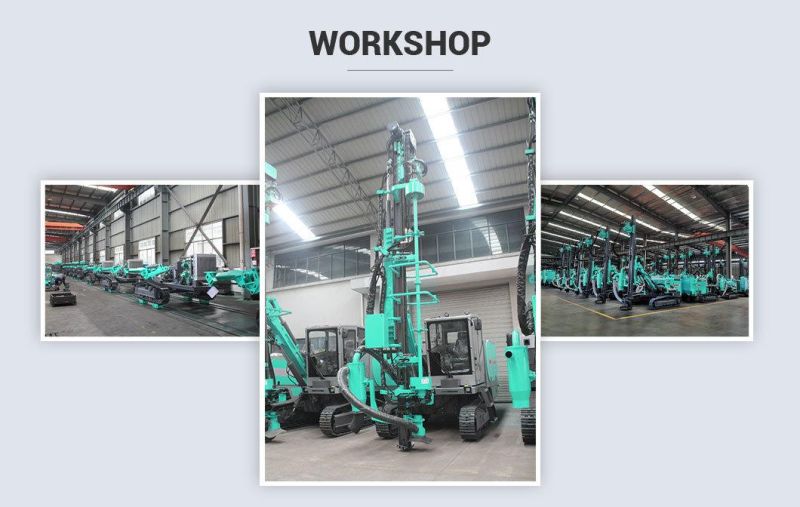

Company Profile

Hot Sale High Quality Anchoring Drilling Equipment for HighwayHot Sale High Quality Anchoring Drilling Equipment for HighwayHot Sale High Quality Anchoring Drilling Equipment for HighwayFAQ

1. Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3. How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4. Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5.What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
