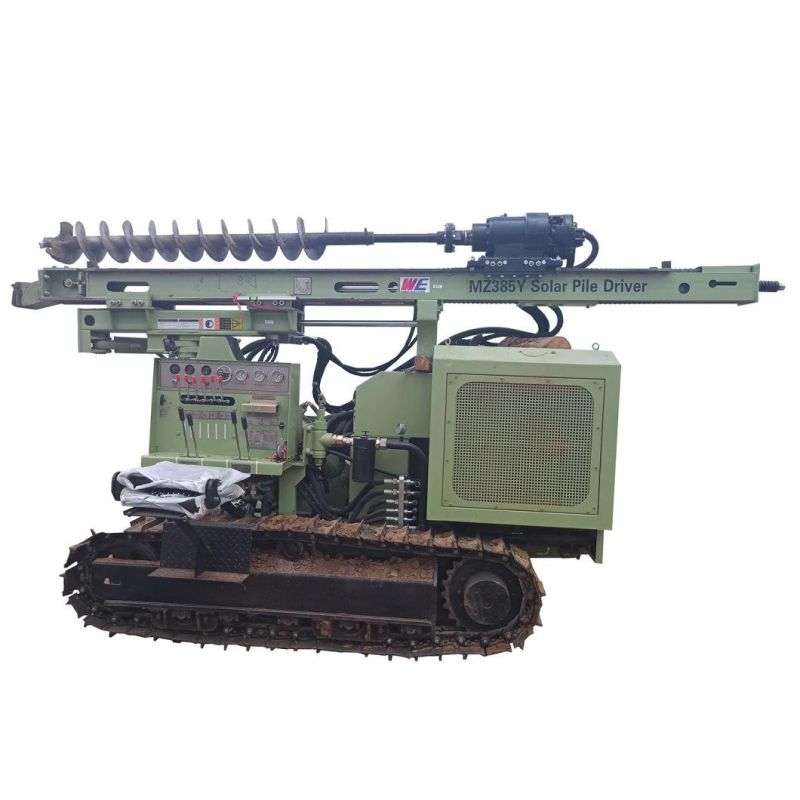

Mz385y Photovoltaic Solar Screw Machine Spiral Pile Drilling Equipment
Taian Longye Import and Export Trade Co., Ltd.- After-sales Service:Available
- Warranty:1 Year
- Certification:CE, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Drill Hole Diameter:>300mm
- Drill Hole Depth:<100m
Base Info
- Model NO.:MZ385Y
- Drilling Way:Rotary
- Bore DTH Diameter:90-350mm
- Bore Depth(M):0-100
- for Rock(F):6-20
- Bore Diameter(Screw)(mm):Max 400
- Bore Depth(Auger):0-30
- Once Promotion(mm):3200
- Host Power(Kw):88
- Climb Ability(Degree):35
- Dimension(L*W*H)mm:5300*1950*2580
- Weight(Kg):5800
- Skid Pitch:120
- Swinging Angle of Skid:Left and Right Total 40
- Boom Swing Angle:Left and Right Total 50
- Rotation Speed:0-110
- for Screw Pile:0-3.7m
- Transport Package:20′ Container
- Specification:5300*1950*2580mm
- Trademark:LongYe
- Origin:Shandong
- HS Code:8430419000
Description
Basic Info.
Model NO. MZ385Y Drilling Way Rotary Bore DTH Diameter 90-350mm Bore Depth(M) 0-100 for Rock(F) 6-20 Bore Diameter(Screw)(mm) Max 400 Bore Depth(Auger) 0-30 Once Promotion(mm) 3200 Host Power(Kw) 88 Climb Ability(Degree) 35 Dimension(L*W*H)mm 5300*1950*2580 Weight(Kg) 5800 Skid Pitch 120 Swinging Angle of Skid Left and Right Total 40 Boom Swing Angle Left and Right Total 50 Rotation Speed 0-110 for Screw Pile 0-3.7m Transport Package 20′ Container Specification 5300*1950*2580mm Trademark LongYe Origin Shandong HS Code 8430419000Product Description
We Taian Longye Import And Export Trade Co.,Ltd is an integrated set of manufacturing and export company with ShanDong LongYe Machinery Co.,Ltd, we are Mining Drilling rig, Water well drilling rig, Foundation drilling rig, Solar project piling machines manufacturer that cover more than 60% in Chinese solar market, and we exported to Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60 countries...Technical parameters

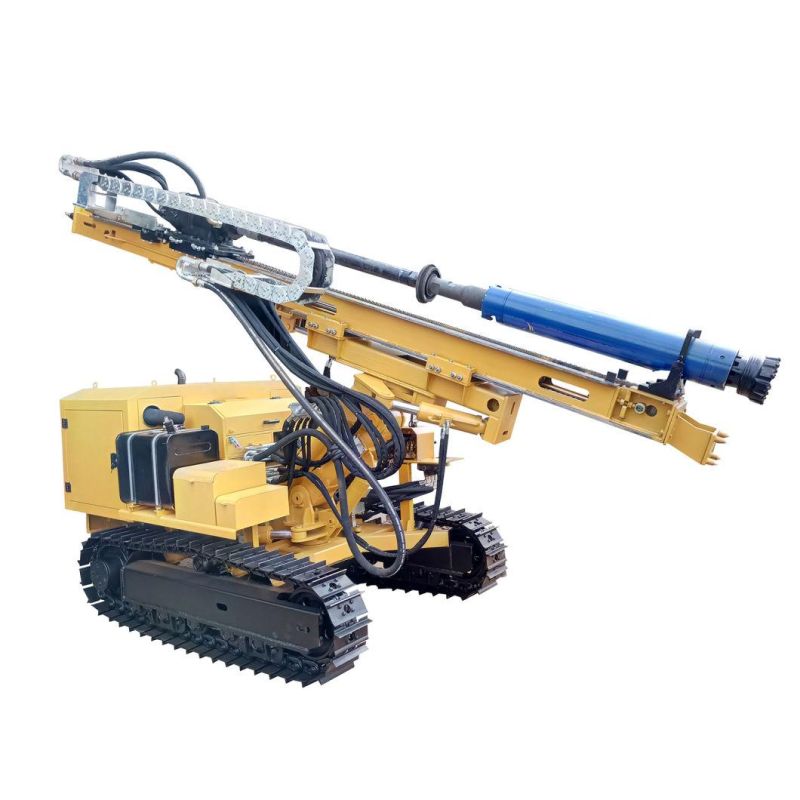

- Drill maximum 3.7m long ground screw piles.
- Drill 130-400mm diameter auger spiral soil holes.
- Drill 90-350mm diameter DTH stone rocky ground holes .
- Working on flat ground or maximum 25 degree slope ground
Bore diameter(DTH hammer)(mm) | 90-300 |
Bore depth(m) | 20-100 |
Air consumption(m³/min) | 10-26 |
Air pressure(Mpa) | 0.7-1.6(medium);1.6-2.46(high) |
Pipe diameter(mm) | 76/89 |
For rock(F) | 6-20 |
Bore diameter(screw)(mm) | Max 400 |
Bore depth(m) | 0-30 |
Screw pipe diameter(mm) | 130-400 |
Once promotion(mm) | 3200 |
Skid pitch(°) | 120 |
Swinging angle of skid(°) | Left and right total 40 |
Boom swing angle(°) | Left and right total 50 |
Rotation speed(r/min) | 0-110 |
Host power(kw) | 84 |
Climb ability(°) | 35 |
Dimension(L*W*H)(mm) | 5300*1950*2580 |
Weight(kg) | 5800 |
Walk speed(km/h) | 0-2.5 |
Remark:
1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.
2. The time of delivery: Deliver the products within 2 days after receiving the total price.
3. The quotation validity date:40 days; Machine manufacturing time: 5-7 days;
4. Loading: 1 set machine uses 1*40 feet high container; 1*40 feet high container for maximum 2 sets.
....................................................................................................... .
R F Q
Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

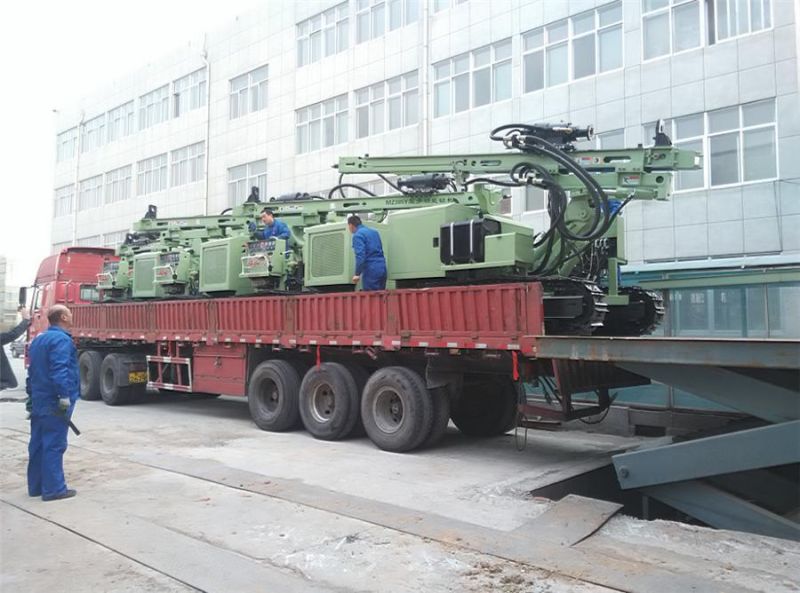

Q3: What about the shipments and package?
A: 40' container
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
We are factory manufacturer, and we have our own export license .
