• Model NO.：XJ70
• Drill Hole Depth：2000m Above
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Transport Package：by Bulk
• Specification：14000*3500*3100
• Trademark：BEYOND
• Origin：China
• HS Code：8431431000
• Production Capacity：1000 , Year

Basic Info.

Model NO. XJ70 Drill Hole Depth 2000m Above Bit Type Diamond Bit Drilling Way Rotary Transport Package by Bulk Specification 14000*3500*3100 Trademark BEYOND Origin China HS Code 8431431000 Production Capacity 1000 / Year

Product Description

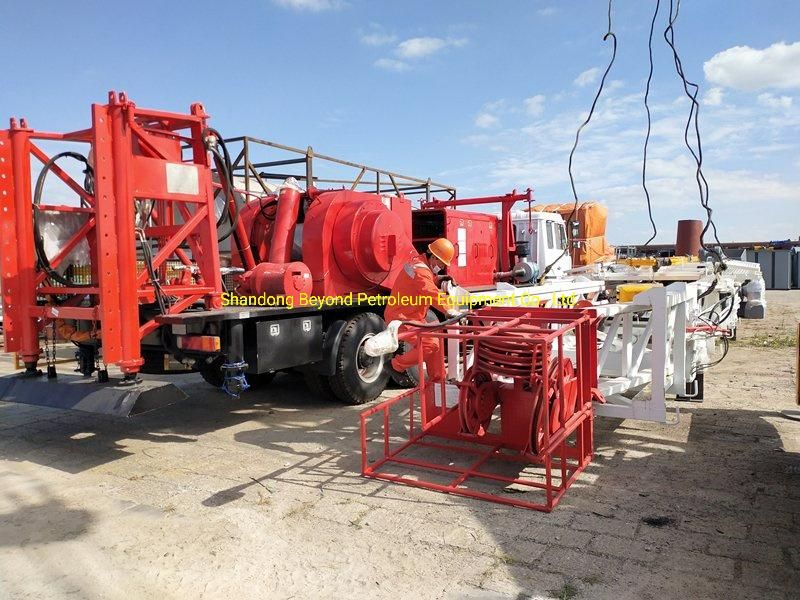

Rig Description:XJ70J workover rig is truck-mounted rig. Rated load is 400KN, Max load is 675kN, mast height is 23.5m, It can be divided two parts: self-propelled chassis, drive mode is 6×6, working device on deck is used for workover service.Power system: high speed diesel engine, hydraulic and mechanical transfer substructure, Cummins ISLe 340 40 diesel engine and the performance is perfect, with BY352 hydraulic transmission box.
Mast assembly is double sections, raising,lowering and telescopic by hydraulic cylinders. The inclined angle of the mast is 5 °s, which can be adjusted by screw rod; The crown block is box style frame, the pulleys are dynamic equilibrium tested; Besides, rope- block board is set in the pulley seat to avoid bouncing.
Drawworks assembly: single-drum, max fast line pull is 140kN, belt brake structure.Hydraulic and pneumatic control system: hydraulic oil pump and control valve of drum are western models, change valve adopts pneumatic and manual control structure, easy operation and pipeline.
 Technical specificaiton:
 1)  Workover depth: 2000( 6560FT 2-7/8″ DP) 2)  Rated hook load(kN) : 6753)   Max. hook load(kN):  400 4)  Rated power of engine(hp) :  221KW/300HP5)  Height of mast : 18M (59FT)6)  Traveling system : 4×3 7)   Dia. Of wire line(mm) : φ22

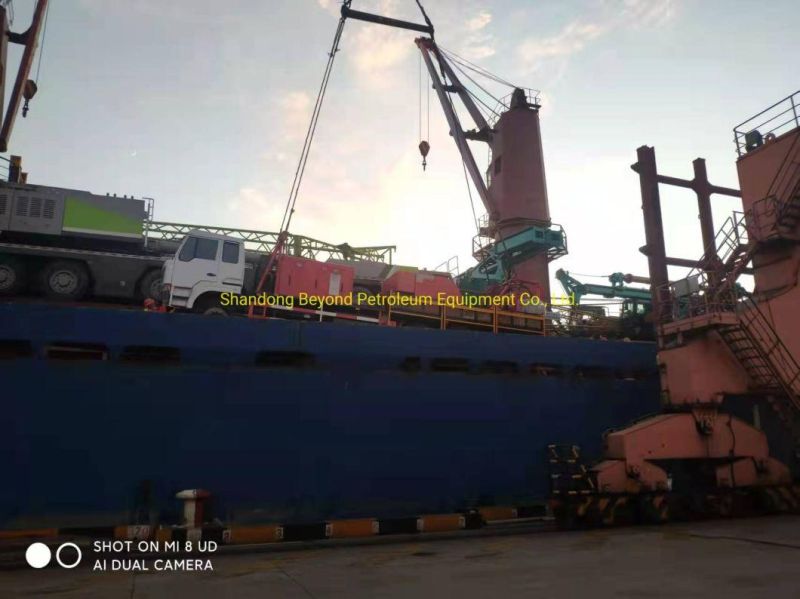

Shipping & Packing:

Our Clients:

FAQ:
1, Are you a trading company or manufacturer?
We are a professional purchase agent for our long-term clients with 10 years experience, and our products have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world.

2, How about your machine quality?
API, ISO9001 certified, All of our machines must pass a great number of strict testing in order to offer the best quality to our customers.

3, Do you have an after-sale service?
Yes, we provide an overseas after-sale service team that will offer you the best technical maintenance guidance, and now online technical support is a necessity.

5, What about the quality warranty?
We offer a one-year quality warranty mainly for the main mud pump, but for the small wearing parts around 6 months. We provide one-year spares when delivering the mud pump.

6, How long can you deliver the machine?
Generally, parts mainly have at stock, pumps we can delivery in 20 working days.
