Efficient Multifunctional Drilling Equipment Crawler Water Well Drilling Rig for Sales
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：Support
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：150-200mm
Base Info
- Model NO.：160
- Drill Hole Depth：150-200m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Type：Crawler
- Name：Crawler Pneumatic Rock Drilling Machine
- Drill Diameter：138-203
- Drill Depth：160m
- Geology：Rock
- Once Promotion Distance：1000mm
- Drill Pipe：Dia.76mm Dia.89
- Drill Pipe Length：2m,PC
- Rotary Torque：4500n.M
- Weight：2600kg
- Drill Pipe Diameter(mm)：76,89
- Drill Pipe Length(M)：1.0,1.5,2.0
- Lifting Force(T)：12
- Rotating Speed(Rpm)：50-110
- Rotary Torque(N.M)：7800

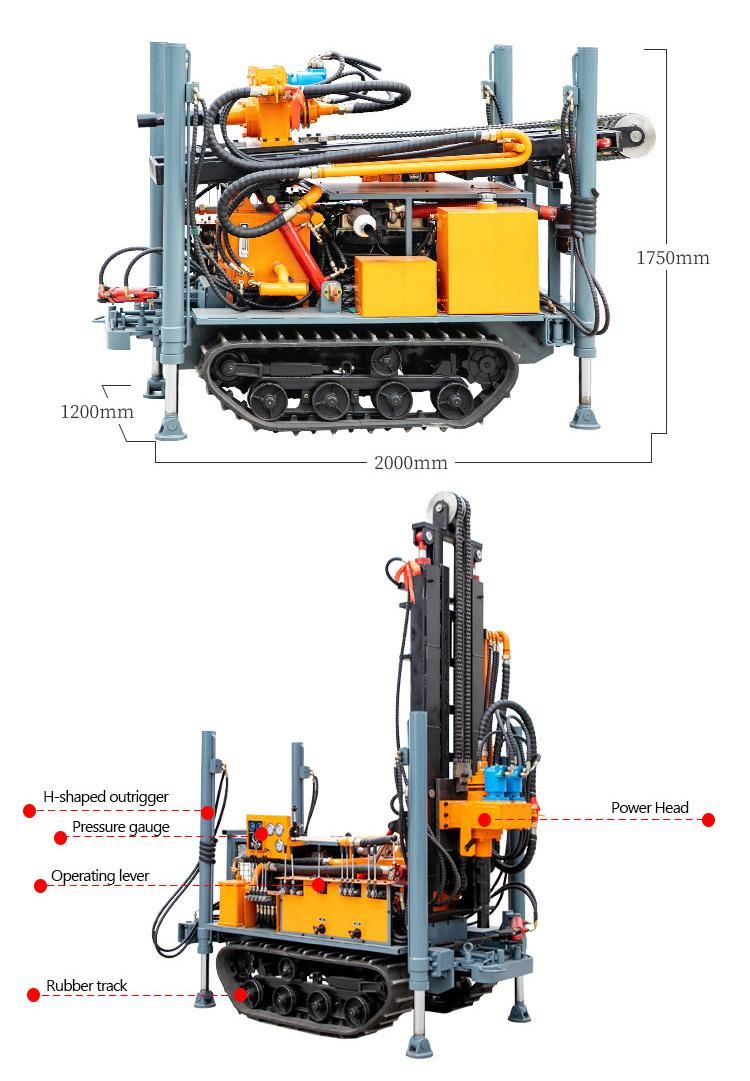

- Dimensions：2300*1200*1900
- Transport Package：Container
- Specification：2300*1200*1900
- Trademark：HW
- Origin：Shandong, China
- HS Code：8430691900
- Production Capacity：500 Sets Per Month
Description
Product DescriptionDetailed Images

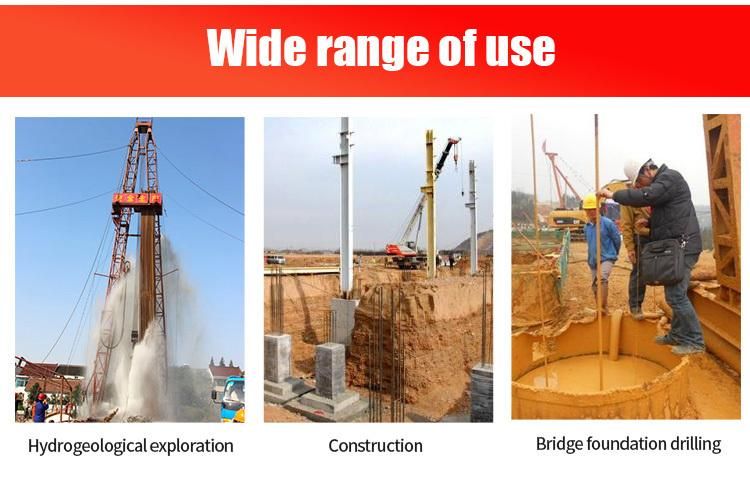

This machine can be applied to various strata, used in water well engineering, geothermal well, anchor pile hole and so on, and can be used with follow-pipe drilling.

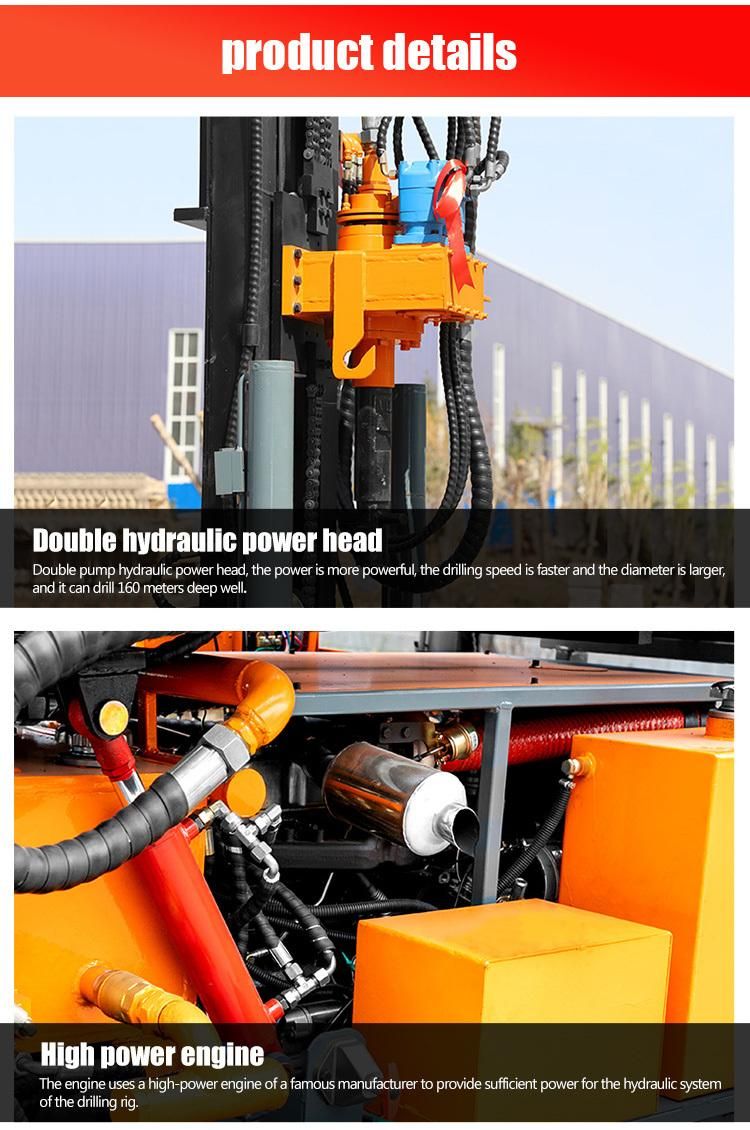

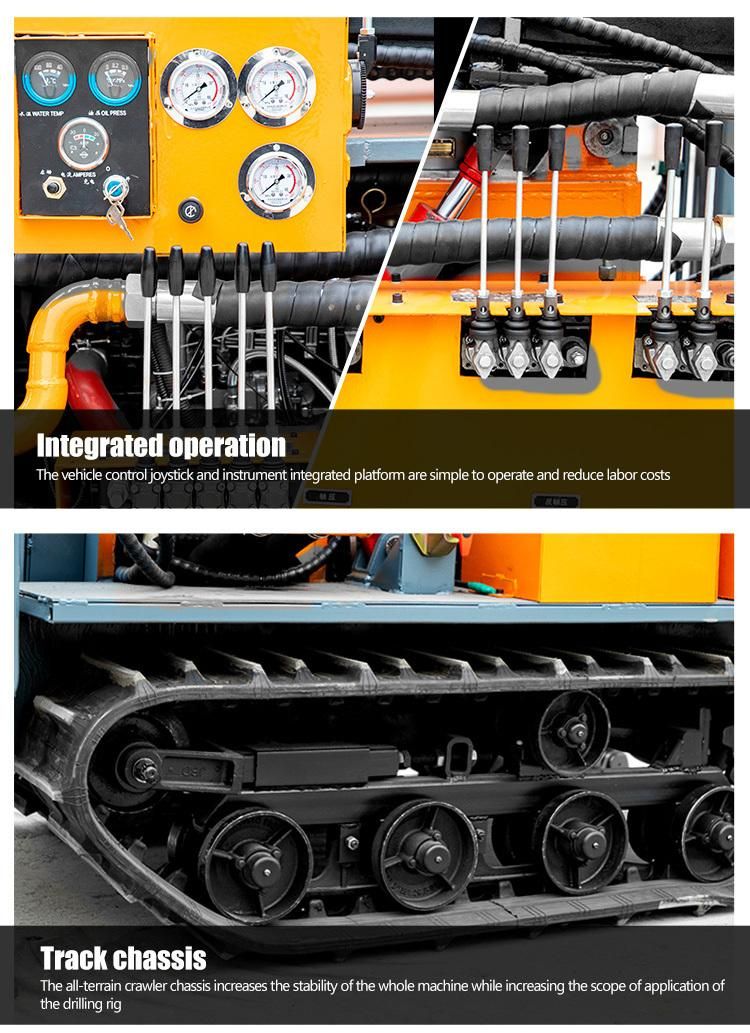

It has the advantages of whole machine hydraulic control, automatic loading and unloading drill pipe, crawler type chassis, large horsepower diesel engine, four hydraulic support leg balance, stronger terrain application ability and so on.
Pneumatic dth air water well drilling rig machine mainly drilling rock . it also can add mud pump to finish mud pump drilling,mainly used in rock mountain and plain area .
Packing & DeliveryOur CompanyShandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
Our company produces the piling machinery a total of 10 major series more than 20 varieties,water well driling rig machine,Construction machinery and other hydraulic products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.
