• Model NO.：C105
• Origin：Puyang Henan
• Production Capacity：100

Basic Info.

Model NO. C105 Origin Puyang Henan Production Capacity 100

Product Description

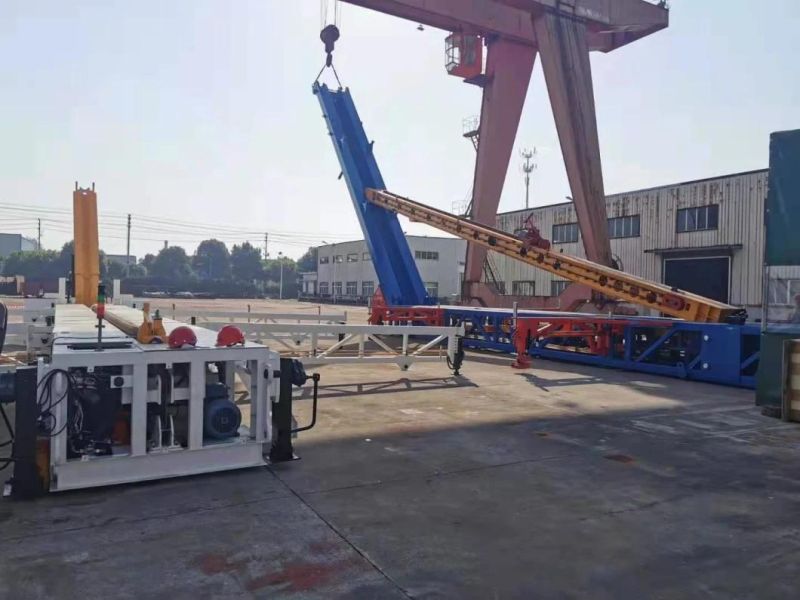

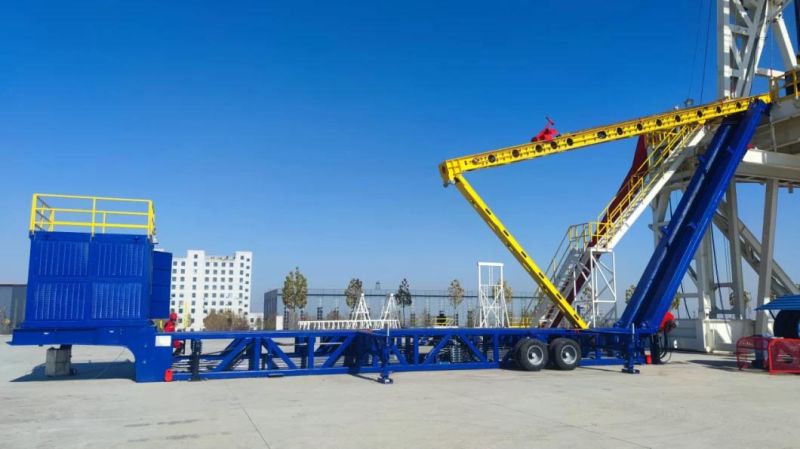

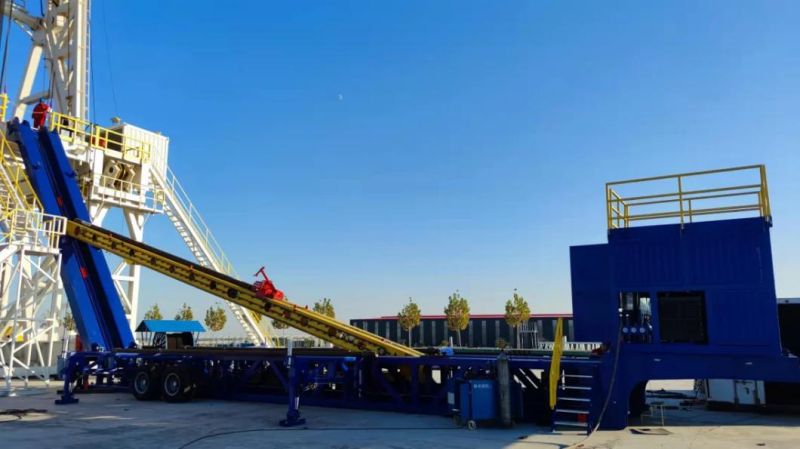

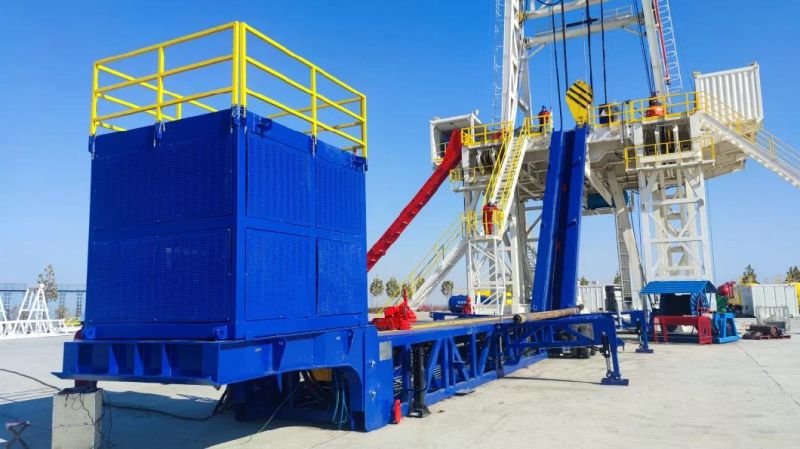

                                                                                    Power Catwalk

No	Item	Parameter
1	Drilling Pipe	3 1/2"-6 5/8"
2	Drilling Collar	≤10"
3	Casing	≤20
4	Substructure Height	9-10.5m(39.3-41')
5	Pipe Length	≤13.7m(45)
6	Pipe Rack.Height	1200mm
7	Load	≤4.5t
8	Pressure	21MPa
9	Oil Tank Volume	10L
10	Rated Voltage	380V/50Hz
11	Power	≤100kW
12	King Pn	90#(3 1/2")
13	Sade Load	12t
14	Drive Speed	Max 20km/h
15	Tyre Pressure	800kPa/16PSI
16	Tyre Qty;	8
17	Tail Light Plug	7 Pole/24V(ISO1185)
18	Control Mode	Wireless Remote/Drill floor Console
19	Remote Radius.	80m
20	Ambient temperature	0ºC~+55ºC
21	Transport Dim	19.520×4.5x5.25m
22	Total.weight	40500kg
