200m 100m Borehole Drilling Machine Drilling Rig for Water Well

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：100-150mm
  • Drill Hole Depth：100-150m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HW160 HW230
  • Drilling Way：Compound
  • Type：Crawler
  • Product Name：China Factory Mini Water Well Drilling Rig
  • Drilling Depth：230m
  • Maximum Borehole Caliber：300mm
  • Minimum Borehole Caliber：75mm
  • Diameter of Drill Pipe：42,50,60mm
  • Drilling Angle：90-75
  • Weight(Not Include Power)：1600kg
  • Unity Machine Dimension：2750*950*1770mm
  • Spindle Rotating Speed：64,128,287,557r,Min
  • Spindle Stroke：450mm
  • Max. Single Line Lifting Capacity：2400kgs
  • Reel Lifting Speed：1.64m,S
  • Steel Wire Rope Diameter：13mm
  • Steel Wire Rope Capacity：35m
  • Hug Floodgate Diameter：245mm
  • Transport Package：Export Box
  • Specification：160m 190m 230m
  • Trademark：HW
  • Origin：Shandong
  • HS Code：8430419000
  • Production Capacity：500PCS ,Month

Description

2.Vertical SpindleSpindle rotating speed64/128/287/557r/minSpindle stroke450mm3.HoistMax. single line lifting capacity2400kgReel lifting speed1.64m/sSteel wire rope diameter13mmSteel wire rope capacity35mHug floodgate diameter245mmHug floodgate belt width70mmMovable distance400mm4. Mud pumpTypeBW-160TypeHorizontal Single Cylinder with double functionMax. DischargeDiesel engine 170L/min  /Electrical Motor 140L/minMax. Pressure3MPaWork Pressure1.5MPa5. PowerDiesel engine22HPElectric Motor15KW 6. Drilling towerTypeIntegrated on drilling rigControl systemHydraulic7. Trailer chassisType4 wheelsChina factory mini water well drilling rig shallow well drills Pictrures:

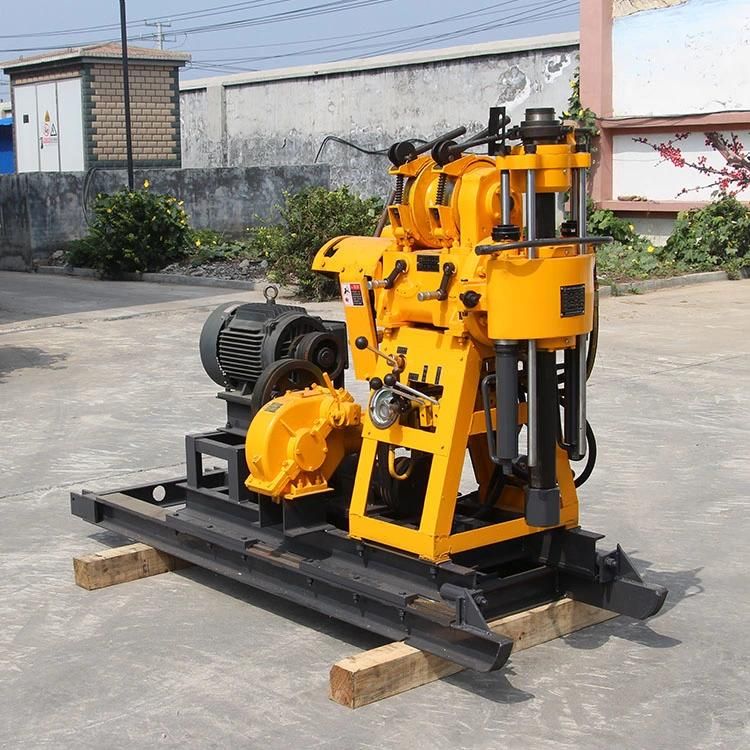

200m 100m Borehole Drilling Machine Drilling Rig for Water Well

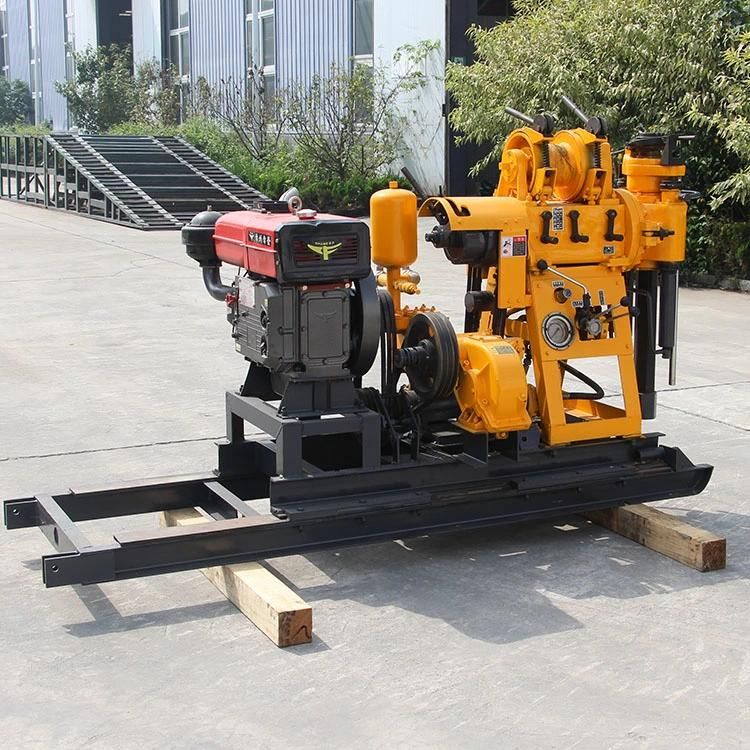

200m 100m Borehole Drilling Machine Drilling Rig for Water Well

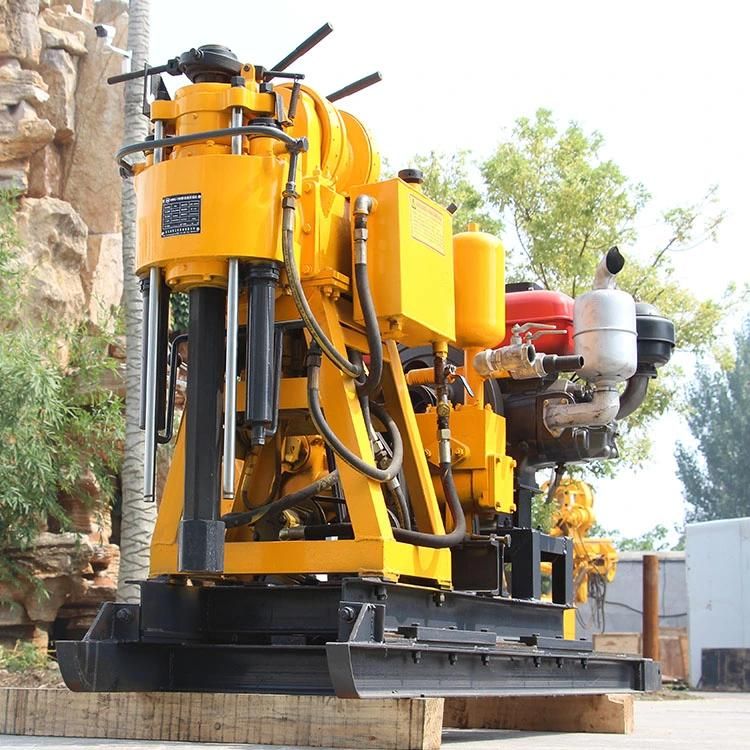

200m 100m Borehole Drilling Machine Drilling Rig for Water Well
China factory mini water well drilling rig shallow well drills
200m 100m Borehole Drilling Machine Drilling Rig for Water Well
200m 100m Borehole Drilling Machine Drilling Rig for Water Well
FAQ

Q1. What is your terms of payment?
Ans.: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and
packages before you pay the balance.


Q2. What is your terms of delivery?
Ans.: EXW, FOB, CFR, CIF.

Q3. How about your delivery time?
Ans.: Generally, it will take 7 -10 working days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.

Q4. What is the warranty of our machine?
Ans.:Our main machine enjoys a 1 year warranty, during this time all accessories
broken can be changed for a new one. And we provide videos for machine install and operation.

Q5. What is your terms of packing?
Ans.: Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

Q6.Do you have any certificates for your machine?
Ans.: All of our produ c ts coming with the certificates of CE, ISO9001.
