• Model NO.：YN27C
• Weight：27kg
• Frequency：>2450r,Min
• Tank Capacity (Litre)：1.65L
• Max.Drilling Depth (M)：6 Meters
• Shank Size (mm)：Hex 22X108mm
• Overall Dimension(L*W*H)：87cm X 40cm X 35cm
• Transport Package：87cm X 40cm X 35cm
• Specification：746*315*229MM
• Trademark：PRODRILL
• Origin：China
• HS Code：846719000
• Production Capacity：100PCS,Month

Basic Info.

Model NO. YN27C Weight 27kg Frequency >2450r/Min Tank Capacity (Litre) 1.65L Max.Drilling Depth (M) 6 Meters Shank Size (mm) Hex 22X108mm Overall Dimension(L*W*H) 87cm X 40cm X 35cm Transport Package 87cm X 40cm X 35cm Specification 746*315*229MM Trademark PRODRILL Origin China HS Code 846719000 Production Capacity 100PCS/Month

Product Description

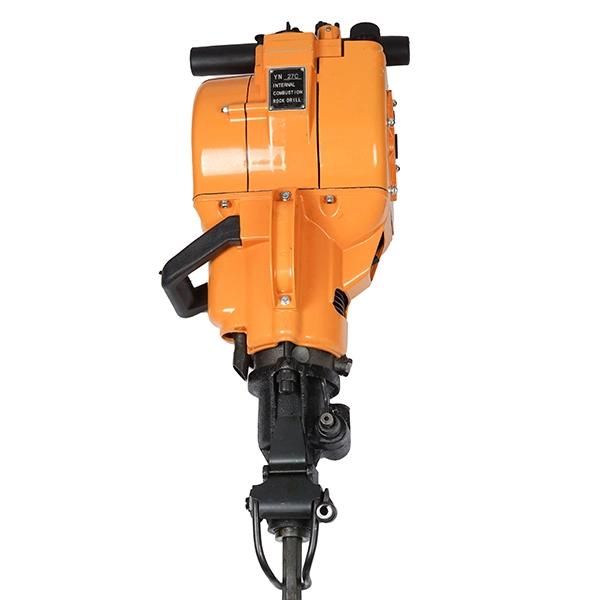

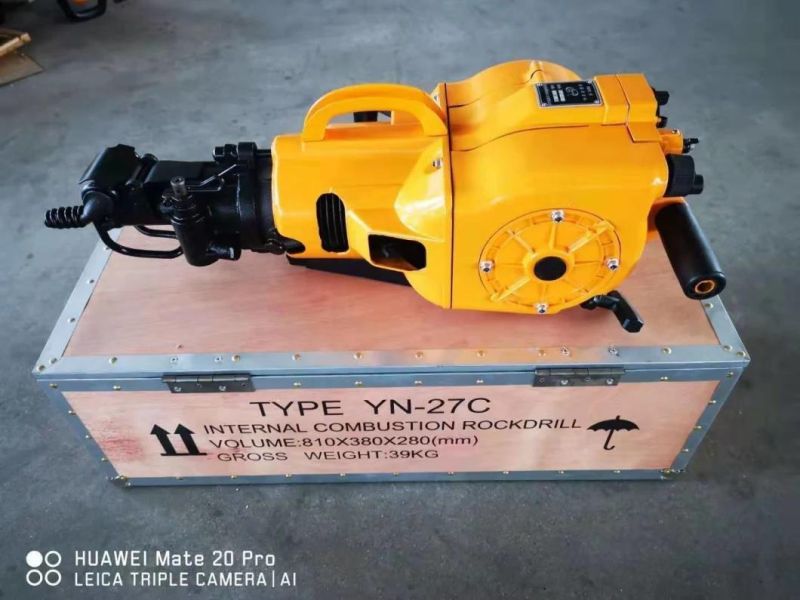

Hand held gasoline rock drill YN27C jack hammere

Rock drilling tools manufacturer ProDrill: YN27C gasoline rock drills or petrol driven rock drill machine is powered by gasoline engine, without using air compressor, a very efficient machine with the characters that the structure is very compact, less of the-easy-to-damage-parts, and very easy to control. It can adapt to these outside situations there is no water and no electronic power. It is a kind hand held drill built up with gasoline engine, air pump, rock drill and the rotation plum bum equipment for running or stop. It can be used as a tool for breaking, percussive drilling, tamping besides rock.

1.Engine:
The engine is a hand-operated,single cylinder and two stroke petrol engine with air cooling,reflux airconversion,no contact ignition,and no floating-type carburetor.It is composed of control parts,starter parts,oil tank parts,flywheel parts,crankshaft,connecting rod,crankshaft case parts,magneto parts,and piston parts and cylinder parts.

2.Air Compressor:
The engine piston and hammer piston are mounted separately in the upper and lower place of the cylinder.These two pistons move up and down synchronously.The hammer piston and the bigger bore of the cylinder forma compression chamber,which together with air inlet and outlet valves and ventilator valves,form the air compressor.It is composed of hammer piston parts and cylinder parts.

3.Rock drill:
It is composed of hammer piston parts,rotation mechanism parts,drill shank housing parts.

Main Characteristics of YN27C Rock Drill

1. Easy to operate, just turn the handle to make it work.

2.Time and labor saving, drilling fast and high efficiency.

3. First-class level drilling tools, suitable for site without power or pressure equipment, it has wide adaptability for high mountain

and plain, extreme temperature (40 to -40).

4.Used to drill vertical downward hole(max depth 6) and and <45° upward hole.

5.Light drilling tools, only 27kg, easy to carry.
