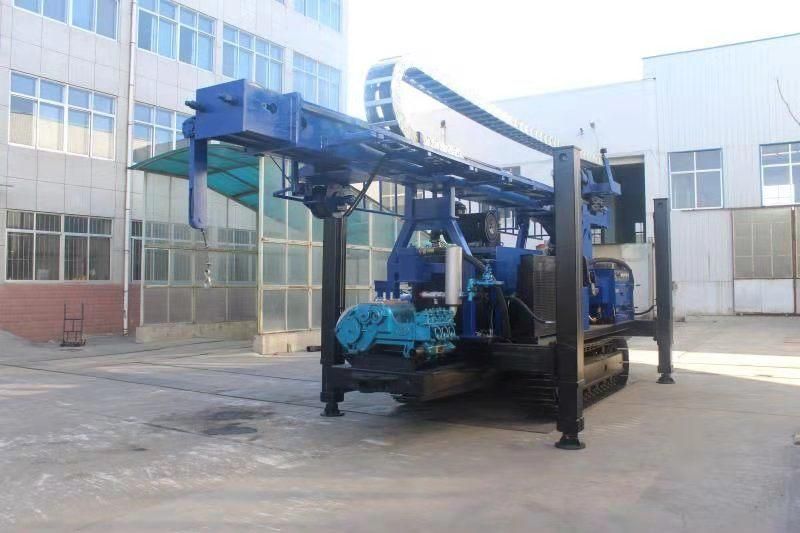

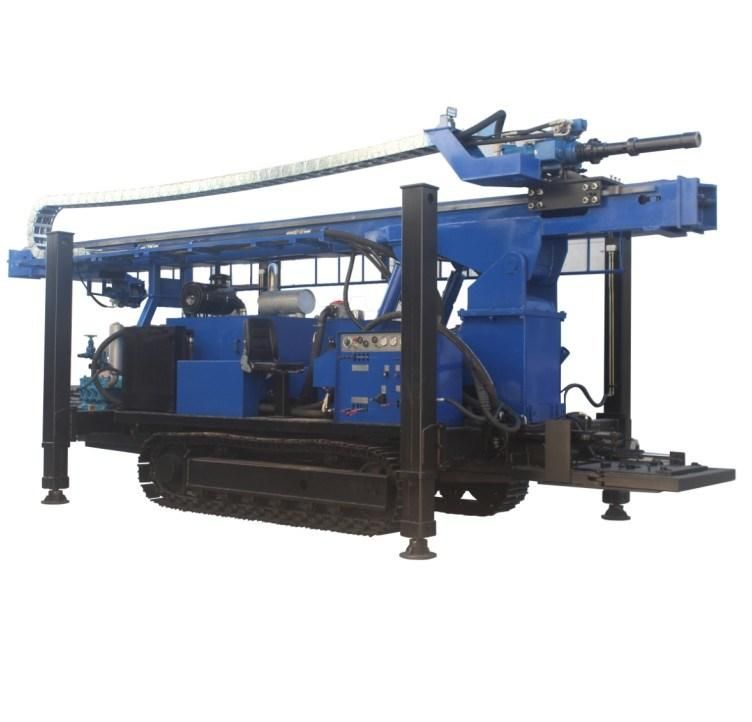

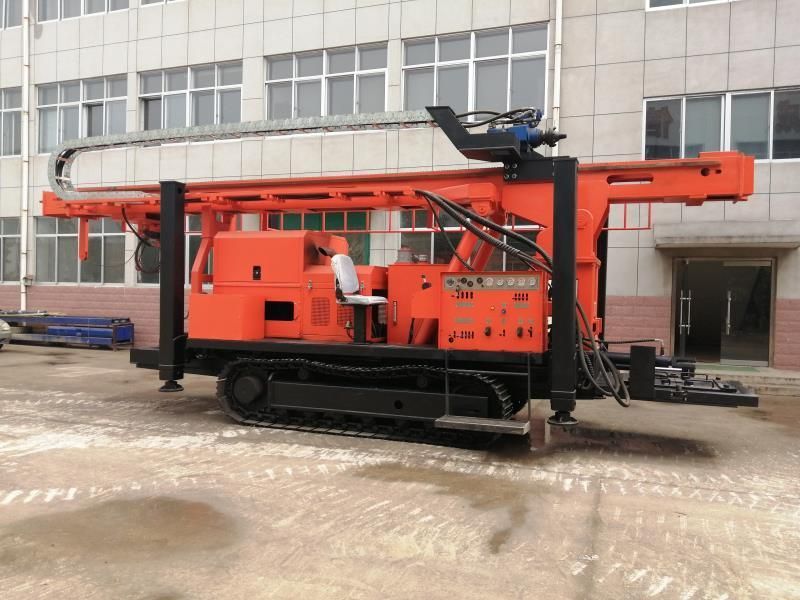

Sly650 Drill Depth 400m 500m 600m 650m Deep Water Well Drilling Rig Machine Manufacturer Price
Taian Longye Import and Export Trade Co., Ltd.- After-sales Service:Available
- Warranty:1 Yeaar
- Certification:CE, ISO 9001:2000, ISO 9001:2008
- Condition:New
- Drill Hole Diameter:105-1000mm
- Drill Hole Depth:650m
Base Info
- Model NO.:SLY650
- Bit Type:Cone Bit
- Drilling Way:Rotary
- Type:Crawler
- Specification:9300*2100*3800mm
- Trademark:LongYe
- Origin:Shandong, China
- HS Code:8430419000
- Production Capacity:30 Sets,M
Description
Technical parameters
Maximum bore depth(m)
650
Bore diameter(mm)
105-800
Air pressure(Mpa)
1.05-3.4
Air condumption(m³/min)
14-60
Drilling rod length(m)
3/4.5/6
Drilling rod diameter(mm)
89/102
Axial pressure
16T
Lifting power
26T
Max rotary torque(NM)
13000
Rotation speed(r/min)
100/60
Rod unloading method
Semi-automatic loading(unloading) by hydraulic cylinder
Truck loading method
Loading on truck by high hydraulic legs
Weight (T)
16.6
Dimension(mm)
9300*2100*3800
Optional device
Whole reverse cycle system, generator, foam pump, mud pump, dismantling DTH hammer device
For drilling geological conditions
Sand, soil, and various hardness rock layers
Drilling method
Direct / Reverse Circulation (Optional), Mud Pump, DTH












1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.
2. The time of delivery: Deliver the products within 2 days after receiving the total price.
3. The quotation validity date:40 days; Machine manufacturing time: 30 days;
