• Model NO.：150m
• Bit Type：Drag Bit
• Drilling Way：Rotary
• Type：Crawler
• Drill Hole Depth(M)：180
• The Hole Diameter(mm)：350-1800
• Spindle Speed(R/Min)：11
• Spindle Power(Kw)：11
• The Spindle Torque：12000
• Model：Hf-150
• Hoist Lifting Force(Kg)：3000*6
• Traffic(M3/H)：300
• Power(Kw)：22
• The Rated Voltage(V)：380
• Rated Current(a)：90
• Rated Speed(R/Min)：1500
• Rated Power(Kw)：50
• Main Power Supporting Power：4105-6105diesel
• Overall Dimensions(L x W x H)(mm)：9200*2500*500
• Transport Package：Load in Container
• Specification：9200× 2500× 3500
• Trademark：Hengwang
• Origin：Shandong
• Production Capacity：500set,Year

Model

HF-150

Drill hole depth(m)

≤180

The hole diameter(mm)

350-1800

Spindle speed(r/min)

11

Spindle power(kw)

11

The spindle torque(N•m)

12000

Hoist lifting force(kg)

3000×6

Mud pump

Traffic(m³/h)

300

Power(kw)

22

Generating set

The rated voltage(V)

380

Rated current(A)

90

Rated speed(r/min)

1500

Rated power(kw)

50

Main power supporting power

4105-6105 Diesel

Overall dimensions(L x W x H)(mm)

9200×2500×3500

Single weight(kg)

12000

Customer Feedback

Company Profile

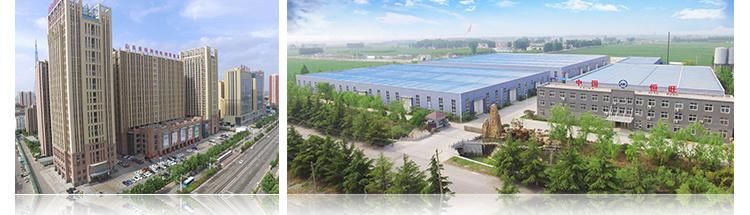

Jining Hengwang Mining Machinery Co., Ltd. which belong to Shandong Hengwang Group Co., Ltd., is located in Shiqiao Industrial Park, Jining City, Shandong Province, China. Our Group occupies an area of about 40,000 square meters.It is a comprehensive enterprise integrating piling and drilling rig design, manufacture and installation.

 FAQ
1) ,What is your terms of payment?
TIT 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packages before you pay the balance.

2), What is your terms of delivery?
EXW, FOB, CFR, CIF.

3),How about your delivery time?
Generally, it will take 7-10 working days after receiving you advance payment The specific delivery time depends on the items and the quantity of your order

4),What is the warranty of our machine?
Our main machine enjoys a?1 year warranty(except for the hammer). during this time all accessories broken can be changed for a?new one And we provide videos for machine install and operation.

5), What is your terms of packing?
Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.

6),Do you test all your goods before delivery?
Yes, we have 100% test before delivery.And we will attach our inspect report for every machine.

7),Do you Preferred provide wear parts for transacted clients?
Yes, we have records for your clients, and will prefer providing accessories to clients.

8)How do you make our business long-term and good relationship?
1 We keep good quality and competitive price to ensure our customers benefits;
2 We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.

9), Do you have any certificates for your machine?
All of our products coming with the certificates of CE, S09001.
