Pneumatic Type 150m Water Well Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：130-294mm
  • Drill Hole Depth：220m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：HW-220L
  • Drilling Way：Impactor
  • Type：Crawler
  • Name：Crawler Pneumatic Rock Drilling Machine
  • Drill Diameter：130-294 mm
  • Drill Depth：220m
  • Geology：Rock
  • Once Promotion Distance：3000mm,6000
  • Drill Pipe：Dia.76mm Dia.89 Dia.102
  • Drill Pipe Length：3m
  • Rotary Torque：4200-5600 N.M
  • Weight：4200kg
  • Transport Package：Container
  • Specification：3800*1700*2350
  • Trademark：Hengwang
  • Origin：Shandong, China
  • HS Code：8430691900
  • Production Capacity：500 Sets Per Month

Description

3800*1700*2350



pneumatic water well drilling rig machine

Advantage :
1.Diesel engine use Yunnei diesel engine.
2.Walking device:walking motor with reducer ,long service life.
3.Hydraulic oil pump : parallel type gear box ,Oil pump monomer separation ,enough power supply.
4.Power head unit:gear box cast in one piece,two motor offer power,have big torque
5. chassis:Professional excavator chassis,big weight bearing capacity ,wide chain plate have small injure to road surface.have rubber and steel crawler .
6.lifting force :Composite arm have small volume ,long stroke.two oil cylinder lifting have big lifting forceThe drilling rig mainly adopts mechanical transmission, the other for the hydraulic transmission, can effectively use the power, reduce the overall power loss, making drilling low cost.the drilling rig adopts advanced structure, reasonable layout, easy to maintain and repair.the drilling rig, in the hydraulic system, reserves part of the functional interface, so the function can be extended according to different user's technical requirements.

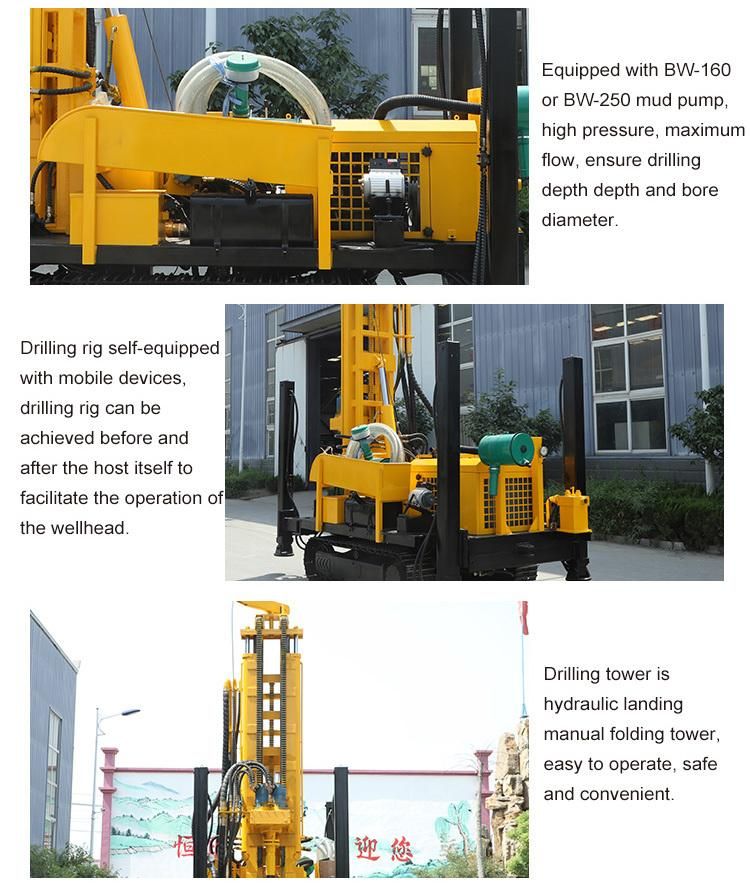

Detail Images

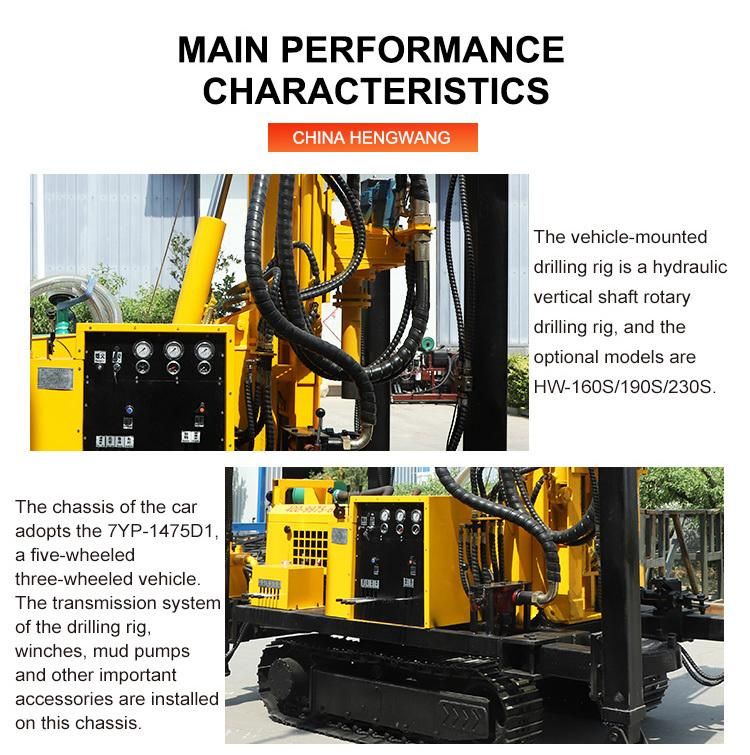

Pneumatic Type 150m Water Well Drilling Machine
Pneumatic Type 150m Water Well Drilling Machine
Pneumatic Type 150m Water Well Drilling MachinePneumatic Type 150m Water Well Drilling Machine

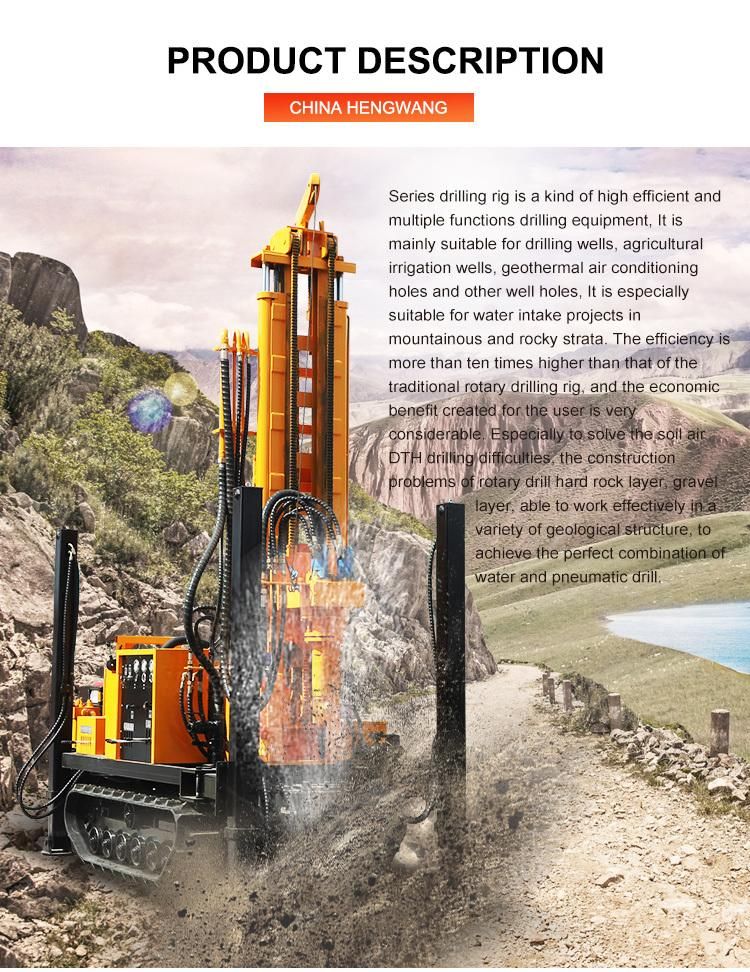

Product Usage

Air and mud pump water well drilling rig machine :our pneumatic drilling rig mainly used in rock geology .it need use together with air compressor.when drilling soil , it need use mud pump drilling . it is easy operate and have high drilling efficiency .

Pneumatic Type 150m Water Well Drilling Machine

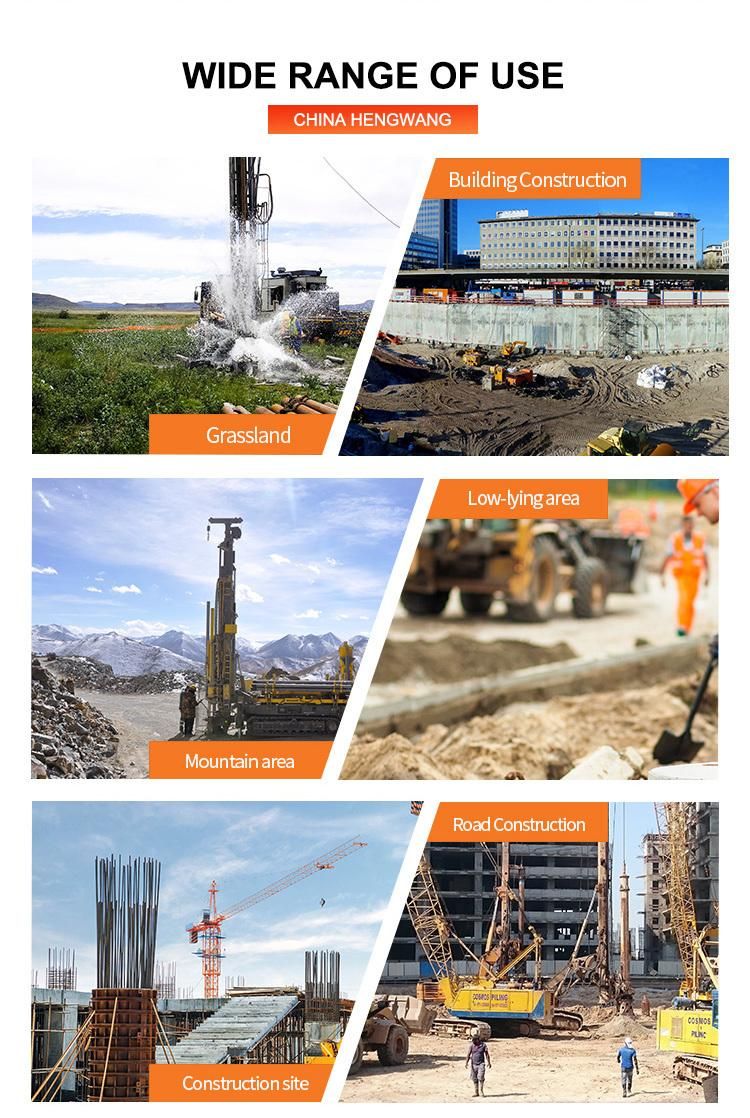

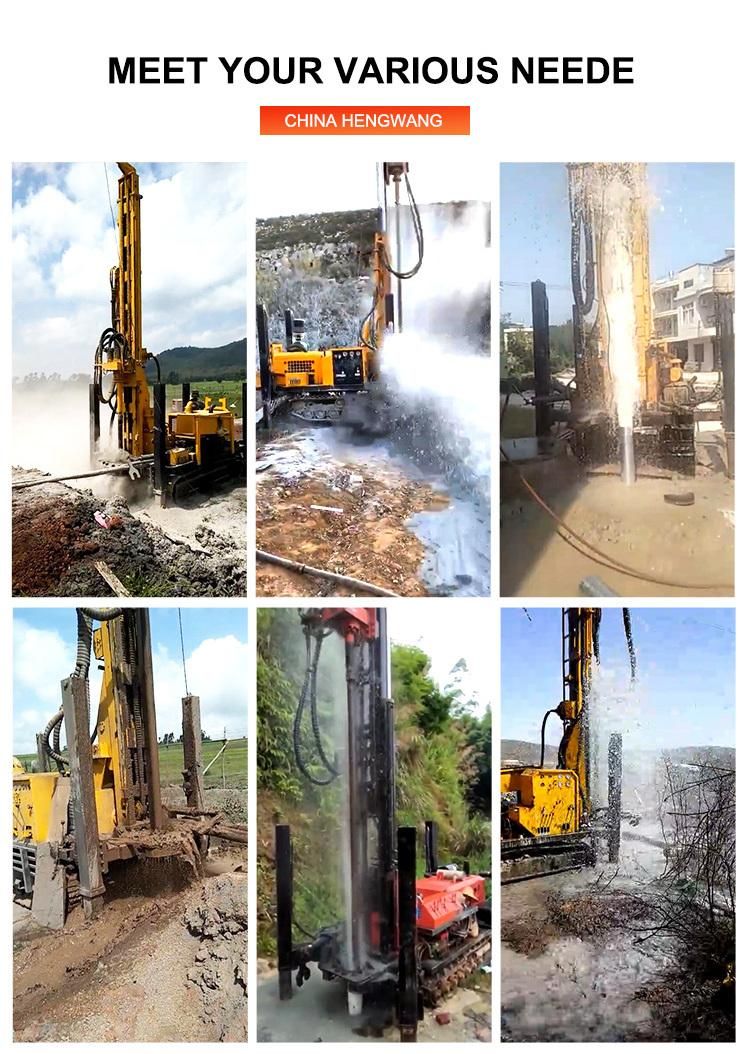

Product Application
Pneumatic Type 150m Water Well Drilling Machine

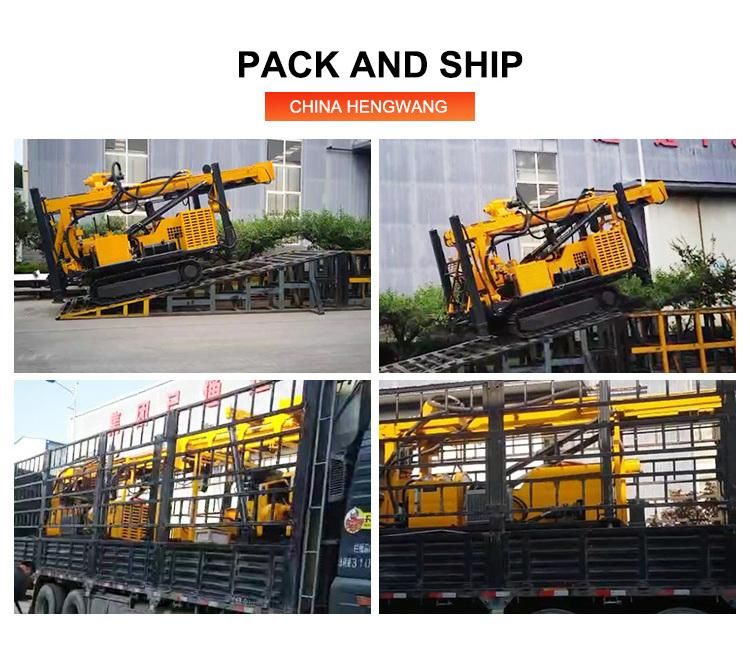

Delivery
Pneumatic dth drilling rig delivery

Pneumatic Type 150m Water Well Drilling Machine

Company Information:
Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
    Our company produces the piling machinery a total of 10 major series more than 20 varieties,water well driling rig machine,Construction machinery and other hydraulic products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.


Pneumatic Type 150m Water Well Drilling Machine
Any question ,pls feel free to contact us !
