China Air Compressor Pneumatic Water Well DTH Borehole Drilling Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HQZ220L
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Name：Drilling Rig
  • Drilling Depth：220m
  • Drilling Diameter：130-203mm
  • Drill Rod：3m,PC
  • Transport Package：Full Container
  • Specification：3400*1500*2400 mm
  • Trademark：HW
  • Origin：China
  • HS Code：8430419000
  • Production Capacity：300 Sets,Month

Description

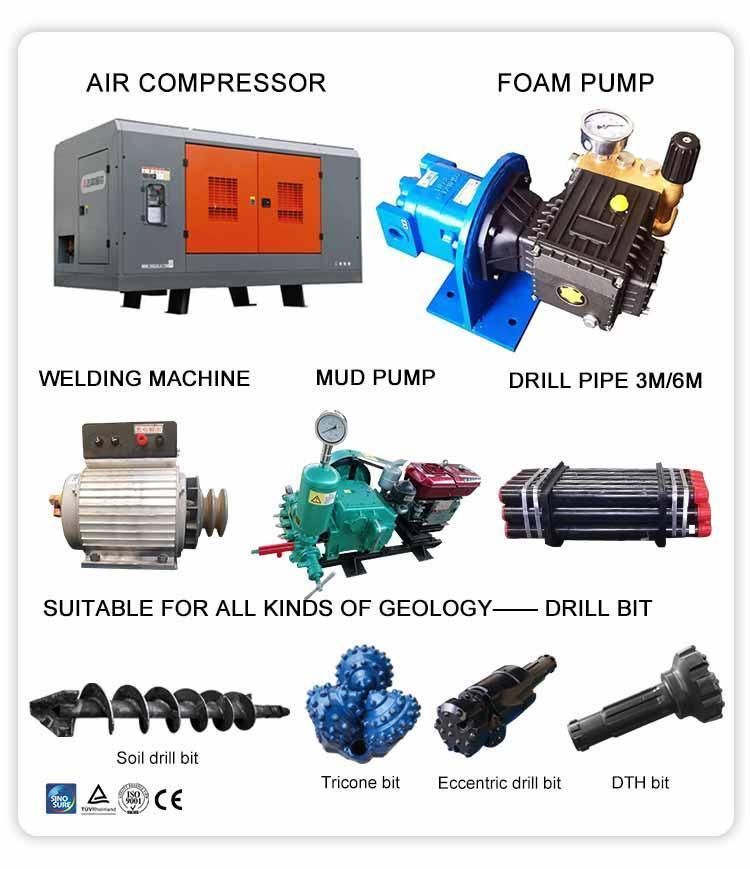

ApplicationChina Air Compressor Pneumatic Water Well DTH Borehole Drilling MachineChina Air Compressor Pneumatic Water Well DTH Borehole Drilling Machine
Specification

Model

HQZ220L

Overall weight (T )

4.2

Dimension (mm )

3800*1700*2350

Drilling diameter (mm )

130-294

Drilling depth (m )

220

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

30

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.7-2.5

Air consumption (m³/min)

15-27

Main machine power (kw)

Yunnei 60Kw

Rotary Speed (rpm)

48 - 70

Rotary torque (Nm )

4200-5600

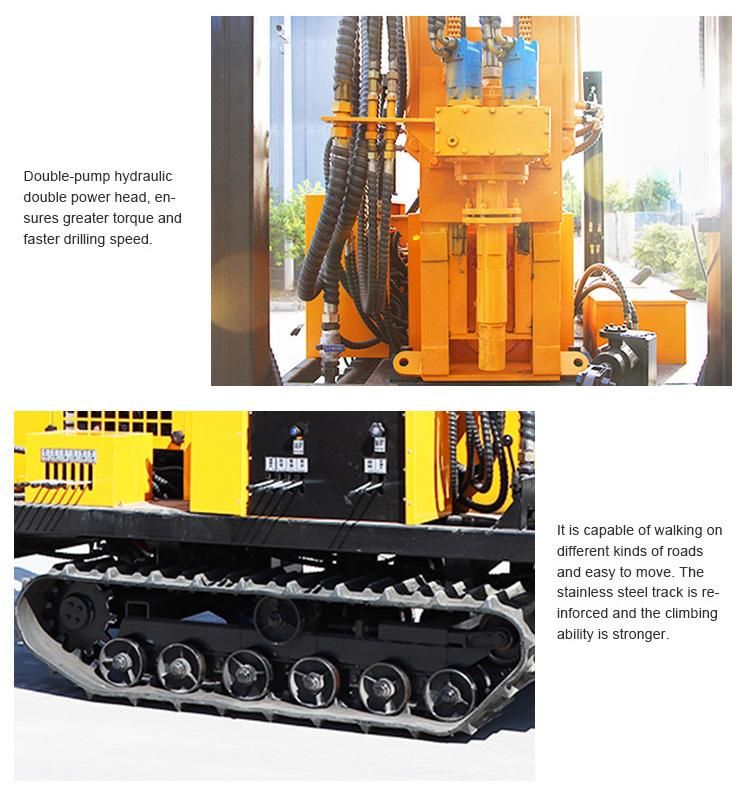

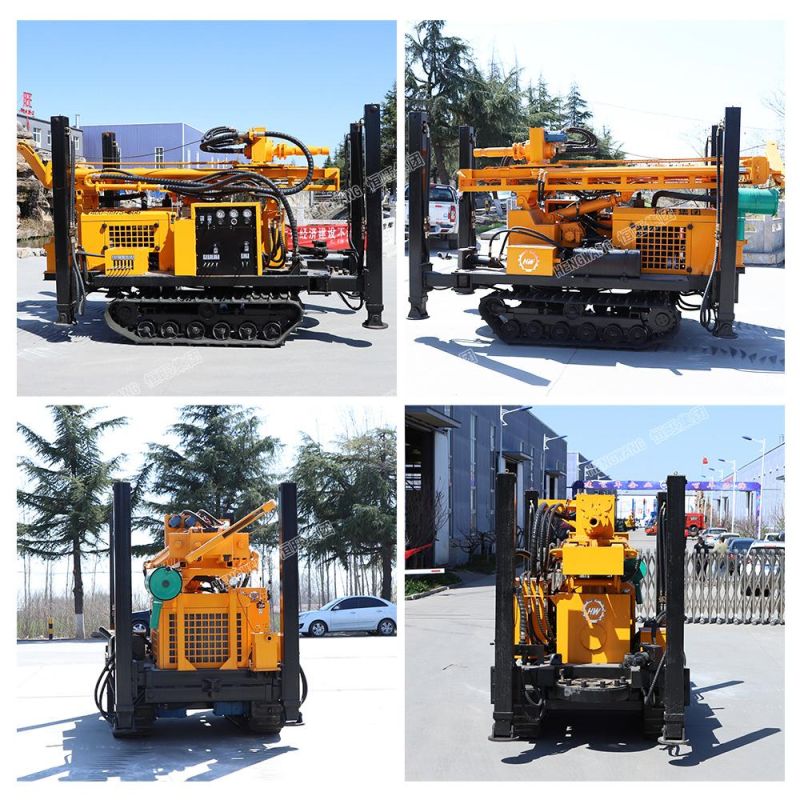

Products DetailsChina Air Compressor Pneumatic Water Well DTH Borehole Drilling MachineChina Air Compressor Pneumatic Water Well DTH Borehole Drilling Machine

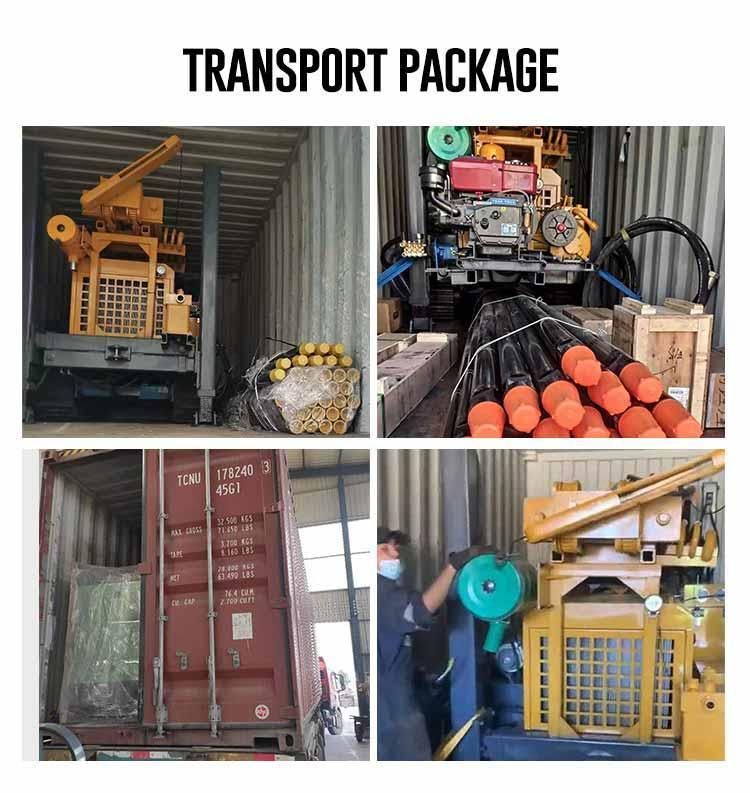

Packing and deliveryChina Air Compressor Pneumatic Water Well DTH Borehole Drilling Machine



Our factory

China Air Compressor Pneumatic Water Well DTH Borehole Drilling Machine
