• Model NO.：HF-150
• Drill Hole Depth：>200m
• Bit Type：Cone Bit
• Drilling Way：Rotary
• Type：Four-Wheel trailer
• Max. Drilling Diamter：2000mm
• Max. Drilling Depth：200m
• Power：Electric
• Diesel Generator：55-75kw
• Transport Package：Load in Container
• Specification：9200*2500*3500mm
• Trademark：Hengwang
• Origin：Shandong, China
• HS Code：8430419000
• Production Capacity：500set,Year

Model

HF-150

Drill hole depth(m)

≤180

The hole diameter(mm)

350-1800

Spindle speed(r/min)

11

Spindle power(kw)

11

The spindle torque(N•m)

12000

Hoist lifting force(kg)

3000×6

Mud pump

Traffic(m³/h)

300

Power(kw)

22

Generating set

The rated voltage(V)

380

Rated current(A)

90

Rated speed(r/min)

1500

Rated power(kw)

50

Main power supporting power

4105-6105 Diesel

Overall dimensions(L x W x H)(mm)

9200×2500×3500

Single weight(kg)

12000



Detailed Images Customer feedback:

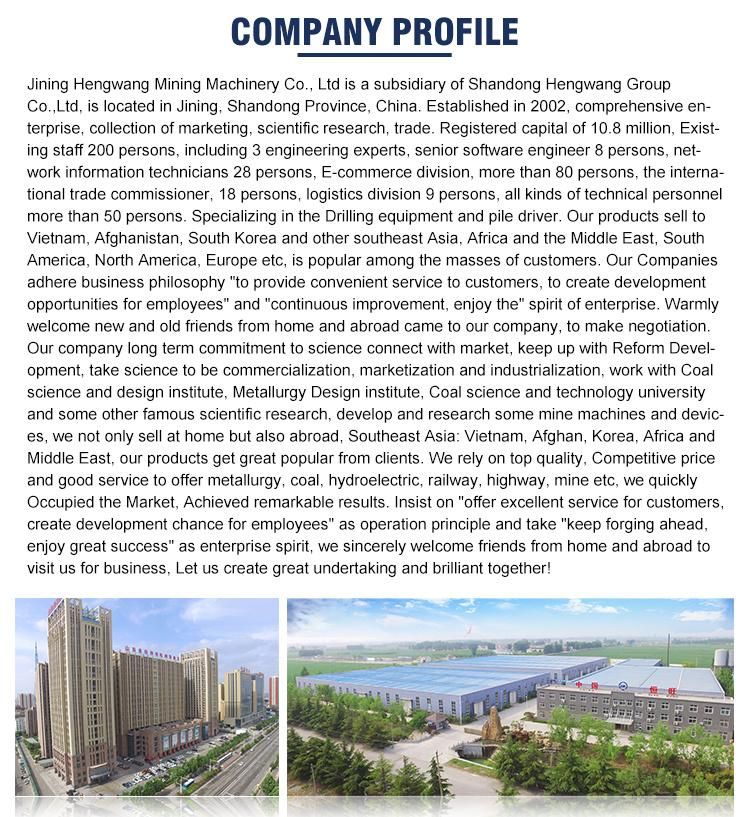

 Company Profile Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
Our company produces the piling machinery a total of 10 major series more than 20 varieties, construction machinery and other products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.


Certificates
We company have passed CE ,ISO,BV,TUV etc certificates .


 Welcome your enquiry: Hengwang drilling rig
