• Model NO.：Y19A, Y20, Y24, Y26, Hand held rock drill
• Drill Hole Depth：<100m
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Color：Yellow
• Gross Weigh：27kgs
• Function：New
• Hole Diameter：28-42mm
• Mining Object：Coal Machinery
• Transport Package：Carton
• Specification：ISO
• Trademark：BESTLINK
• Origin：China
• HS Code：84671100
• Production Capacity：1000000PCS Per Year

Basic Info.

Model NO. Y19A, Y20, Y24, Y26, Hand held rock drill Drill Hole Depth <100m Bit Type Diamond Bit Drilling Way Rotary Color Yellow Gross Weigh 27kgs Function New Hole Diameter 28-42mm Mining Object Coal Machinery Transport Package Carton Specification ISO Trademark BESTLINK Origin China HS Code 84671100 Production Capacity 1000000PCS Per Year

Product Description

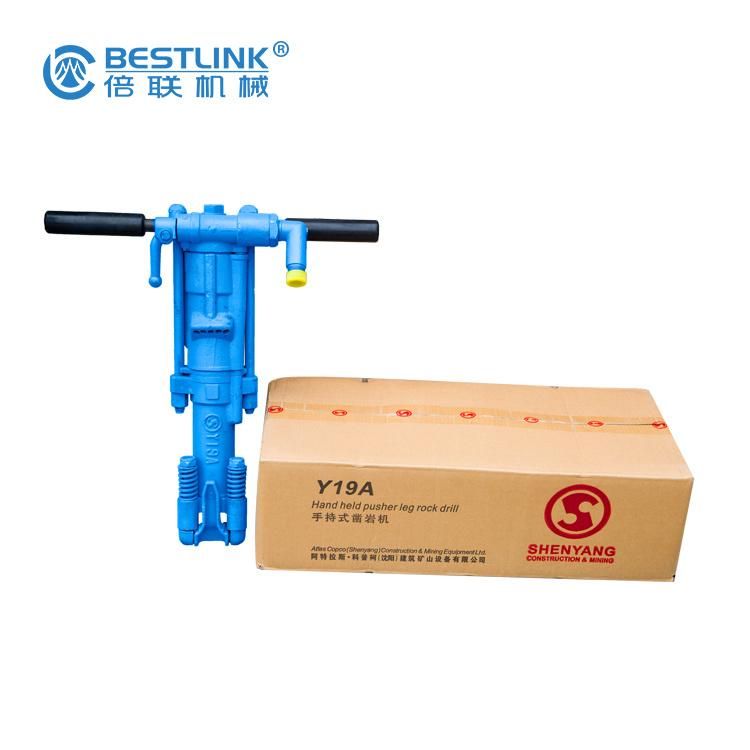

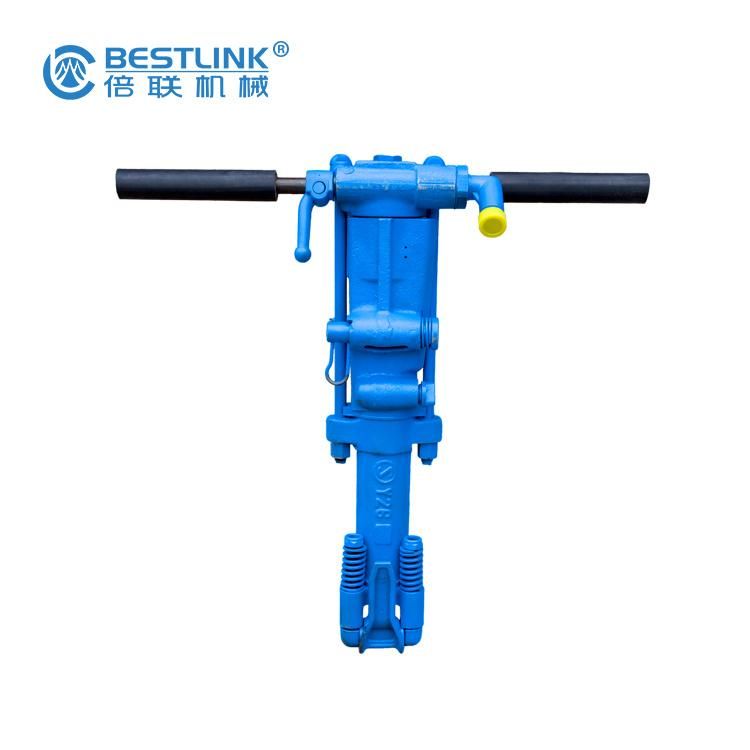

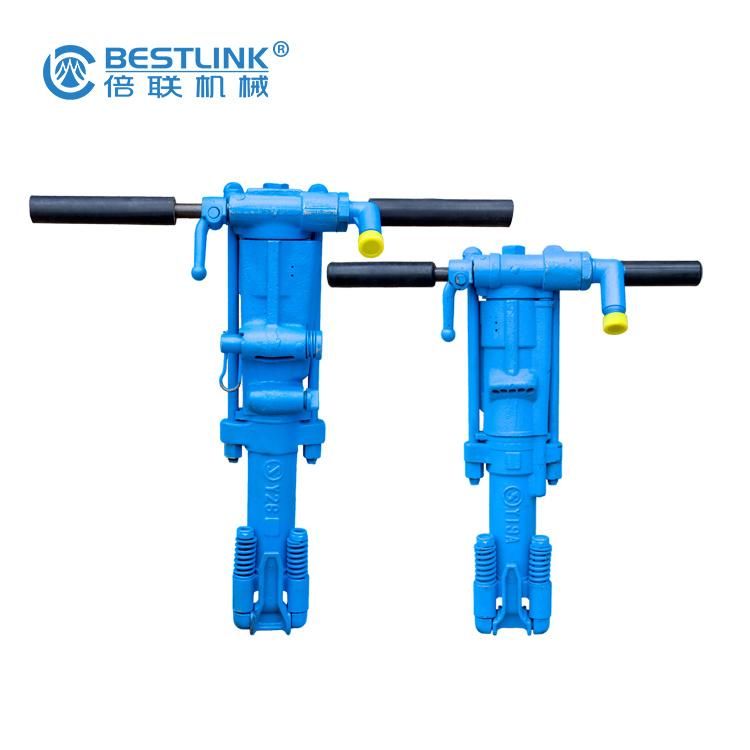

Y19A Y20 Y24 Y26 Pneumatic Hand held rock drill for Stone Quarry

1. Robust and reliable
2. User-friendly for safe and easy operations
3. Strong and powerful rock drill.
4. ISO: 9001



1. Applications

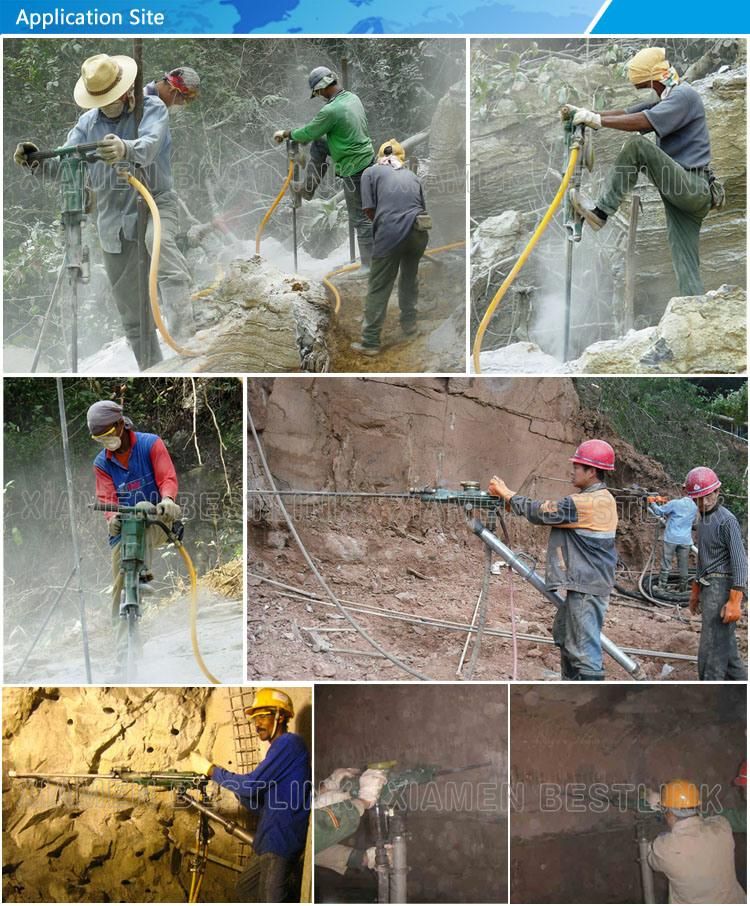

The Hand-held Rock Drill Model Y20/Y24/Y26 is mainly used in mine, railway, water irrigation works and quarrying works to drill holes or plugholes. It is suitable for wet or dry drilling in medium and hard rock. The downward holes can be in perpendicular or titling direction.



2. Features
A. It has many advantages, such as reasonable design, light weight, high efficiency, fast drilling velocity, low consumption convenient operation, low trouble rate, long life parts, and good economic effect.
B. Original in distributing construction, nimble in starting, and smooth in operation.
It has special strong blowing-out construction, blow strongly is specially suitable for drilling medium and deep-sized holes.
C. It may be used with dry or wet flushing, so it is suitable not only for extinguishing dust of drilling under-ground but also in high frigid zone lacking of water.


Why choose us.

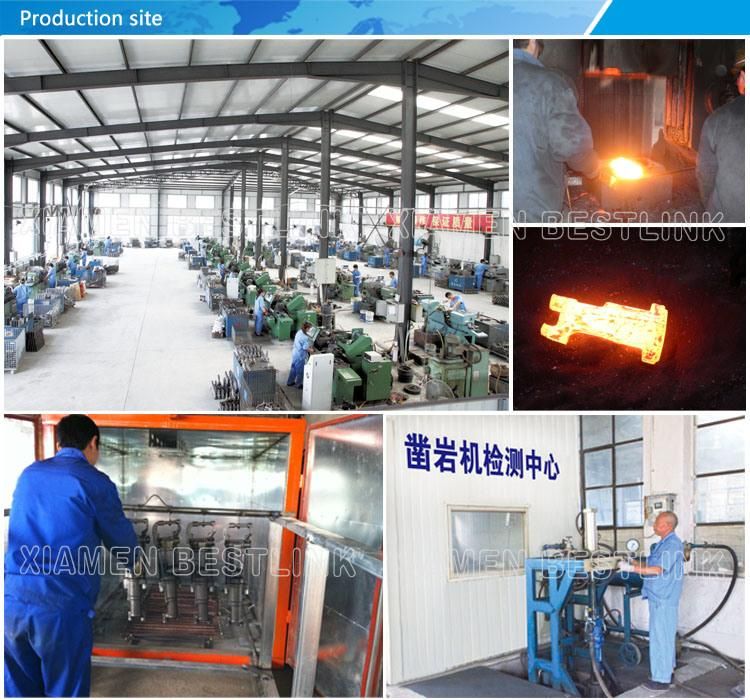

Xiamen Bestlink Factory Co., Ltd since 1985 is committed to providing the best drilling and cutting machine, tools and accessories products in marble and granite stone quarrying, as well as in civil engineering application, especial demolition project. It is now a leading manufacturer of cutting and drilling equipment for the extraction of marble, granite and ornamental stones.

Type	Y19A*	Y20	Y20LY*	Y24	TY24C	Y26
Weight (kg)	19	18	18	24	24	26
LxW(Handie)xH (mm)	600x534x157	605x485x110	609x198x135	604x485x162	610x485x158	650x534x125
Cylinder stroke(mm)	65*54	63*55	63*55	70*70	66.7*68	64*70
Air Consumption (L/s)	37~43	25	≤25	55	≤45	≤50
Air hose size (mm)	19	16or19	16or19	19	19	19
water hose size (mm)	13	/	8	/	/	13
Bore dia (mm)	32-42	32-42	32-42	32-42	32-42	32-42
Drilling depth (m)	5	5	5	5	5	5
Shank (mm)	22x108	22x108	22x108	22(25)x108	22x108	22(25)x108
