Xy-100 Core Drilling Rig/Diesel Portable Water Well Drill
Fuzhou Golden Moral Imp & Exp Co., Ltd.- Certification:CE
- Motor:AC Motor
- Drill Hole Diameter:200-250mm
- Drill Hole Depth:150-200m
- Bit Type:Cone Bit
- Drilling Way:Impactor
Base Info
- Model NO.:XY-100
- Type:Drilling Machine
- Usage:Coal
- Power Type:Electric
- Mining Object:Metallic and Non-Metallic Ore Excavator
- Transport Package:Wooden Box
- Trademark:GM
- Origin:China
- Production Capacity:1000set,Year
Description
Basic Info.
Model NO. XY-100 Type Drilling Machine Usage Coal Power Type Electric Mining Object Metallic and Non-Metallic Ore Excavator Transport Package Wooden Box Trademark GM Origin China Production Capacity 1000set/YearProduct Description

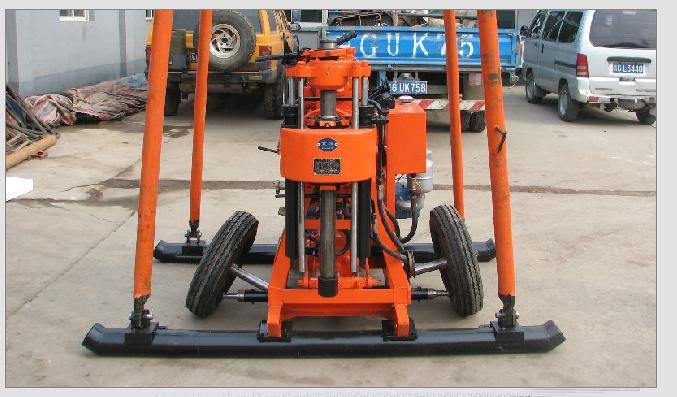

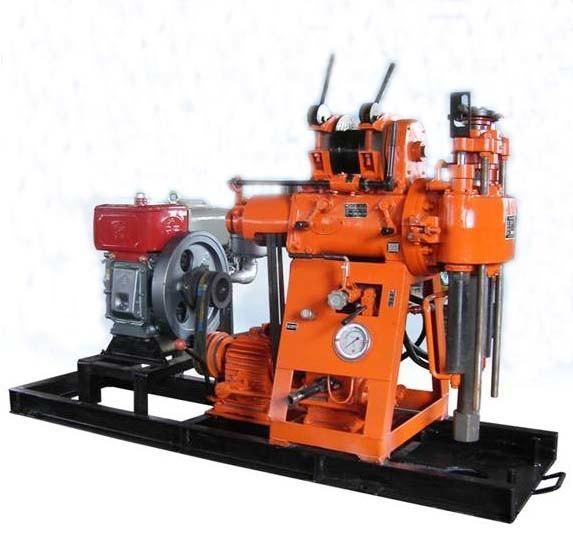

The XY-100 is used for general investigation, geophysical exploration, high-way and building construction, and blast-hole drilling, etc. With hydro-automatic feeding device, and high drilling efficiency. Designed with hydro-chucking unit instead of slips to ensure drilling from stop when changing pipes. Close levers, convenient to operate, safe and reliable operations. Compact in structure. All the drill, water pump and diesel engine installed on one base frame result in space-saving. Light in weight, easy disassembling for transportation and applicable to working conditions in plain and mountain areas.Model | XY-100Y |
Drilling depth | 100m |
Maximum open hole diameter | 200mm |
End hole caliber | 75mm |
Drill rod caliber | 50mm |
Drilling angle | 90°~75° |
Drill weight(No include power) | 510kg |
