Mining Underground Drilling Tool Y19A Hand-Held Air Rock Drill Machine

SHANDONG BETTER ONWARD MACHINERY CO., LTD.
  • Certification：CE
  • Condition：New
  • Motor：Pneumatic Motor
  • Drill Hole Diameter：34-40mm
  • Drill Hole Depth：5m
  • Bit Type：Taper Drill Bit

Base Info

  • Model NO.：Y19A
  • Drilling Way：Rotary
  • Machine Length：600mm
  • Cylinder Diameter：65mm
  • Piston Stroke：54mm
  • Working Air Pressure：0.4-0.5MPa
  • Shank Size：22* 108+,-1mm
  • Delivery Time：Within 2-3days
  • Transport Package：Cartons Packing
  • Specification：19kg
  • Trademark：better onward
  • Origin：China
  • HS Code：8430390000
  • Production Capacity：2000sets,Month

Description

Torque≥12.5N.m (0.5Mpa)≥9.5N.m (0.4Mpa)Using water pressure0.3MpaAir pipe inner diameter19mmWater pipe inner diameter13mmMax. drill hole depth5mDrill hole diameter34-40mmShank sizeH22* 108+/-1mmLubricator FY200AWeight1.2kgOil capacity0.2L

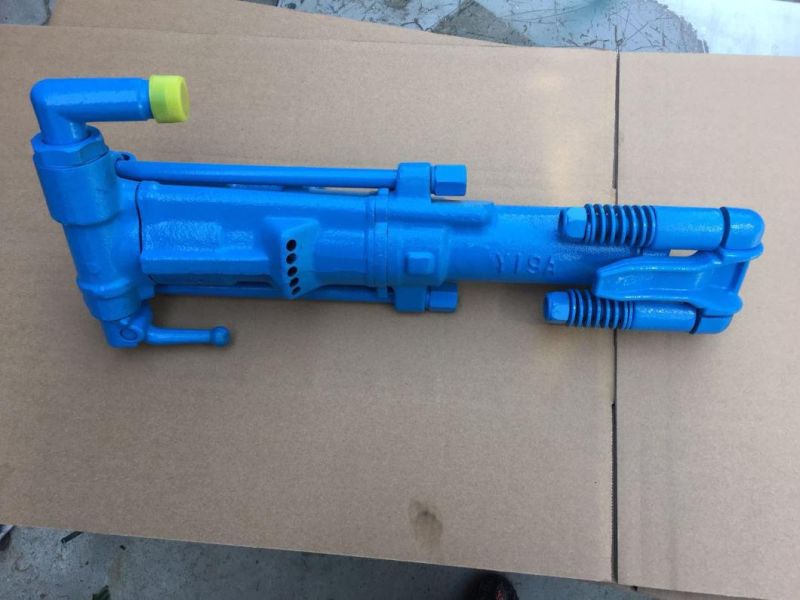

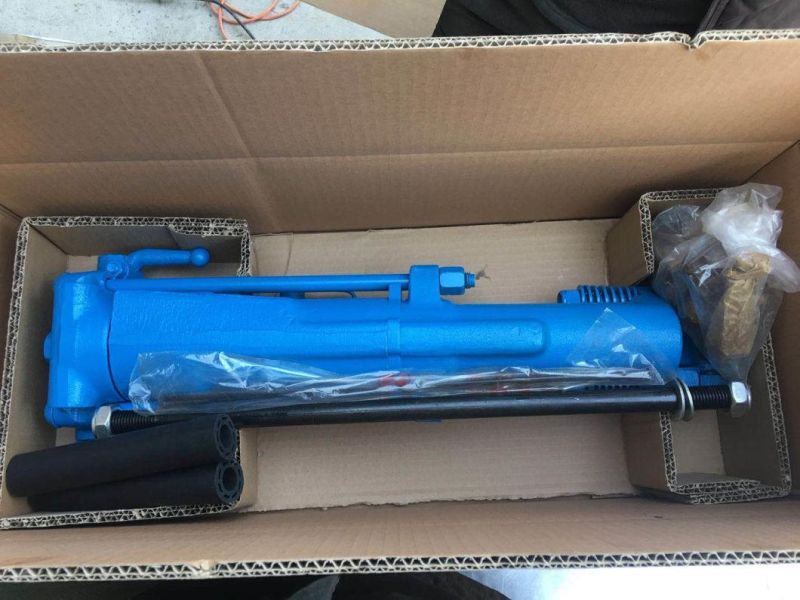

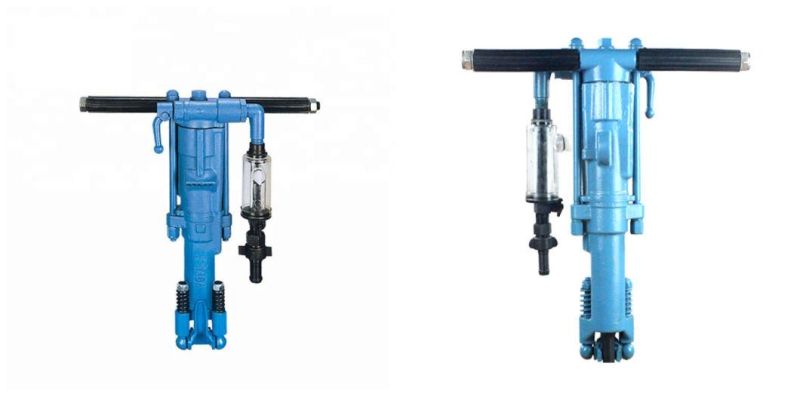

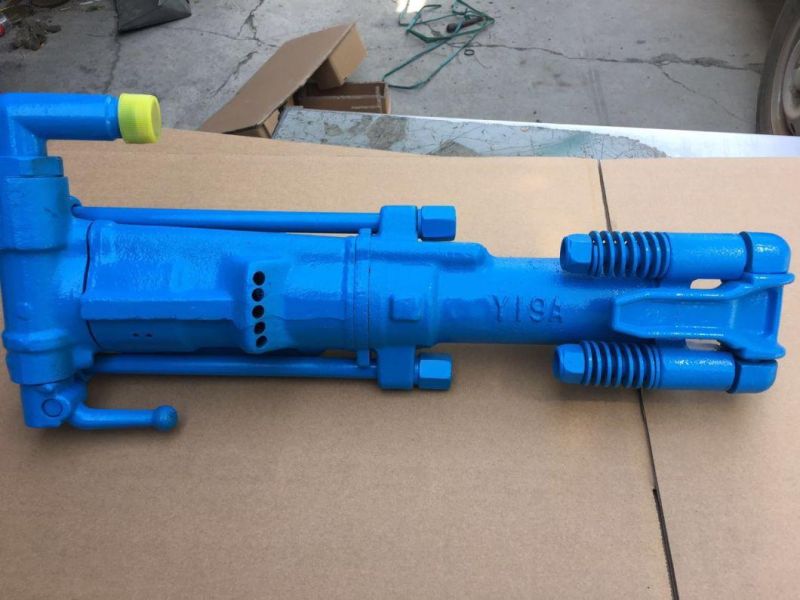

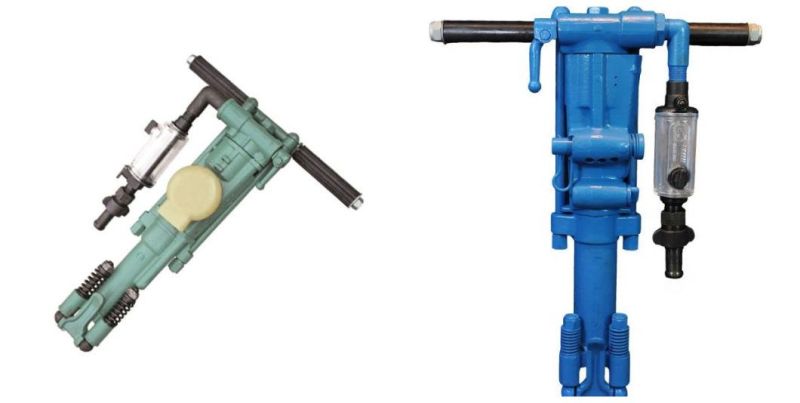

Images of Mining Y19A Handheld Pneumatic Rock drill machine

Mining Underground Drilling Tool Y19A Hand-Held Air Rock Drill Machine
Mining Underground Drilling Tool Y19A Hand-Held Air Rock Drill Machine
Mining Underground Drilling Tool Y19A Hand-Held Air Rock Drill Machine
Mining Underground Drilling Tool Y19A Hand-Held Air Rock Drill Machine
Mining Underground Drilling Tool Y19A Hand-Held Air Rock Drill Machine
