CSD400 Good Price Heavy Duty Deep Borehole Truck Water Well Drilling Rig for Drilling 400m
Beijing Jincheng Mining Technology Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：140mm-350mm
- Drill Hole Depth：400m
- Bit Type：Water Well Drilling
Base Info
- Model NO.：CSD400
- Drilling Way：Rotary
- Type：Truck Mounted
- Truck Type：4X4 or 6X4
- Rotation Torque：4800-9600n.M
- Pull Back Capacity：20ton
- Transport Package：40fr Container
- Specification：11000*2480*7147mm
- Trademark：JCDRILL
- Origin：China
- HS Code：8430419000
- Production Capacity：2000,Set
Description
Dimension46 Net Weight T 22 47 Shipping Length mm 10500 48 Shipping Width mm 2480 49 Shipping Height mm 3050 50 Working size(L*W*H) mm 11000*2480*7147
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 6X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450/2A or BW850/2 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a Cummins engine,132kw Cummins engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and160rpm stepless adjustment and the rotary torque is 4800-9600Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
13. Competitive in price, low cost of maintain.

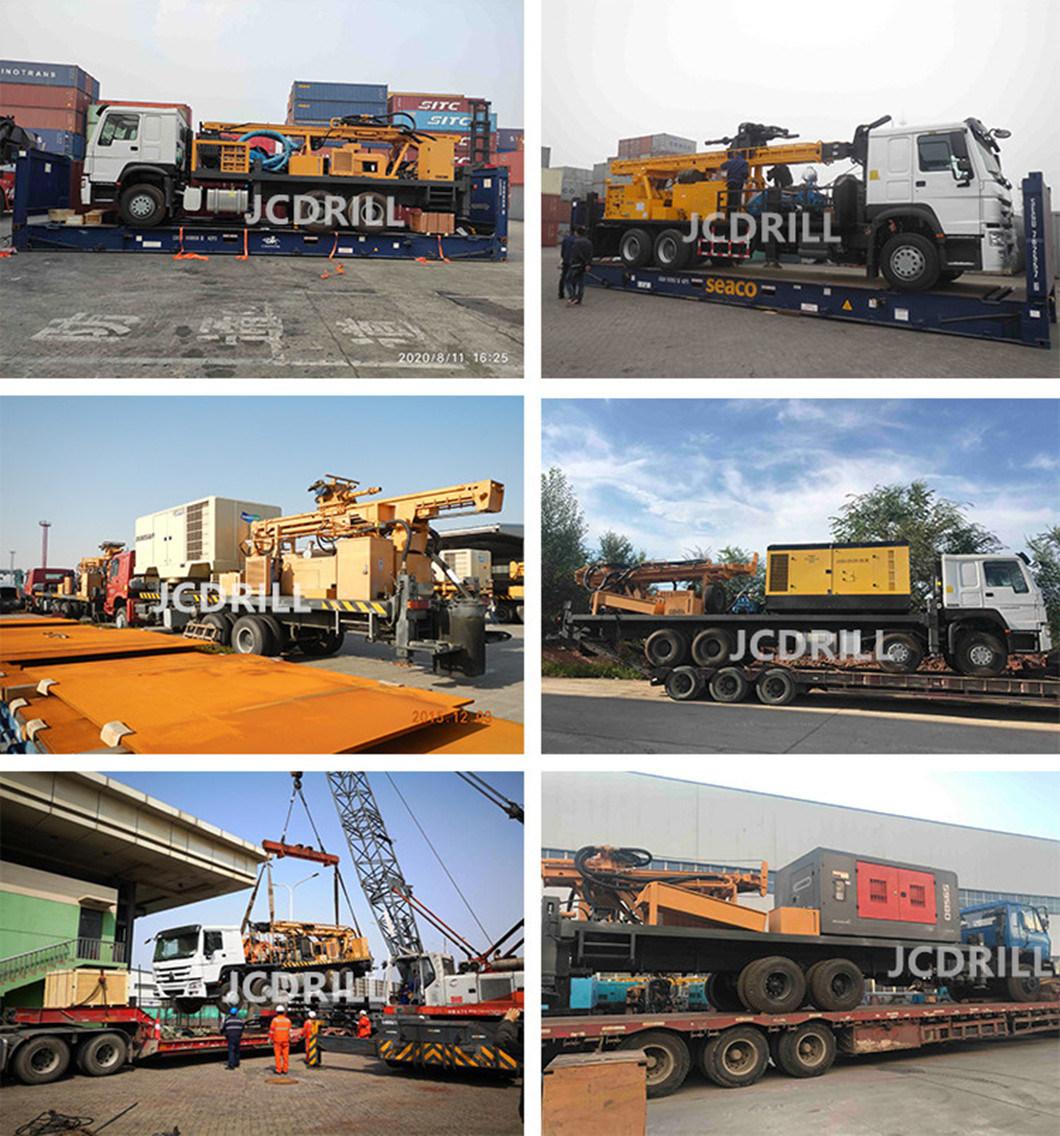

Packing & Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
1. The drilling rig can use air DTH Hammer drilling and mud drilling.
2. Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce the auxiliary time and enhance the work efficiency.
3. The truck chassis adopts the 6X4 special crane chassis of brand Sinotruck Howo and the main drive system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system are set up on the chassis.
4. It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450/2A or BW850/2 mud pump which adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable drilling bit.
5. The power of drilling rig comes from a Cummins engine,132kw Cummins engine drives the large displacement high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6. The rotary head,have two gear,rotation speed is 0-80 and160rpm stepless adjustment and the rotary torque is 4800-9600Nm.
7. The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8. It can set up a generator which is convenient to welding or illuminate for work at night.
9. Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the weathering formation.
10. The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled. Transfer case and mud pump clutch system are also hydraulic operated.
11. The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 4T, rope length of 100m and 8m lifting height.
12. The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift, guide dumping.
13. Competitive in price, low cost of maintain.
Packing & DeliveryService In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
