DHD360-203mm DTH Rock Bit
Glorytek Industry (Beijing) Co., Ltd.- Diameter：203mm
- Transport Package：Sea-Worthy Packing
- Specification：low pressure hammer bit
- Trademark：Glorytek
- Origin：China
Base Info
- Model NO.：DHD360-203mm
- Production Capacity：10000 PCS,Month

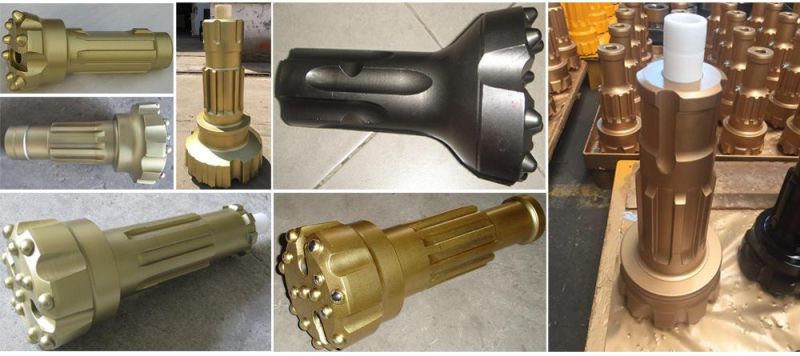

Description
TypeNumber of
Air hole DIa.(mm) Weight(kg) Gauge Button Front Button Matching DTH Hammer GL4.5-115 2 115-118 6.4 7×ф14 6×ф12 GL4.5 GL4.5-120 2 120-123 7 7×ф14 6×ф12 GL4.5-130 2 130-133 8 7×ф14 6×ф12 GL4.5-140 2 140-143 8.2 7×ф14 6×ф12 GL4.5-150 2 150-153 9 7×ф14 6×ф12 GL330-85 2 82-85 3.4 6×ф14 3×ф12 GL330 GL335-90 2 90-93 4.6 6×ф14 7×ф12 GL335 GL340-105 2 105-108 7.7 8×ф14 7×ф13 GL340
GL345
GL345K GL340-115 2 115-118 8 8×ф14 7×ф13 GL340-130 2 130-133 10.5 8×ф14 8×ф13 GL350-130 2 130-133 17 7×ф16 7×ф14 GL350
GL355
GL355K GL350-140 2 140-143 18 7×ф16 7×ф14 GL350-152 2 152-155 19 6×ф16 6×ф14 GL360-152 2 152-155 25 8×ф16 11×ф14 GL360 GL360-165 2 165-170 26.5 8×ф16 11×ф16 GL360-178 2 178-183 28.6 8×ф16 11×ф16 GL360-194 3 194-197 30 9×ф16 12×ф16 GL360-203 3 203-206 32 9×ф16 13×ф16 GL360-216 3 216-219 35 9×ф16 13×ф16 GL360-230 3 230-233 37 12×ф16 16×ф16 GL360-254 3 254-257 43 12×ф16 16×ф16 GL360-305 3 305-308 57 14×ф18 26×ф16 GL380-203 2 203-206 48 8×ф18 10×ф16 GL380 GL380-216 3 216-219 50 9×ф18 13×ф16 GL380-230 3 230-233 53 9×ф18 17×ф16 GL380-254 3 254-257 58 9×ф18 16×ф16 GL380-310 3 310-313 71 12×ф18 15×ф16 GL380-350 4 350-353 80 16×ф18 36×ф16 GL3120-302 3 302-305 176 12×ф18 ×ф18 GL3120 GL3120-311 3 311-314 177 12×ф18 ×ф18 GL3120-330 3 330-333 186 12×ф18 ×ф18 GL3120-357 3 357-360 196 18×ф18 ×ф18 GL3120-381 3 381-384 205 18×ф18 ×ф18 GL3120-444 3 444-447 230 18×ф18 ×ф18 GL3120-483 3 483-486 285 18×ф18 ×ф18 GL3120-508 3 508-511 311 18×ф18 ×ф18
----Type and Technical Specification of Bits for High Efficiency High Pressure DTH Hammers----TypeNumber of Air hole DIa.(mm) Weight(kg) Gauge Button Front Button Matching DTH Hammer GL440-115 2 110-113 8 7×ф14 6×ф12 GL440 GL440-130 2 130-133 12 7×ф14 8×ф12 GL450-130 2 130-133 15 6×ф13 3×ф12 GL450 GL450-140 2 140-143 15.4 6×ф13 6×ф12 GL450-152 2 152-155 19 8×ф14 7×ф13 GL460-165 2 165-170 25 8×ф14 7×ф13 GL460 GL460-178 2 178-181 27 8×ф14 8×ф13 GL480-203 2 203-206 48 7×ф16 7×ф14 GL480 GL480-216 2 216-219 50 7×ф16 7×ф14 GL480-254 3 254-257 58 6×ф16 6×ф14
♦ Bits for Low Pressure DTH Hammers
♦ Bits for Medium & High Pressure DTH Hammers
♦ Bits for High Efficiency High Pressure DTH Hammers
♦ Bits for Through Reverse Circulation DTH Hammers
Our DTH hammer and bits are compatible with CIR, DHD, QL,SD,Mission, etc. series of Atlas and Sandvik etc. They are with high efficiency, low failure rate and long service life. They are with high efficiency, low failure rate and long service life, which can realize efficient and economical drilling even for all kinds of high hardness, high abrasive rocks and other harsh conditions.

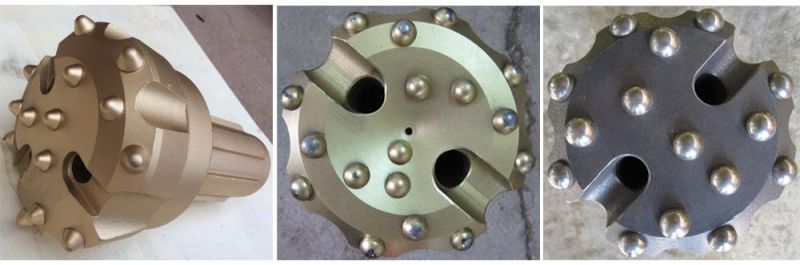

2. DTH rock bit face shapes: Flat, Concave, Convex 3. DTH bit button shapes: Spherical, Ballistic, Parabolic
4. Application of DTH rock bit: They are widely used for mine, quarry, road construction for the drilling and blasting work, water well drilling, slope protection, anchoring, etc.
5. Bit size and buttons can be customized.

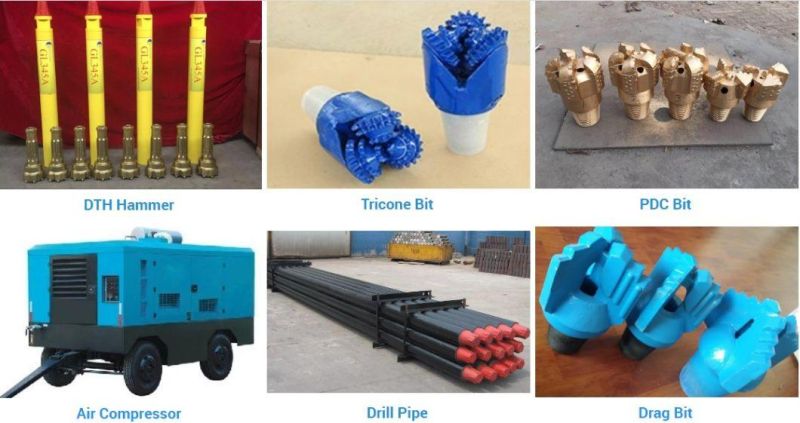

Related Products
We can also supply DTH Hammer, Tricone Bit, PDC Bit, Air Compressor, Drill Pipe, Drag Bit, etc.

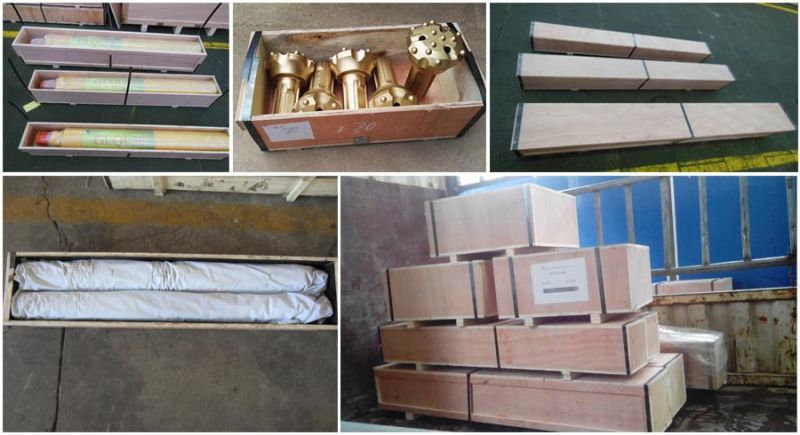

Packing and Transport
Packing: Plywood Box
Delivery: Normally 3-5 days after your down payment.

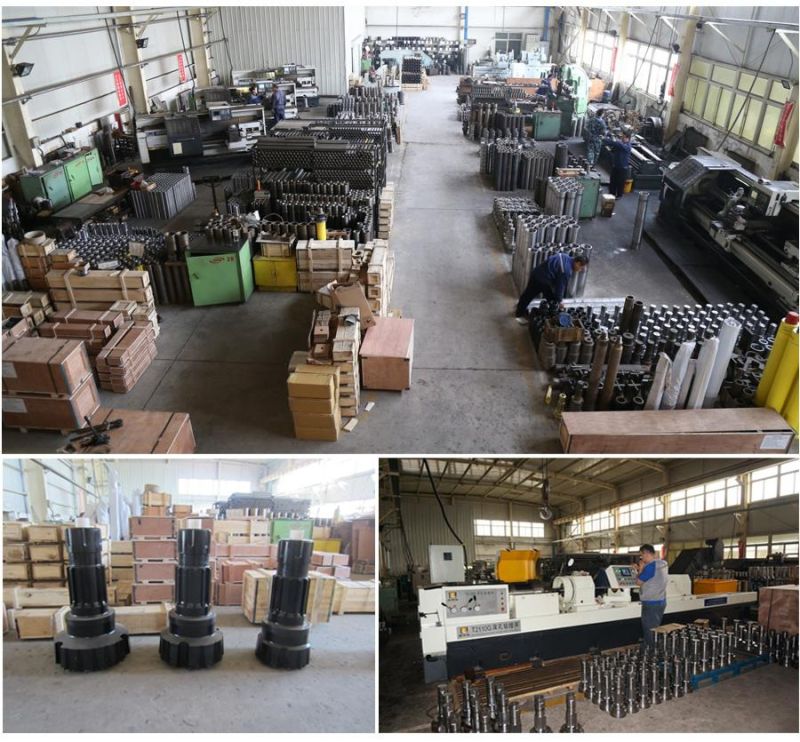

Company Profile
Our products are widely used in the scope of mining, water well drilling and exploration, anchor grouting project, side slope protection engineering, oil and gas engineering,underwater rock drilling & blasting operations of seaport channel, hydropower project, national defense projects ect.
Exhibition
Certifications
Customer Photos
After-sale Warranty
(1) Free change once the problem caused by the quality issue.
(2) Timely after-sale assistance shall be provided all the time.
FAQ
Q: Are you original manufacturer or trading company?
A: We are an integrated corporation specialized in manufacturing and exporting.
Q: Can you supply related drilling tools?
A: Yes, we can supply full set of drilling tools, such as drill pipe, tricone bit, PDC bit, drag bit, DTH Hammer. Moreover, we have drilling equipments like rigs, mud pump, air compressor, etc. as well.
Q: Which payment terms can you accept?
A: Normally we prefer 30% advance payment after purchase order by T/T, 70% remaining payment before shipping by T/T. And 100% advance payment after purchase order by T/T for small orders.
Q: How is your delivery time?
A: This will depend on your purchasing quantity. Normally we can deliver 3-5 days.
Q: How can you ensure the quality?
A: We have our professional QC and all the products will be strict inspection and testing for every order before shipping out.
