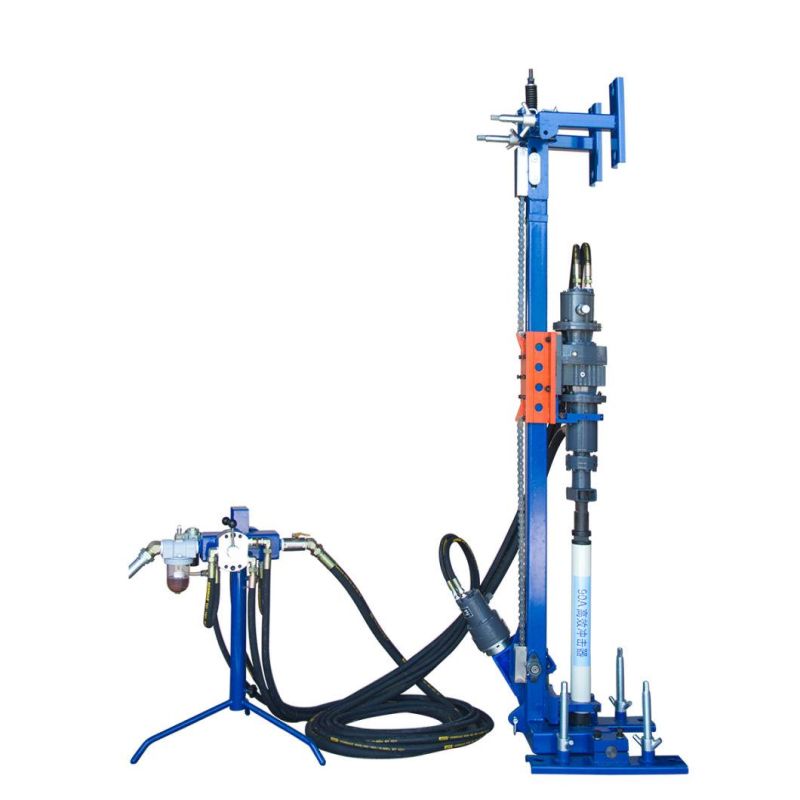

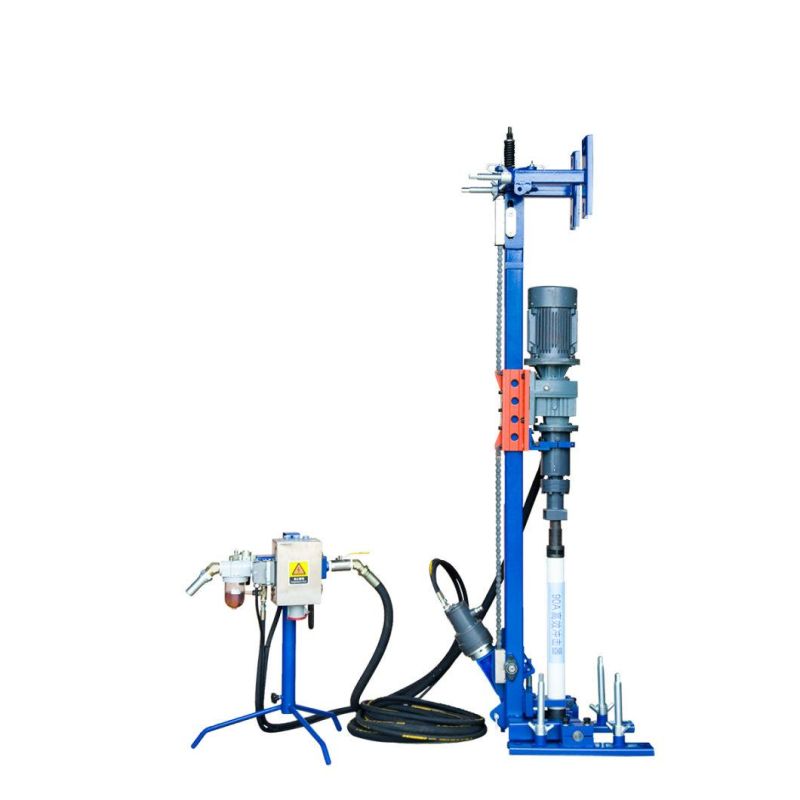

Zhongyuan Pneumatic DTH Drilling Machine
Fujian Ningde Aqt Imp. & Exp. Co. Ltd- After-sales Service：Good-Quality Technical Services
- Warranty：1 Year
- Certification：CE, ISO
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：90mm
Base Info
- Model NO.：ZY-100DTH-P
- Drill Hole Depth：0-30m
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Drilling Direction：Any Direction
- Transport Package：Plywood
- Specification：600kg
- Trademark：Stonewin
- Origin：Xiapu, Fujian, China
- HS Code：8430412900
- Production Capacity：1000sets Per Year
Description
ZY-100DTH-P PNEUMATIC DEPTH
DRILLIING MACHINEMODEL UNIT ZY-100DTH-P DRIVING SYSTEM KW 3.0KW AIR MOTOR
1.5KW AIR MOTOR DIAMETER OF DRILL HOLE (MM) Φ90 MAX.DEPTH OF DRILL HOLE (M) 30 SPEED OF DRILLING (M/H) 6-8 MIN.AIR PRESSURE (Mpa) 0.6-0.7 AIR CONSUMPTION (M³/MIN) 8-10 SINGLE FEEDING DISTANCE (M) 1 DRILLING DIRECTION ANY DIRECTION NET WEIGHT (KG) 600
The DTH drilling machine is used for drilling large diameter horizontal, vertical, and slant holes during stone quarrying. It is necessary assistive equipment to wire saw machines during stone quarrying. The machine is controlled by compressed air motors. And the pneumatic units are in a high-quality standard. The machine has the following features: low compressed-air consumption, high drilling efficiency, light in weight, easy operating and installing, etc. The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor. And the machine has a particular design for guiding drilling.
DRILLIING MACHINE
1.5KW AIR MOTOR
The DTH drilling machine is used for drilling large diameter horizontal, vertical, and slant holes during stone quarrying. It is necessary assistive equipment to wire saw machines during stone quarrying. The machine is controlled by compressed air motors. And the pneumatic units are in a high-quality standard. The machine has the following features: low compressed-air consumption, high drilling efficiency, light in weight, easy operating and installing, etc. The particular screwing and discharging mechanism of the tube devices reduces the intensity of labor. And the machine has a particular design for guiding drilling.
