• Model NO.：MZ130Y-2
• Screw Drill Torque：6500nm
• Pile/Drill Diameter：90-400mm
• Work Efficiency：200-450, Day
• Bore Rock Diameter：90-350mm
• Bore Depth：0-100m
• Once Promotion：2m
• Mast Pitch：100degree
• Mast Swing：40degree
• Rotation Speed：0-70
• Engine Power(Kw)：56
• Diesel Fuel Consumption：7L,Hour
• Climb Ability：35degree
• Weight(Kg)：4710
• Dimension(L*W*H)mm：4460*1950*2460
• Transport Package：20′ Container
• Specification：4500*1970*2440mm
• Trademark：LongYe
• Origin：Shandong
• HS Code：8430419000

Basic Info.

Model NO. MZ130Y-2 Screw Drill Torque 6500nm Pile/Drill Diameter 90-400mm Work Efficiency 200-450/ Day Bore Rock Diameter 90-350mm Bore Depth 0-100m Once Promotion 2m Mast Pitch 100degree Mast Swing 40degree Rotation Speed 0-70 Engine Power(Kw) 56 Diesel Fuel Consumption 7L/Hour Climb Ability 35degree Weight(Kg) 4710 Dimension(L*W*H)mm 4460*1950*2460 Transport Package 20′ Container Specification 4500*1970*2440mm Trademark LongYe Origin Shandong HS Code 8430419000

Product Description

      We Taian Longye Import And Export Trade Co.,Ltd is an integrated set of manufacturing and export company with ShanDong LongYe Machinery Co.,Ltd,   we are China No.1 solar ground pile Piling Machines manufacturer that cover more than 60% in Chinese solar market, and we exported to Russia, Kenya, Brazil, India , Japan, Malaysia, USA, Germany, Spain and more than 60 countries...

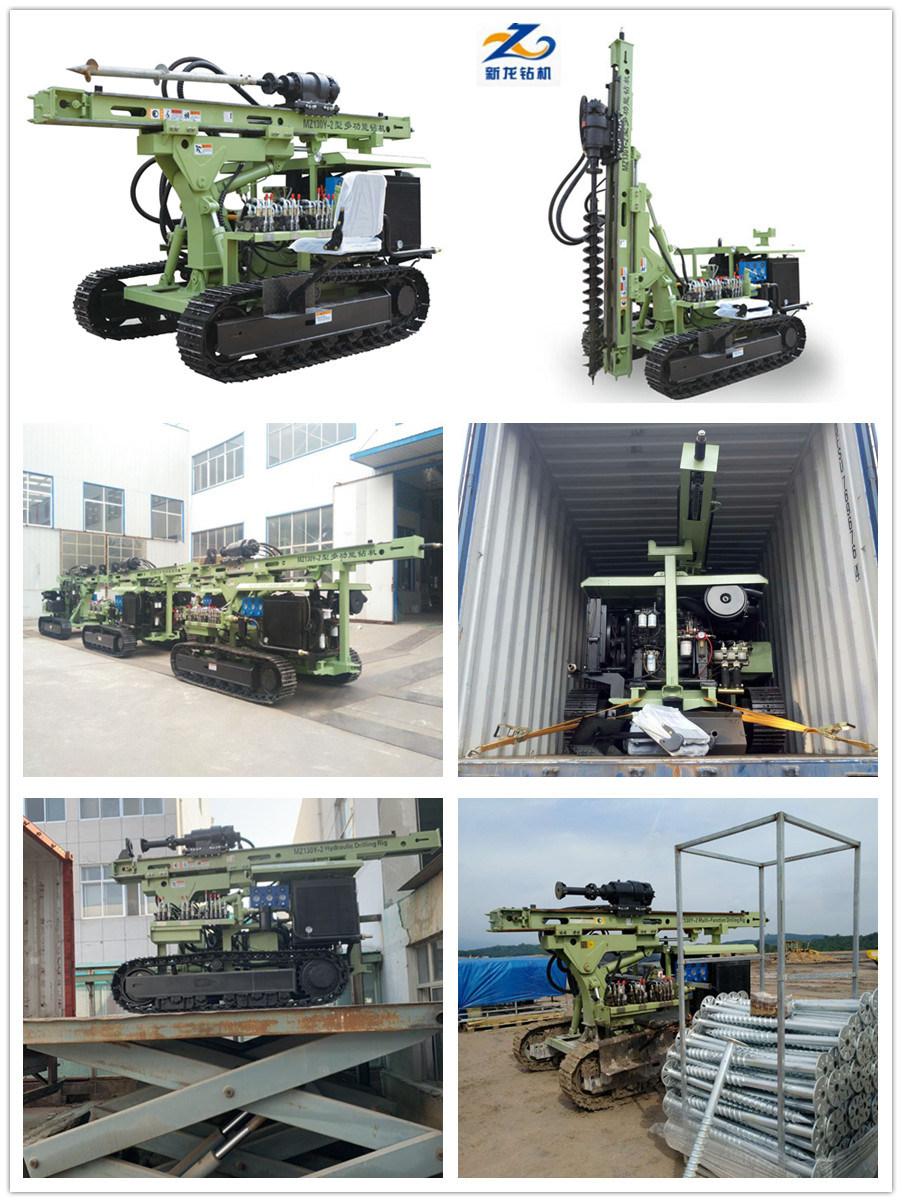

 Technical parameters      MZ130Y-2 ground screw drilling machine can :

• Drill maximum 3m long ground screw piles.
• Drill 130-400mm diameter auger spiral soil holes.
• Drill 90-350mm diameter DTH stone rocky ground holes .
• Working on flat ground or maximum 15 degree slope ground

Air pressure  (Mpa)	0.7-1.6Mpa(medium) 1.6-2.46Mpa(high)
Air consumption (m3/min)	10-26
Bore diameter(hammer)  (mm)	90-300mm
Bore depth  (m)	20-100
Once promotion(mm)	2000
Screw pipe diameter  (mm)	76/89
For rock	F=6-20
Bore diameter(screw)(mm)	Max 400mm
Skid pitch(.)	100
Swinging angle of skid(.)	Left and right total 40°
Bore depth(m)	0-30
Screw pipe diameter(mm)	130-400
Rotation speed<="">	0-70
Host power(kw)	56
Climb ability(.)	35
Walk speed(kw/h)	0-2.5
weight(Kg)	4710
Dimension(L*W*H)mm	4460*1950*2460

Remark:

1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.
2. The time of delivery: Deliver the products within 2 days after receiving the total price.
3. The quotation validity date:40 days;  Machine manufacturing time: 5-7 days;
4. Loading: 1 set machine uses 1*40 feet high container; 1*40 feet high container for maximum 2 sets.

....................................................................................................... .

R F Q



Q1: What's your delivery time?

A: 15 days to produce, within 3 days if in stock.



Q2: What's methods of payments are accepted?

A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.



Q3: What about the shipments and package?

A: 40' container
Machine in nude packing, spare parts in standard export wooden box.



Q4: Have you got any certificate?

A:We have got ISO,CE certificate.



Q5: How to control the quality?

A: We will control the quality by ISO and CE requests.



Q6: Do you have after-sale service and warranty service ?

A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.

Warranty is one year for the machine.



Q7: Can I trust your company ?

 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !

      We are factory manufacturer, and we have our own export license .
