Portable Hydraulic&Air Driven Borehole Drilling Machine
Zhengzhou Lead Equipment Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：83-130mm
- Drill Hole Depth：≤ 25m
- Bit Type：Diamond Bit
Base Info
- Model NO.：LDY-100
- Drilling Way：Rotary
- Color：Customised
- Warranty：1 Year
- Rotary Motor：Cycloid Motor
- Usage：Mining, Railway,Coal, Ect
- Transport Package：Standard Export Packing
- Specification：ISO9001-2008&CE
- Trademark：Leadcrete
- Origin：Henan China
- Production Capacity：1000 Sets,Year
Description
Basic Info.
Model NO. LDY-100 Drilling Way Rotary Color Customised Warranty 1 Year Rotary Motor Cycloid Motor Usage Mining, Railway,Coal, Ect Transport Package Standard Export Packing Specification ISO9001-2008&CE Trademark Leadcrete Origin Henan China Production Capacity 1000 Sets/YearProduct Description

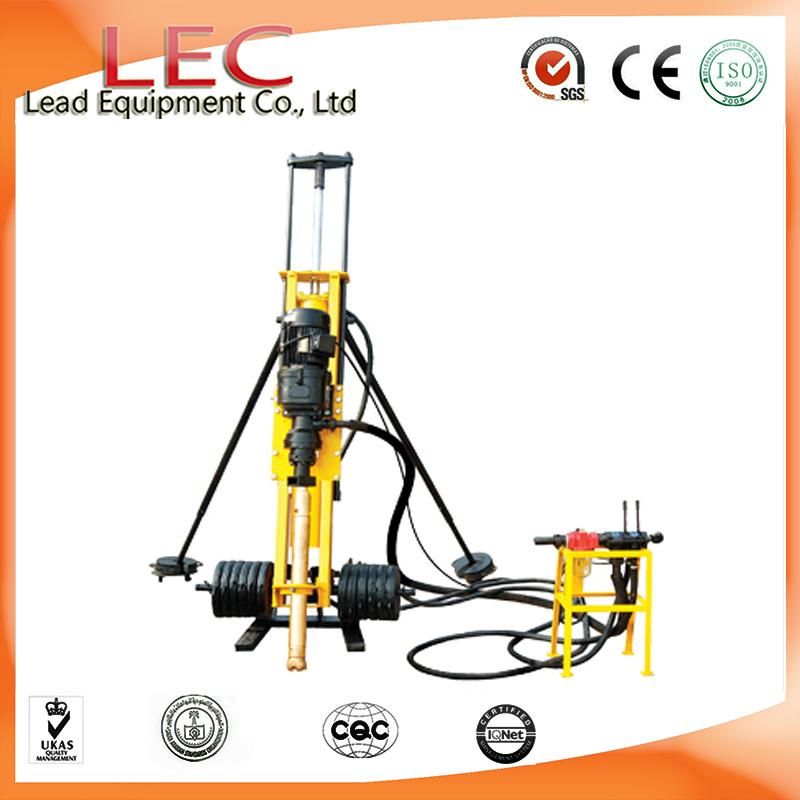

LDY-100 Portable hydraulic&air driven DTH borehole drilling machine
Feature:
LDY-100 pneumatic&hydraulic DTH borehole drilling machine has simple structure, easy operation, low price, energy saving, and can also drill vertical and horizontal blast hole, especially it has low center of gravity and detachability is good, so movement and transportation are convenient.

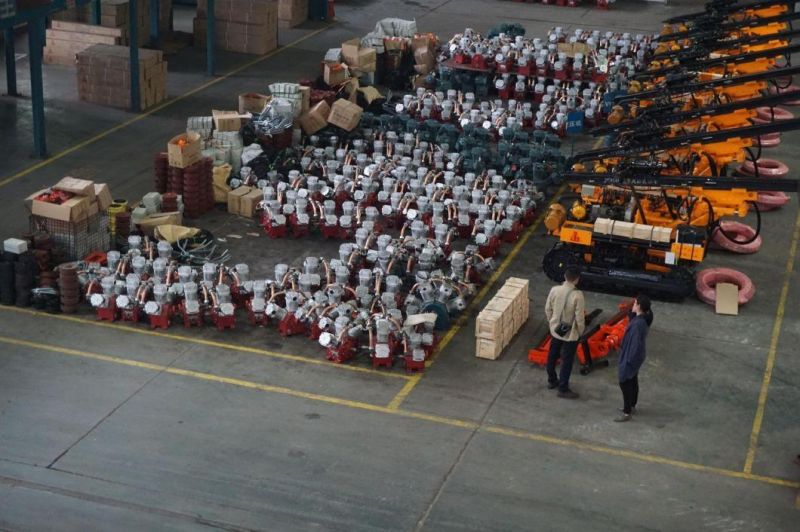

Our factory
Data:
| model | LDY-100 |
| bore diameter (mm) | 83-130 |
| bore depth (m) | ≤ 25 |
| rock hardness | f=6-20 |
| impactor (mm) | 80-110 |
| pressure (mpa) | 0.5-0.7 |
| air consumption (m³ /min) | 7-12 |
| rotating speed (r/min) | 0-55 |
| pushing length (m) | 1 |
| max. lifting force (kg) | 15 |
