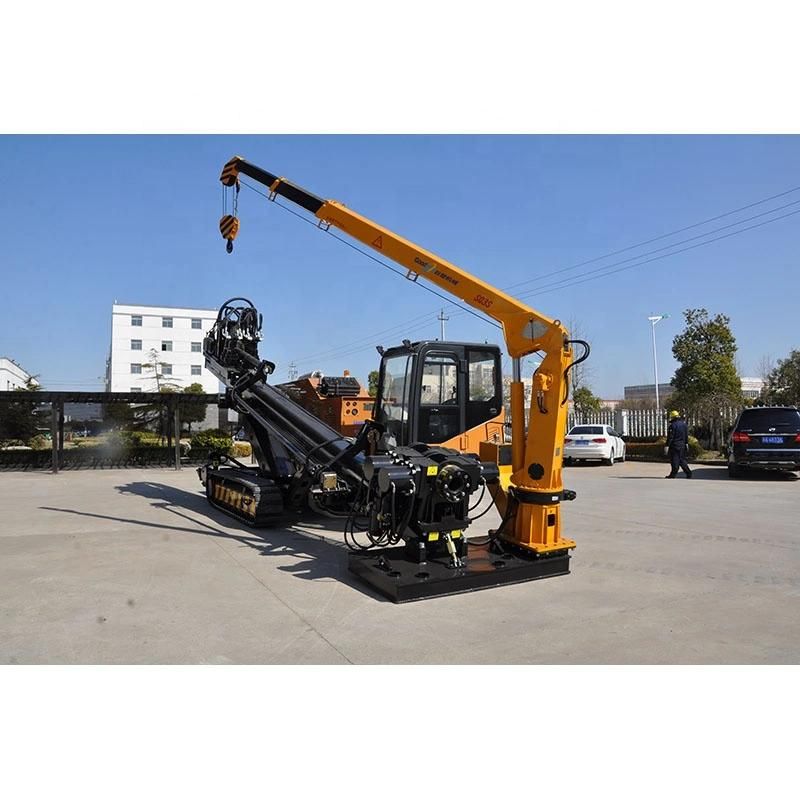

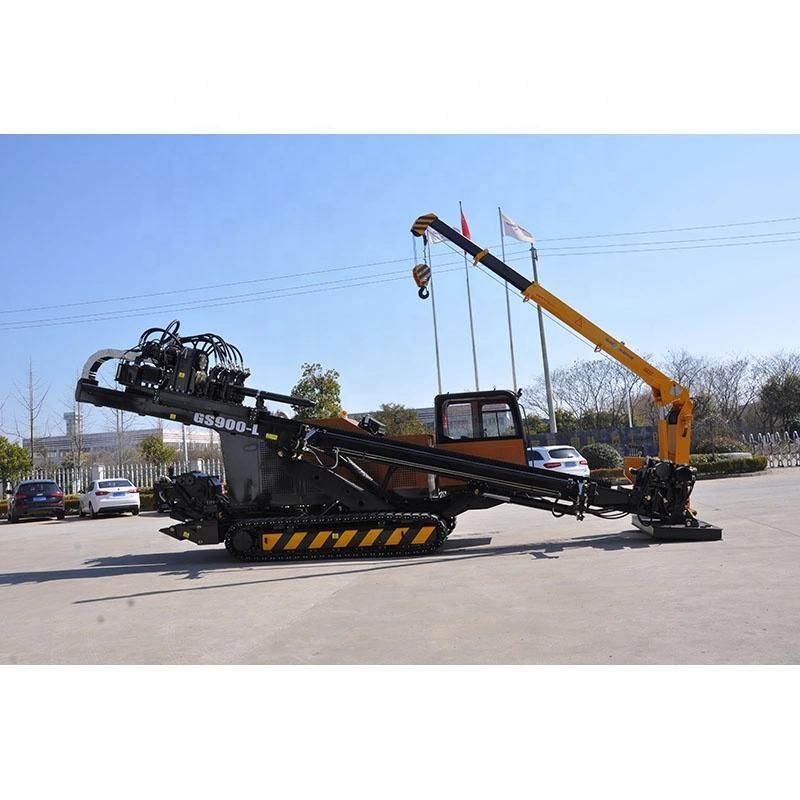

Goodeng HDD Machine Gd130c-L/Ls 36 M/Min Horizontal Directional Drilling

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>150m
  • Bit Type：Diamond Bit
  • Drilling Way：Compound

Base Info

  • Model NO.：GD130C-L,LS
  • Type：Crawler
  • Transport Package：by Sea
  • Origin：China
  • HS Code：84264910
  • Production Capacity：500,Month

Description

Rig Weight4750 kgDimension(L*W*H)5465*1670*2040(mm)Max. Push&Pull Force135 kNMax. Torque4500 N·mMax. Push&Pull Speed36 m/minMax. Rotation Speed193 r/minEngine Power93 kWMax. Mud Pump Flow200 L/minWalking Speed2.5-4.5(km/h)Max. Mud Pump Pressure8 MpaEntry Drill Angle12°-22°Max. Climbing Gradient16°Max. Aperture Diameterø750mm(Soil Depended)Max. Crossing length200m(Soil Depended)
