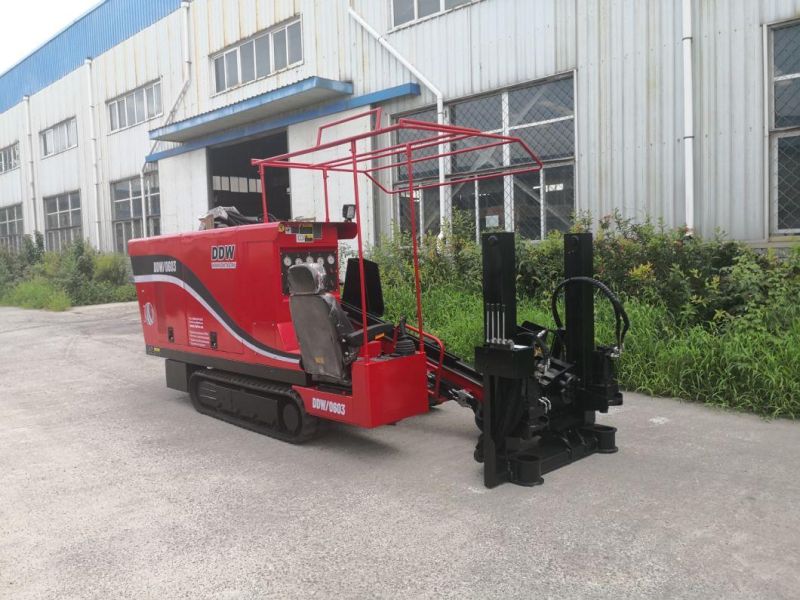

6 Ton HDD Machine
DW/TXS Construction Equipment (Beijing) Co., Ltd.- Condition：New
- Drill Hole Diameter：250-300mm
- Drill Hole Depth：<10m
- Bit Type：Cone Bit
- Drilling Way：Rotary
- Type：Crawler
Base Info
- Model NO.：DDW-06,03
- Power Type：Diesel
- Trademark：DW,TXS
- Origin：Beijing, China
- HS Code：84305090
- Production Capacity：500sets,Year
Description
Technical SpecificationsEngine / Power (kW) 46.3 Rated speed (rpm) 2200 Fuel capacity (L) 130 Hydraulic system Hydraulic capacity (L) 245 Rotary head unit Spindle torque, max (Nm) 2500 Spindle speed, max (r/min) 200 Mast type Rack & pinion Thrust force (kN) 0-60 Pull back force (kN) 0-60 Carriage speed (m/min) 0-65 Free working length (m) 2.43 Entry drill angle (°) 15 Track chassis (rubber track) Ground drive speed (km/h) 3.0 Chassis dimensions(L*W*H) (mm) 1815X1500X415 Width of steel crawler (mm) 250 Clamp Max. clamp Force (kN) 90 Max. break torque (Nm) 6000 Clamp range, max (mm) 84 Distance between wrenches, max (mm) null Transport dimensions(LxWxH) (m) 3.95x 1.3x 1.75 Weight (T) 4.5 Drill rod (Dia. x Length ) (mm) Φ50×2000 Mud pump Max.flow (L/min) 80 Max.pressure (Mpa) 4
