Rig Model

ZJ15CZ

ZJ20CZ

ZJ30CZ

ZJ40CZ

NO.

ITEM

Specification

Specification

Specification

Specification

1

Installed Power

540HP (402KW)

630HP (470KW)

630 HP×2 (470 KW×2)

630 HP×2 (470 KW×2)

2

Max.Hook Load

1350kN

1580kN

2250kN

2250kN

3

Max. Drill String Load

500kN

700KN

1150KN

1150KN

4

Drawworks Rated Power

450HP

600HP

1000HP

1000HP

5

Transmission Mode

Hydraulic+Mechanical

Hydraulic+Mechanical

Hydraulic+Mechanical

Hydraulic+Mechanical

6

Drive Mode

10×8

12×8

14×10

14×10

7

Nominal Drilling Depth (4 1/2"DP)

1500m

2000m

4000m

4000m

8

Mast Height

33m

35m

38m

38m

9

Rig Floor Height

4.5m

4.5m

6m

6m

10

Wirerope Diameter

26mm

29mm

32mm

32mm

11

Hydraulic System

14MPa

14MPa

21MPa

21MPa

12

Pneumatic System

0.8MPa

0.8MPa

0.8MPa

0.8MPa

13

Overall Size

19.37×3.05×4.49m

(Including Mast)
14.6×3.05×3.1m

(Without Mast)

20.1×3.05×4.49m

(Including Mast)
15.56×3.05×3.1m

(Without Mast)

23×3.2×4.8m

(Including Mast)
16. 56×3.2×3.2m

(Without Mast)

23×3.2×4.8m

(Including Mast)
16. 56×3.2×3.2m

 (Without Mast)

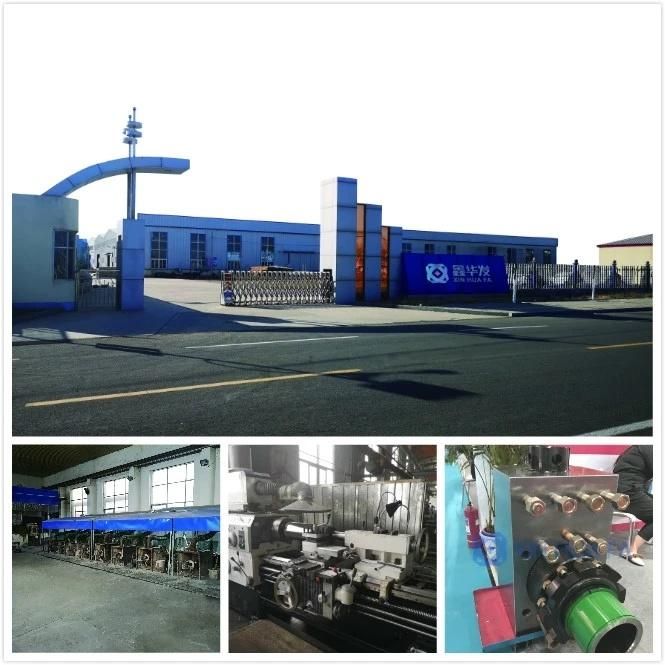

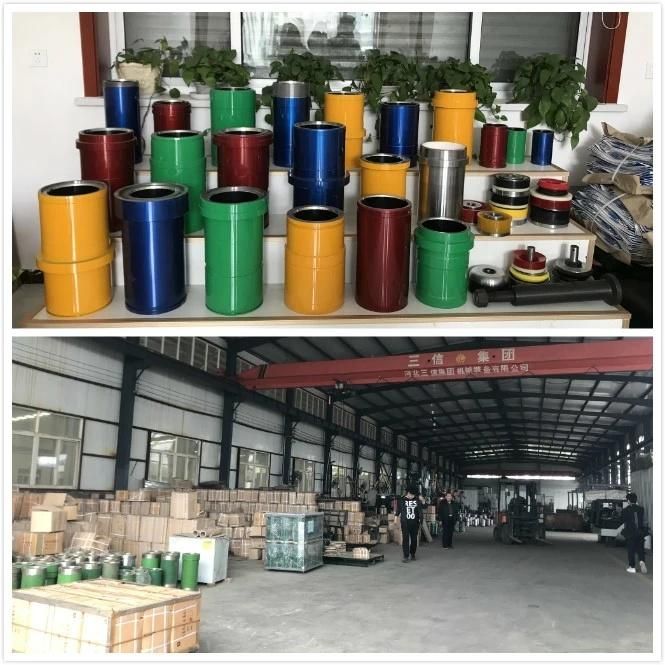

OUR FACOTRY

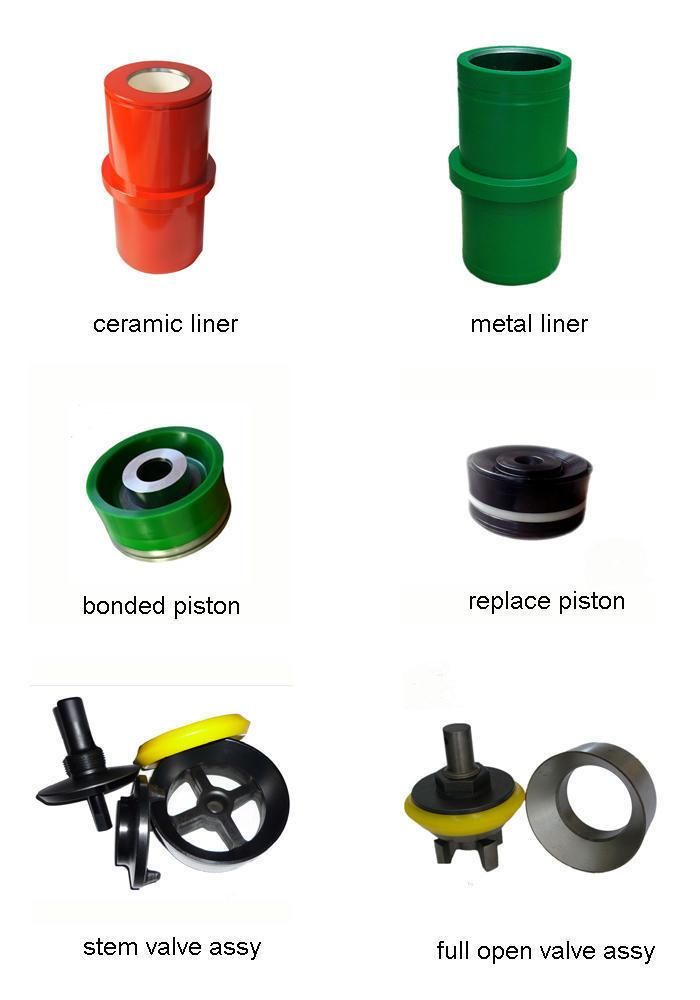

Hebei Xinhuafa Petroleum Technology Co.,Ltd. was established in 2006. We have the specialized technicians,senior engineers and professional marketing team. The company is committed to develop, manufacture and supply a variety array of oilfield equipments, the main products  are drilling equipments & spare parts,such as liners,pistons,valves,and crosshead,v belt,pulley and so on.We have established a complete quality control system, all products & equipments manufactured as per international standard and API standard.

We provide equipments and technology service to oilfield for many years.

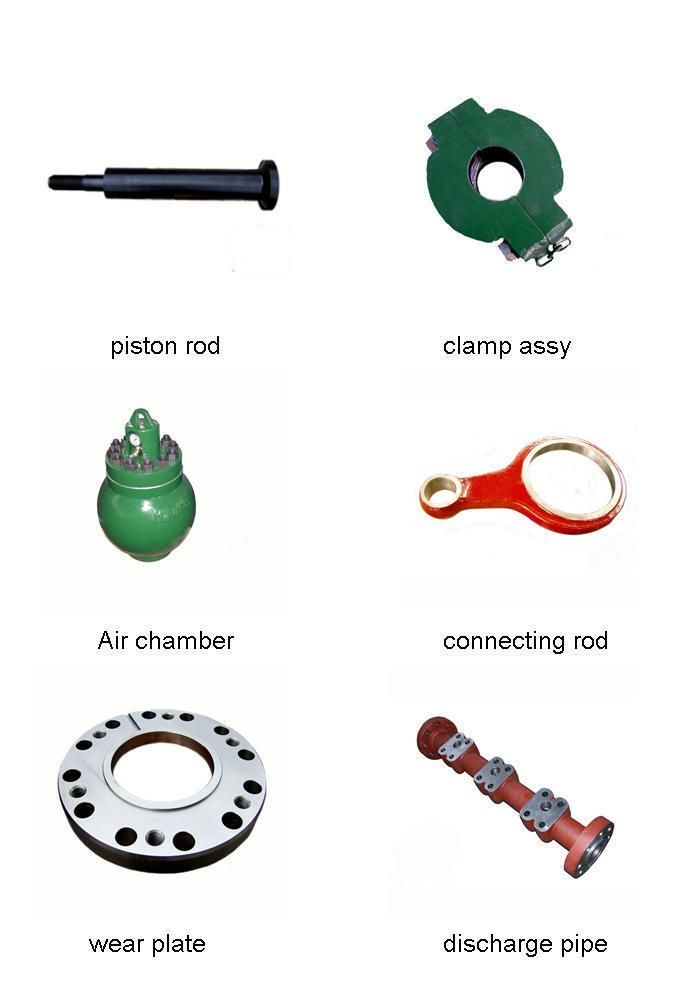

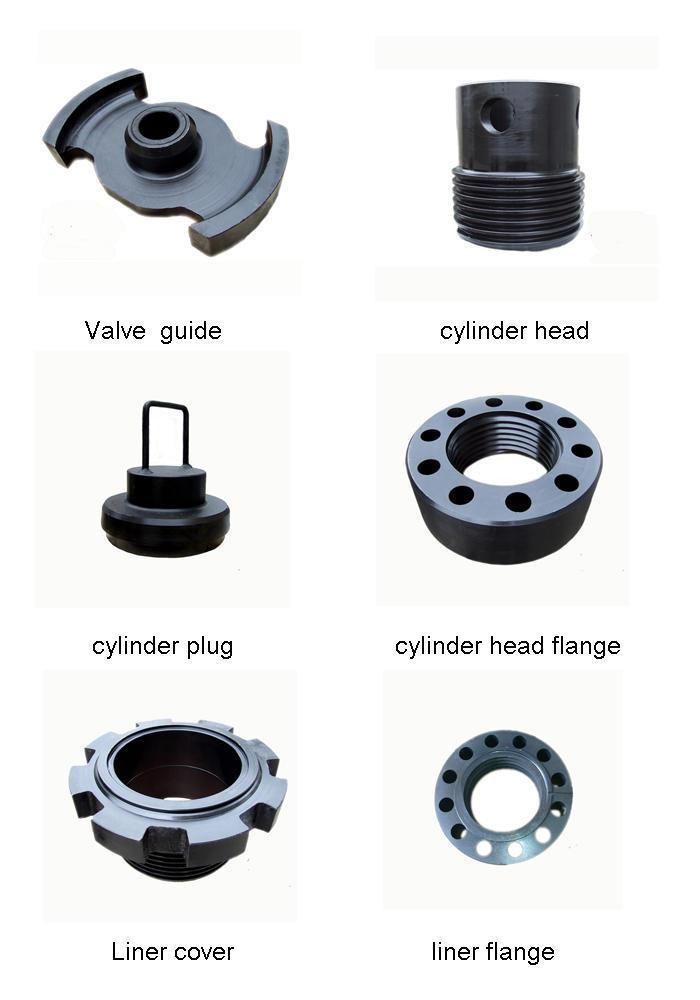

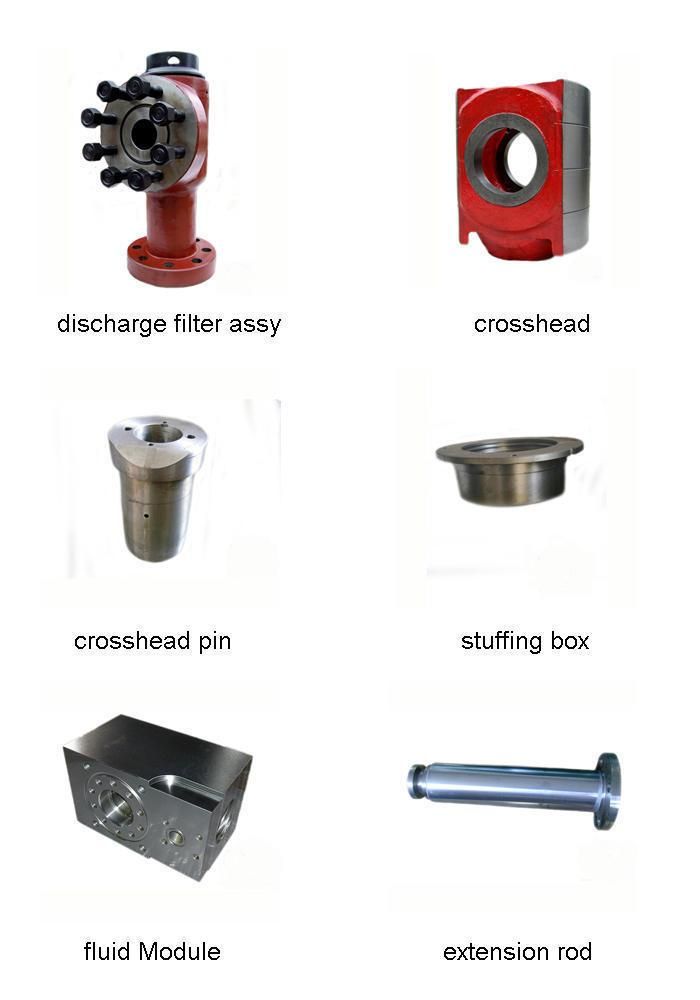

other parts
