Hw425 Blast Hole Separated DTH Surface Drilling Rig Machine
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Yes
- Warranty：ISO
- Certification：CE
- Condition：New
- Motor：Diesel
- Drill Hole Diameter：<100mm
Base Info
- Model NO.：HW425
- Drill Hole Depth：<100m
- Bit Type：Diamond Bit
- Drilling Way：Compound
- Name：DTH Drilling Rig
- Power：58kw
- Hole Depth：30 M
- Drill Pipe Sizes：76 X 3,000 mm
- Hole Dia：110 -138 mm
- Hammer：4",5"
- Rotation Torque(Max.)：3,200 N.M
- Rotation Speed：0 -100 Rpm
- Working Pressure：0.7-2.5MPa
- Length of Feed Beam：5,645 mm
- Feed Travel Length：3,660 mm
- Feed Extension：960 mm
- Feed Speed：26 M,Min
- Feed Force：20 Kn
- Tramming Speed (Max.)：2.5 Km,H
- Transport Package：Stande Package
- Specification：37KW
- Trademark：Hengwang
- Origin：Shandong
- HS Code：8428909090
- Production Capacity：5000sets,Year
Description
Rig Model
Power
Rated Power
HW425
YuchaiYC4DK-80
58 kW
HW425-1
YuchaiYC4DK-100
73.5 kW
HW425G
YuchaiYC4DK-125
90 KW
Hole Depth
30 m
Drill Pipe Sizes
76 X 3,000 mm
Hole Dia
110 -138 mm
Hammer
4"/5"
Rotation Torque(Max.)
3,200 N.m
Rotation Speed
0 -100 rpm
Working Pressure
0.7-2.5Mpa
Length of Feed Beam
5,645 mm
Feed Travel Length
3,660 mm
Feed Extension
960 mm
Feed Speed
26 m/min
Feed Force
20 kN
Pull Up Force
45 kN
Feed Type
Chain & Cylinder
Tramming Speed (Max.)
2.5 km/h
Gradient
25°
Ground Clearance
280 mm
Total Weight
6,230 kg/6,500kg
Transportation Dimensions
7,000 X 2,250 X 2,700mm

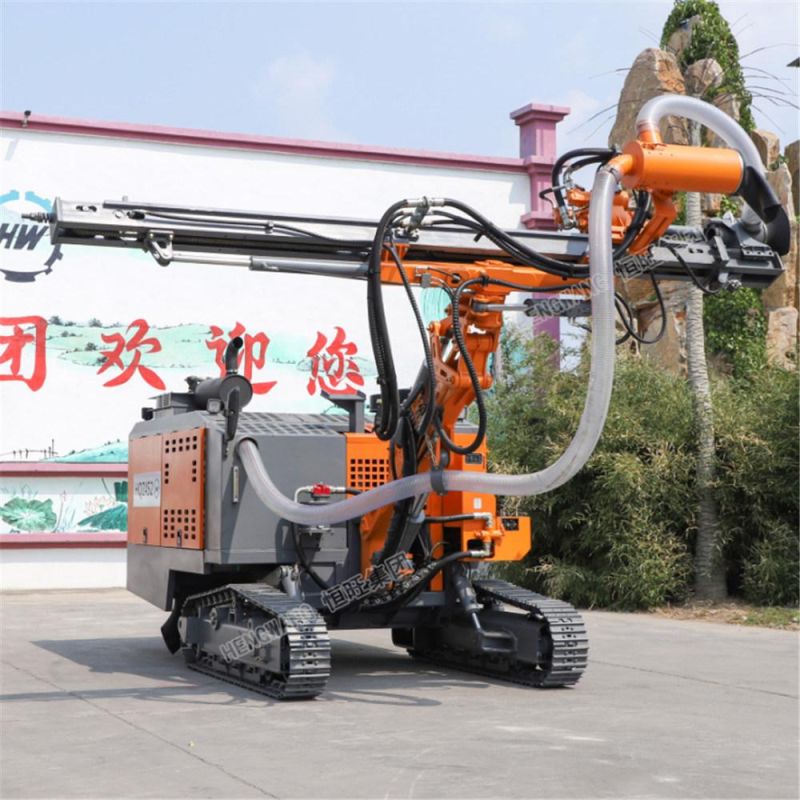

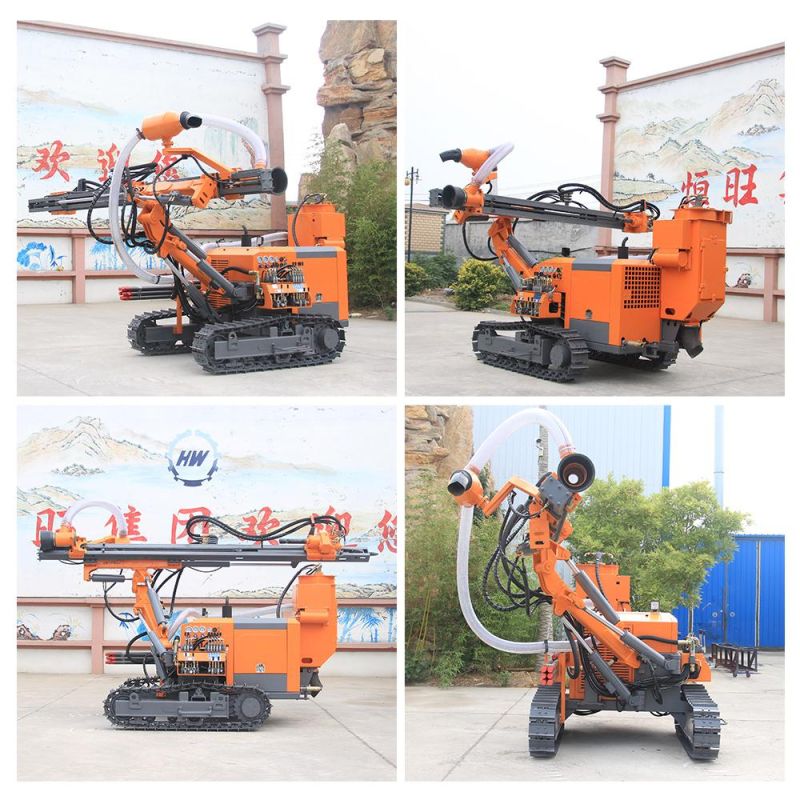

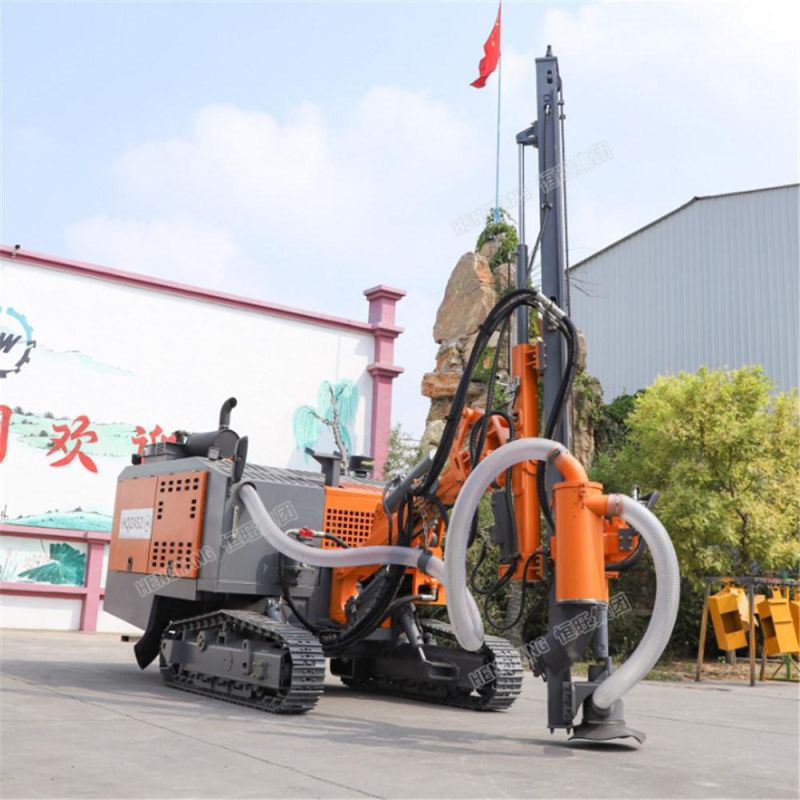

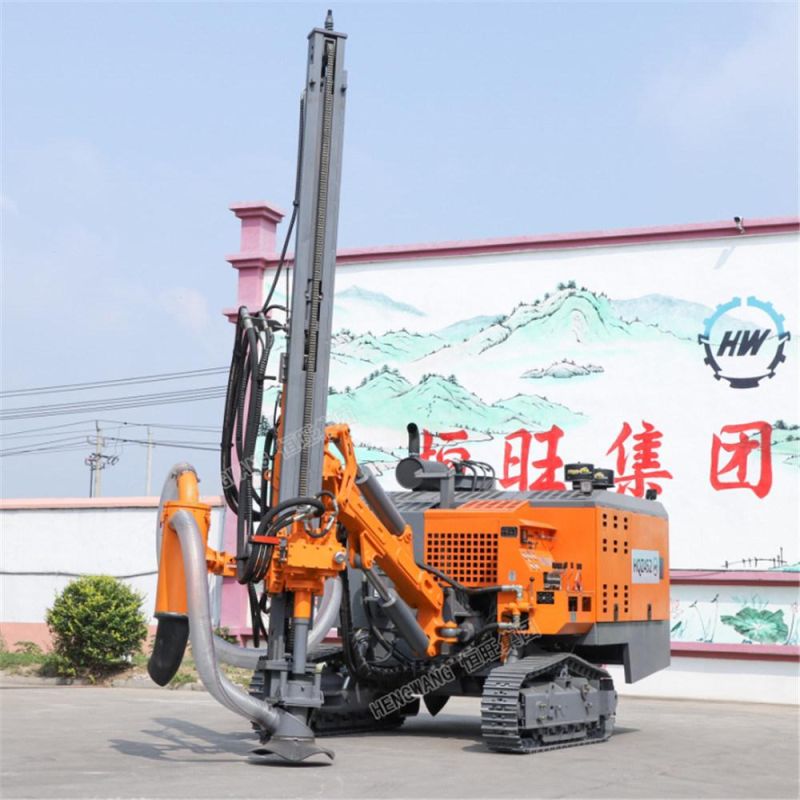

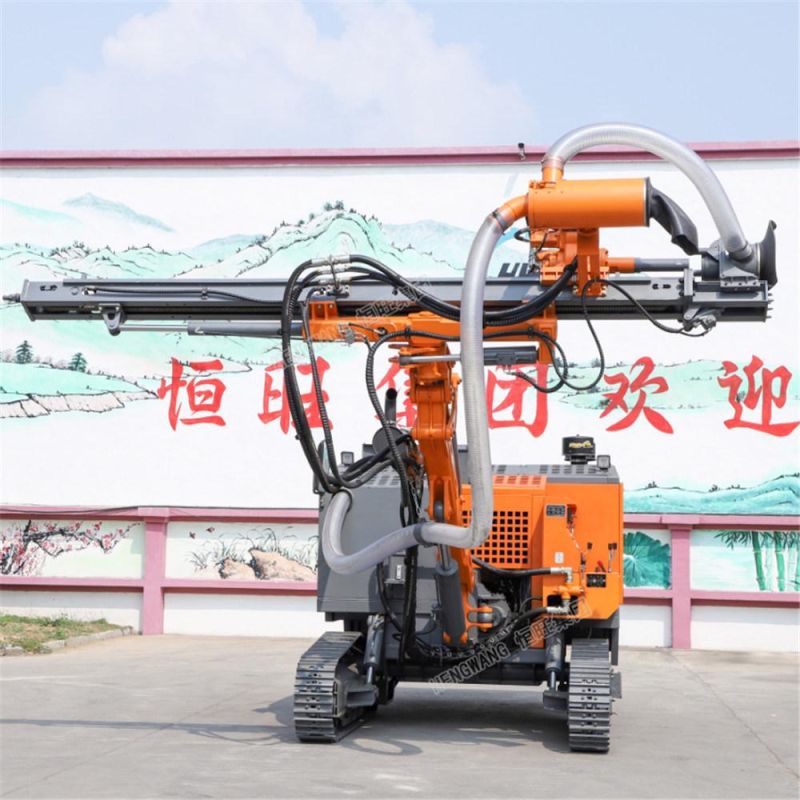

Picture:
