Hydraulic Exploration Water Well Drilling Machine Diesel Power Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：24 Months
- Certification：CE
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：>200m
Base Info
- Bit Type：Diamond Bit
- Drilling Way：Impactor
- Type：Crawler

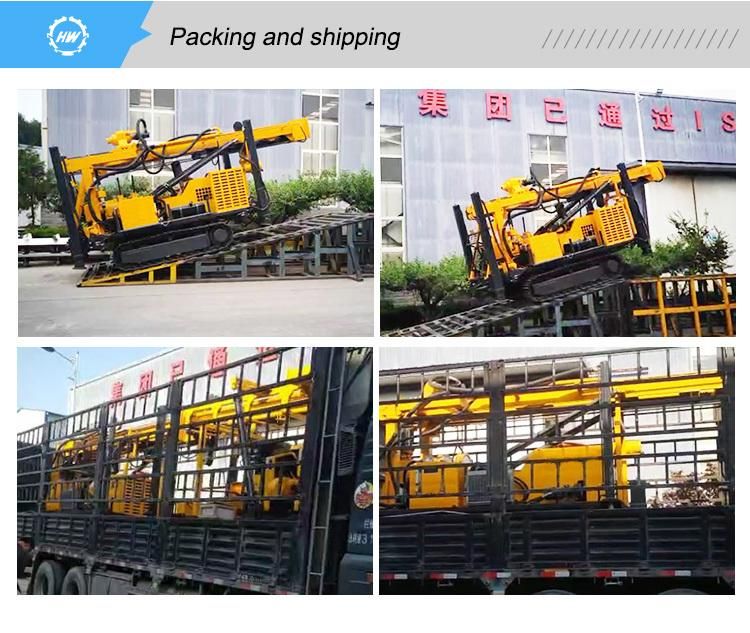

- Transport Package：Load in Container
- Specification：5500*1720*2650 mm
- Trademark：Hengwang
- Origin：Shandong
- Production Capacity：500set,Year
Description
Model
HQZ-180L
Overall weight (T )
3.5
Dimension (mm )
3400*1500*2400
Drilling diameter (mm )
130-245
Drilling depth (m)
180
One-time advance length of the drill(mm)
3000
Traveling speed (km/h )
2.5
Climbing ability (max )
25°
Minimum Ground Clearance (mm)
250
Working Air Pressure (mpa )
1.45 - 2.5
Air consumption(m³/min)
15 - 27
Main machine power (kw)
Yunnei 42Kw
Rotary Speed (rpm)
38 - 80
Rotary torque (Nm)
4000-5000
