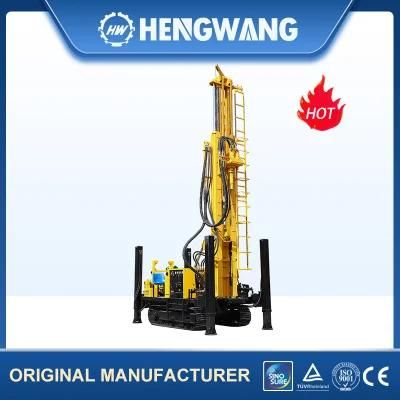

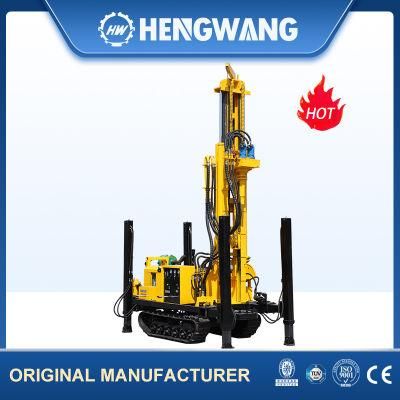

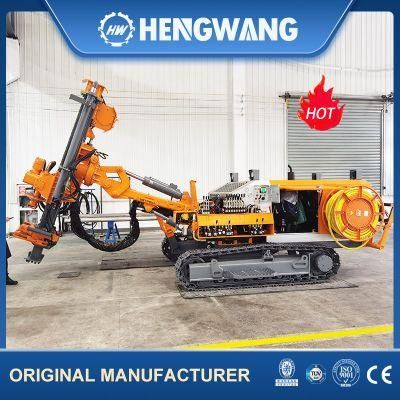

Mining Core Sample Drilling Rig Pneumatic DTH Drilling Rig
Ji Ning Hengwang Mining Machinery Co., Ltd.- After-sales Service：Support
- Warranty：Support
- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：150-200mm
Base Info
- Model NO.：200m
- Drill Hole Depth：150-200m
- Bit Type：DTH Bit
- Drilling Way：Impactor
- Type：Crawler
- Overall Weight：3.5t
- Dimension：3400*1500*2400mm
- Drilling Diameter：130-245mm
- Drilling Depth：180m
- One-Time Advance Length of The Drill：3000mm
- Traveling Speed：2.5km,H
- Drill Rod Length：3m-6m,PC
- Color：Customized
- Drilling Speed：20-40m,H
- Drilling Tools：Drill Rod, Bit, Hammer
- Market：More Than 120 Countries
- Spare Parts：Avaialble
- Key Word：Water Well Drilling Rig
- Power：Diesel Engines
- Chassis：Crawler
- Transport Package：Loading Within Container
- Specification：3400*1500*2400mm
- Trademark：HW
- Origin：China
- HS Code：8430419000
- Production Capacity：8000 Set ,Year
Description
Technical Parameter
Model
HQZ220L
Overall weight (T )
4.2
Dimension (mm )
3800*1700*2350
Drilling diameter (mm )
130-294
Drilling depth (m )
220
One-time advance length of the drill(mm)
3000
Traveling speed (km/h )
2.5
Climbing ability (max )
30
Minimum Ground Clearance (mm)
250
Working Air Pressure (mpa )
1.7-2.5
Air consumption (m³/min)
15-27
Main machine power (kw)
Yunnei 60Kw
Rotary Speed (rpm)
48 - 70
Rotary torque (Nm )
4200-5600
