C Channel Shape Solar Beam Ramming Pile Driver Machine
Taian Longye Import and Export Trade Co., Ltd.- After-sales Service：Available
- Warranty：1 Year
- Certification：CE, ISO 9001:2000, ISO 9001:2008
- Condition：New
- Drive Pile Length：Max 6m
- Impact Frequency：450--800bpm
Base Info
- Model NO.：MZ460Y-3
- Impact Power：1300j
- Piling Efficiency：200-250 Piles Per Day
- Once Promotion(mm)：4100
- Optional Screw Pile：Max 6m
- Rotary Torque：6500nm
- Drilling Hole Diameter：90-400mm
- Hydraulic Pump：USA Permco
- Hydraulic Valve：Italy Hydro
- Mast Pitch：95
- Mast Swinging：40
- Boom Swing：110
- Boom Pitch：30
- Engine Power(Kw)：88
- Transport Package：40′ HQ
- Specification：6240*2250*3000mm
- Trademark：LongYe
- Origin：Shandong, China
- HS Code：8430419000
Description
- Dive maximum 6m long C,H,O,W,Sigma...solar steel posts using ramming head
- Use rotary head to drill ground screw piles or to drill DTH rock holes or drill augering holes
- Working on flat ground or maximum 25 degree slope ground.
| Impact frequency(bpm) | 450--800 |
| Impact(j) | 1300 |
| work pressure(bar) | 130---150 |
| Bore diameter(mm) | 70~160 |
| Bore depth(m) | 30 |
| Air consumption(m³/min) | 8--16 |
| Air pressure(Mpa) | 0.7-1.6 |
| Once promotion(mm) | 4100 |
| Maximum ramming length(mm) | 6000 |
| Skid pitch(°) | 95 |
| Boom swing angle(°) | 110 |
| Boom pitch(°) | 30° |
| Swinging angle of skid(°) | left and right total 40 |
| Host power(KW) | 88 |
| Climb ability(°) | 35 |
| Dimension(L*W*H)(mm) | 6240*2250*3000 |
| Weight(Kg) | 7350 |
| Walk speed(km/h) | 0--2.5 |

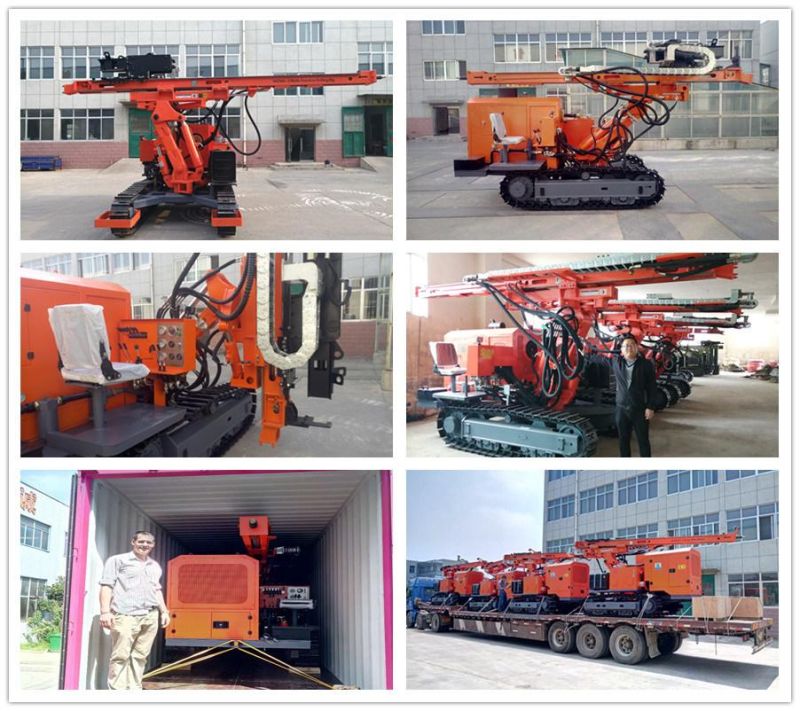

MZ460Y-3 Machine Demo
Remark:
1. The payment terms: Pay 30% deposit in advance by T/T firstly, then pay the balance70% before delivering the products.
2. The time of delivery: Deliver the products within 2 days after receiving the total price.
3. The quotation validity date:40 days; Machine manufacturing time: 5-7 days;
4. Loading: 1 set machine uses 1*40 feet high container; 1*40 feet high container for maximum 2 sets.
....................................................................................................... .
R F Q
Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.
Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.
Q3: What about the shipments and package?
A: 40' container
Machine in nude packing, spare parts in standard export wooden box.
Q4: Have you got any certificate?
A:We have got ISO,CE certificate.
Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.
Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.
Q7: Can I trust your company ?
A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
We are factory manufacturer, and we have our own export license .
