• Model NO.：CTQ-Z115Y-2
• Drill Hole Depth：<100m
• Bit Type：Diamond Bit
• Drilling Way：Impactor
• Bore Hole Diameter：90-140mm
• Depth：40m
• Air Pressure：0.7-1.6
• Air Consumption：7-15
• Once Promotion：3000
• Transport Package：Standard Size
• Specification：5480*1950*3150mm
• Trademark：longye
• Origin：China
• HS Code：8430419000
• Production Capacity：500 Sets,Year

Bore diameter(mm)

90-140

Bore depth(m)

40

Walk speed(km/h)

0-2.5

For rock(F)

6-20

Air pressure(Mpa)

0.7-1.6

Air consumption(m³/min)

7-15

Once promotion(mm)

3000

Skid pitch(°)

Up and down100

Swinging angle of skid(°)

Left and right 55

Boom swing angle(°)

Left and right toal 70

Boom pitch(°)

Up and down total 40

  Rotation Speed(r/min)

0-120

Host Power (Kw)

56

Climb ability(°)

30

Dimension(L*W*H)(mm)

5480*1950*3150

weight(Kg)

5160

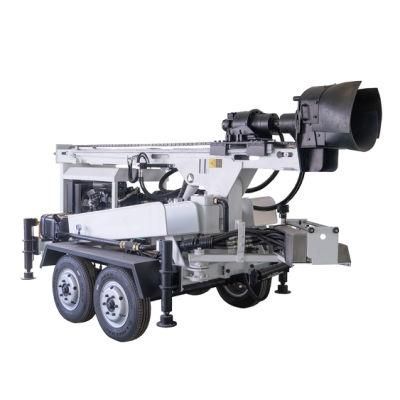

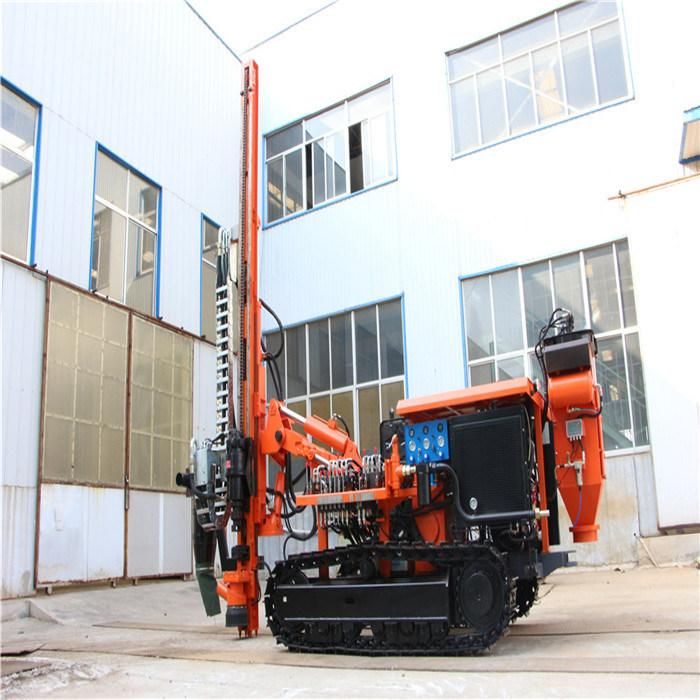

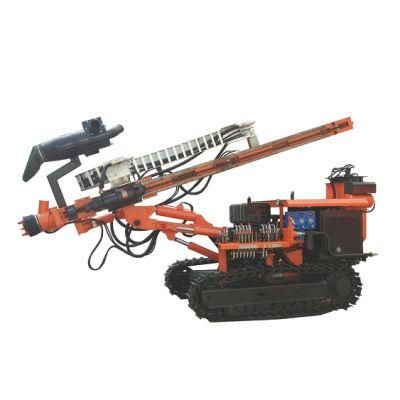

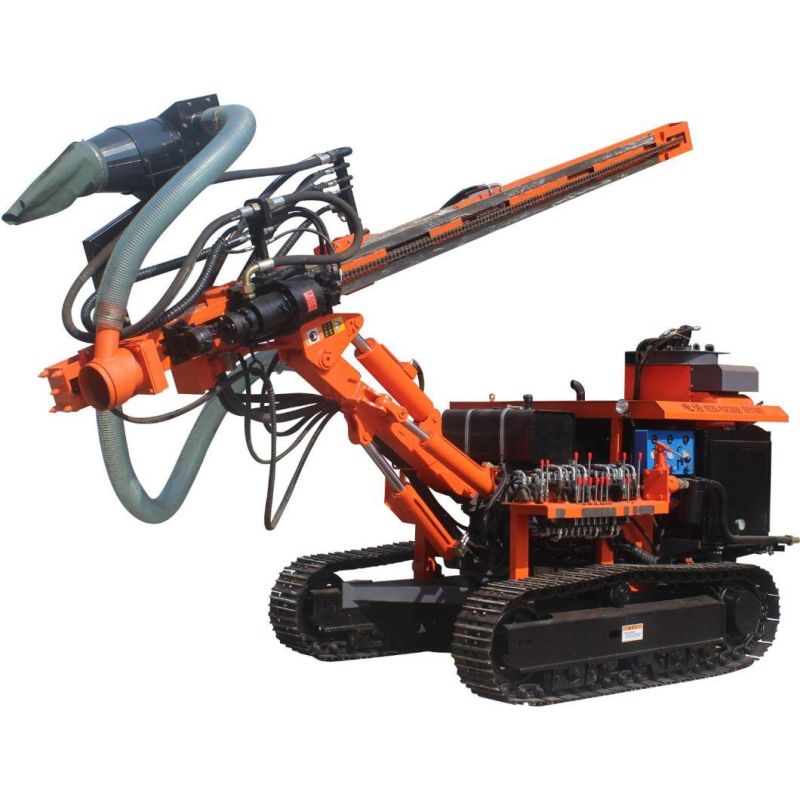

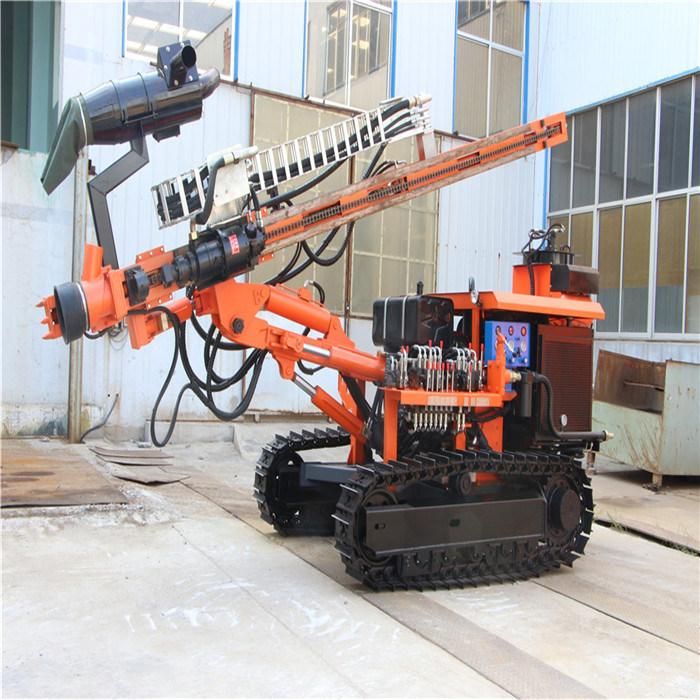

Product Photos

Company Profile

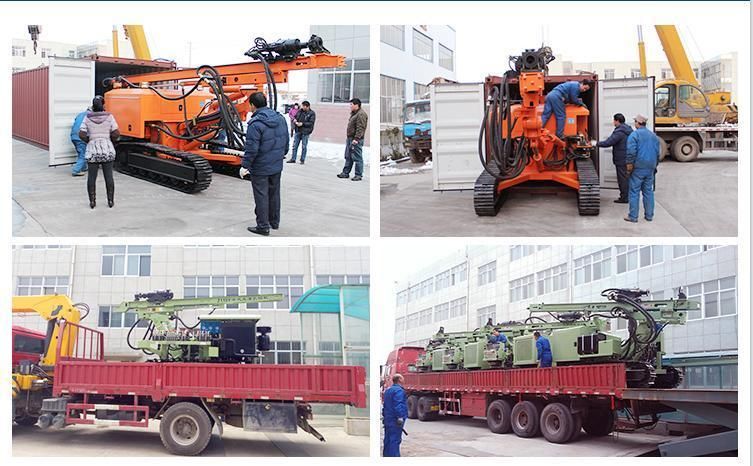

Packages & Shipping
