• Model NO.：HF1100Y
• Drill Hole Depth：1000m
• Bit Type：Tricone Bit,DTH Hammer
• Drilling Way：Impactor
• Type：Drilling Machine
• Suitable Earth Layers：Soil, Sand, Gravel, Cobble, Rocks
• Mining Object：Water Wells
• Max Hole Depth：1000m
• Hole Diameter：140-450mm
• Engine Power：167kw
• Rotation Torque：11100n.M
• Length of Drilling Pipe：4.5m
• Pull-Down Pressure：12t
• Lifting Capacity：60t
• Rotating Speed：0-100r,Min
• Efficiency：10-25m,H
• Transport Package：Wooden Box
• Specification：ce
• Trademark：HF
• Origin：Zhengzhou City, China
• HS Code：843041
• Production Capacity：30sets,Month

Overview Product Description

Product Parameters

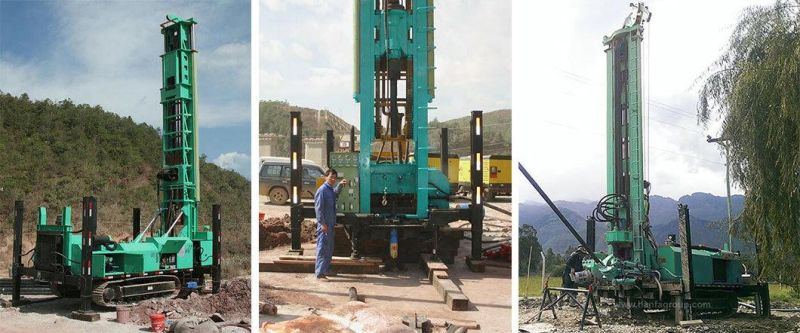

Max hole depth1000mHole diameter140----450mmWind pressure1.05----8.45 MpaAir consumption16-96.4 m³/minLength of drilling pipe4.5mDiameter of drilling pipeΦ89/Φ108/Φ127mmAir reverse circulation double drill pipeΦ127mPull-down pressure12tLifting capacity60tSlow-lifting speed2m/minSlow-forwarding speed0.9m/minFast-lifting speed18m/minFast-forwarding speed37m/minRotating torque11100NmRotating speed0-100r/minThe capacity of main windlass2.5t steel wire Φ12mMud pump flow600L/minCentrifugal flow1300L/minEngine167kw/380vEfficiency10-25m/hGrade ability15°Total Weight16.8tonDimension (L * W * H)7302*2200*2670mmWorking Site

Company Profile

FAQ

1. Are you a trading company or a manufacturer?
We are a professional manufacturer. Our factory mainly produces water well drilling rigs, core drilling rigs, down-the-hole drilling rigs, pile drivers, etc. The products have been exported to hundreds of countries around the world and enjoy a high reputation all over the world.

2. How is the quality of your machine?
Our products pass strict quality inspections before they leave the factory to ensure that they are qualified before they are shipped.

3. How to inspect the goods?
1) Support customers to come to the factory for on-site inspection.
2) Support customers to designate third-party companies to inspect goods.
3) Support video inspection.

4. Do you have after-sales service?
Yes, we have a dedicated service team that will provide you with professional technical guidance. If you need, we can send our engineers to your workplace and provide training for your employees.

5. How about quality assurance?
We provide a one-year quality guarantee for the main machine of the machine.

6. How long is your delivery cycle?
1) In the case of stock, we can deliver the machine within 7 days.
2) Under standard production, we can deliver the machine within 15-20 days.
3) In the case of customization, we can deliver the machine within 20-25 days.
