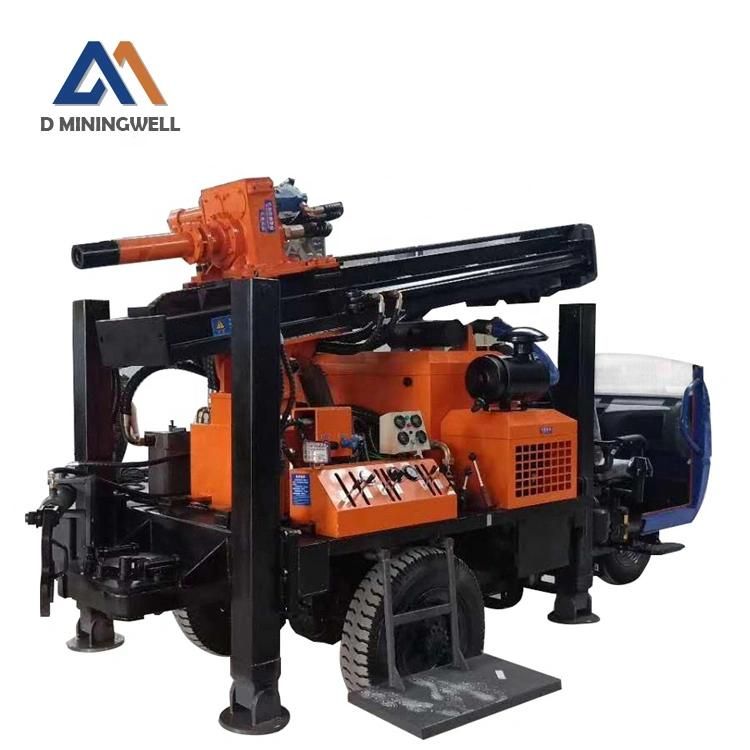

65kw Fyx200 Water Well Drilling Rig Machine with Ruber Crawler Electric Welding
Zhejiang Miningwell Supply Chain Management Co., Ltd.- After-sales Service：Service Provided:Video Technical Support
- Warranty：1 Year
- Certification：ISO 9001:2000
- Condition：New
- Drill Hole Diameter：140-203mm
- Drill Hole Depth：200m
Base Info
- Model NO.：FYX200
- Type：Crawler
- Specification：3950*1700*2300mm
- Origin：Zhejiang
- Production Capacity：20,Month
Description
Technical Parameters of FY200 wheeled hydraulic well drillModel FY200 Dimension 3950*1700*2300mm The hole diameter 140-254mm Drilling depth 200m One-time advance length 3.3m Power 65kW Using air pressure 1.7-2.5MPA Air consumption 17-31m³/min Drill pipe length 1.5m/2m/3m Drill pipe diameter 76mm,89mm Walking speed 2.5km/h Climbing angles 30° Rig lifting force 13T Swing speed 40-65rpm Swing torque 3400-4700N.m
