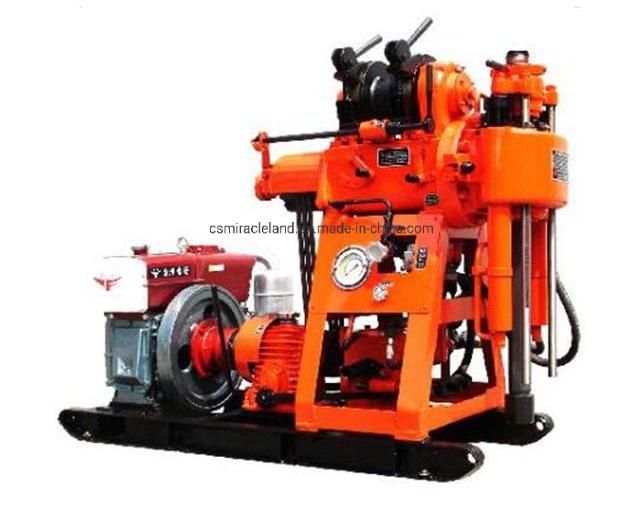

Xy-1 Portable Hydraulic Geotechnical Investigation Drilling Rig

Changsha Miracleland Import & Export Co., Ltd.
  • After-sales Service：1 Year
  • Warranty：1 Year
  • Certification：ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：75-300mm

Base Info

  • Model NO.：XY-1
  • Drill Hole Depth：100m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Usage：Ore, Water Well, Coal
  • Power Type：Diesel
  • Transport Package：in Plywood Case
  • Specification：-1
  • Trademark：HENGTAN
  • Origin：Changsha, Hunan, China
  • HS Code：8430691900
  • Production Capacity：30 Sets,Month

Description

Overview Product Description

Product Parameters



XY-1 drilling rig basic parametersDrilling depth100mDrilling hole diameter75-300mmDrill rod diameter42mmSpindle speed142  285  570r/minSpindle stroke450mmSpindle pull-down max15000NSpindle lifting capacity max25000NMax. Hoist lifting capacity10000NDiesel engine modelS1100Rated speed2200r/minRated power10.53kwMotor modelY132M-4-B3Rated speed1500r/minRated power7.5kwMud pump typeHorizontal reciprocating single-acting piston pumpPump displacement100L/minAllowable working pressure max1.5-0.7MpaRig dimensions(LxWxH)1640x920x1350mmRig weight (engine not included)505kg

Xy-1 Portable Hydraulic Geotechnical Investigation Drilling Rig
