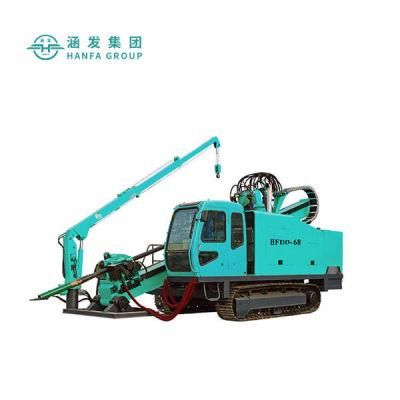

First-Class Products 390kw Mobile Trenchless Drill Rig Machine

Zhengzhou Hanfa Prospecting Machinery Co., Ltd.
  • After-sales Service：Online Support, Field Maintenance
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：390kw
  • Drill Hole Diameter：Drill Rod Specifications:5”

Base Info

  • Model NO.：Hfdd-120
  • Drill Hole Depth：<100m
  • Bit Type：Diamond Bit
  • Drilling Way：Compound
  • Engine Power：390kw
  • Maximum Push-Pull Force：1300kn
  • Spindle Speed：0-45r,Min,0-90r,Min
  • Mast Entry Angle：8-16°
  • Maximum Make-up Torque：70000n.M
  • Maximum Shackle Torque：140000n.M
  • Random Crane：3.2t
  • Maximum Pressure of Mud Pump：8MPa
  • Walking Speed：2-4km,H
  • Drill Rod Specifications：5”
  • Weight：30t
  • Transport Package：Conventional Package
  • Specification：CE, ISO
  • Trademark：HF
  • Origin：Zhengzhou City, China
  • HS Code：843041
  • Production Capacity：30sets,Month

Description

Overview Product Description

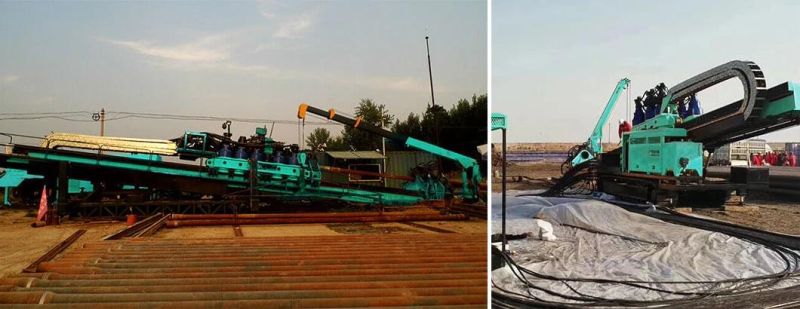

Product Parameters Working Site

First-Class Products 390kw Mobile Trenchless Drill Rig Machine

Company Profile

First-Class Products 390kw Mobile Trenchless Drill Rig MachineFirst-Class Products 390kw Mobile Trenchless Drill Rig MachineFirst-Class Products 390kw Mobile Trenchless Drill Rig MachineFAQ

1.Are you trading company or manufacturer?

We are professional manufacturer, and our factory mainly produce water well drilling rig, core drilling rig, DTH drilling rig, piling rig, etc. Our products have been exported to more than 50 countries of Asia, South America, Africa, and get a good reputation in the world.

2.Are your products qualified?
Yes, our products all have gained ISO certificate,and we have specialized quality inspection department for checking every machine before leaving our factory.

3.How about your machine quality?
All of our machines hold the ISO, QC and TUV certificate, and each set of machine must pass a great number of strict testing in order to offer the best quality to our customers.

4.Do you have after service?
Yes, we have special service team which will offer you professional guidance. If you need, we can send our engineer to your worksite and provid the training for your staff.

5. What about the qaulity warranty?
We offer one-year quality warranty for machines' main body.

6. How long can you deliver the machine?
Generally, we can deliver the machine in 7 days.
