Drilling Rig

Home > Product > Water Well Drilling Rig

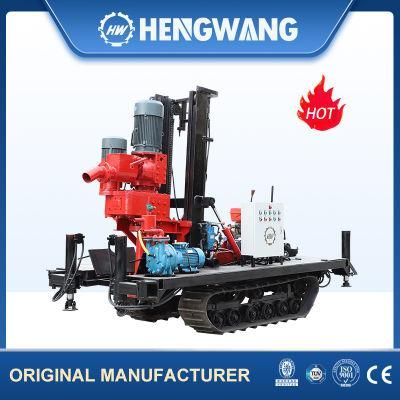

Crawler Type 500mm Diameter Drilling Rig

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：Support
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：300-1000mm

Base Info

  • Model NO.：500mm
  • Drill Hole Depth：50-100m
  • Bit Type：Cone Bit
  • Drilling Way：Rotary
  • Drilling Diameter：300-1000mm Reverse Cycle
  • Drilling Depth：40-80m Reverse Cycle
  • Drill Rod Specifications：φ140*2000
  • Rotary Main Motor：7.5kw
  • Reverse Circulation Pump Motor：15kw
  • Vacuum Pump：4kw
  • Hydraulic Oil Pump：4kw
  • Machine Weight：3.2t
  • Machine Size：4900*2200*2450mm
  • Transport Package：Loaidng Within Container
  • Specification：4900*2200*2450mm
  • Trademark：HW
  • Origin：China
  • Production Capacity：8000 Set ,Year

Description

Specification4900*2200*2450Packing and delivery
By Full container or LCL ,accoding how many set do you want
Crawler Type 500mm Diameter Drilling RigCertification
Our drilling rig had passed CE ISO certificate
Crawler Type 500mm Diameter Drilling RigCompany Profile
Crawler Type 500mm Diameter Drilling Rig
