Large Torque Pneumatic Borehole Water Well DTH Drilling Rig Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：Support
  • Warranty：1 Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：HQZ220L
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Drilling Depth：220m
  • Drilling Diameter：245mm
  • Color：Customized
  • Engine Power：60kw
  • Transport Package：Nude Package in Container
  • Specification：3400*1500*2400 mm
  • Trademark：Hengwang
  • Origin：Shandong, China
  • HS Code：8430419000
  • Production Capacity：500 Sets Per Month

Description

ApplicationLarge Torque Pneumatic Borehole Water Well DTH Drilling Rig MachineLarge Torque Pneumatic Borehole Water Well DTH Drilling Rig Machine
Specification

Model

HQZ220L

Overall weight (T )

4.2

Dimension (mm )

3800*1700*2350

Drilling diameter (mm )

130-294

Drilling depth (m )

220

One-time advance length of the drill(mm)

3000

Traveling speed (km/h )

2.5

Climbing ability (max )

30

Minimum Ground Clearance (mm)

250

Working Air Pressure (mpa )

1.7-2.5

Air consumption (m³/min)

15-27

Main machine power (kw)

Yunnei 60Kw

Rotary Speed (rpm)

48 - 70

Rotary torque (Nm )

4200-5600

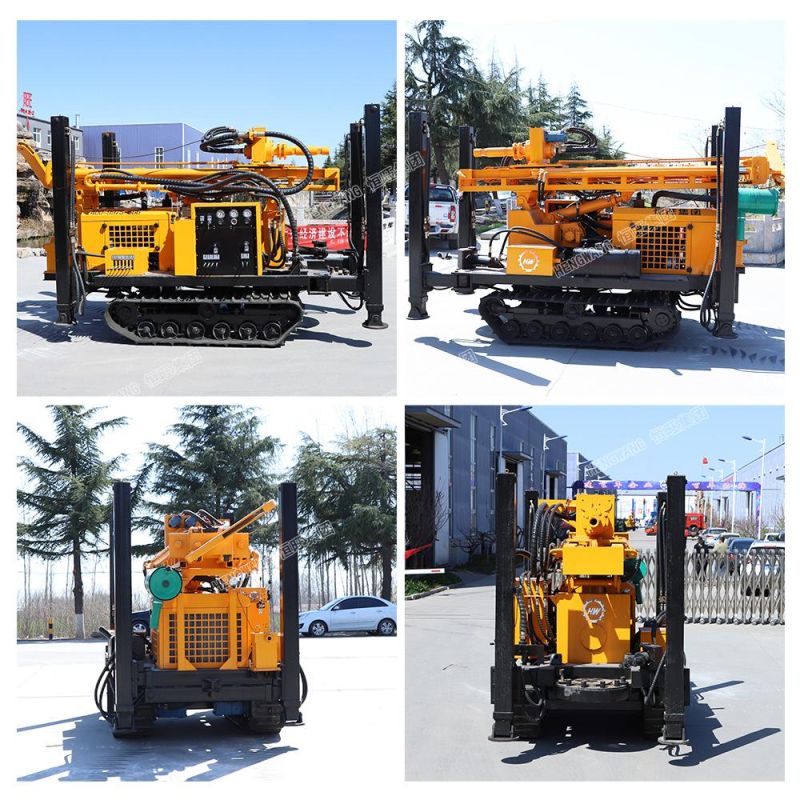

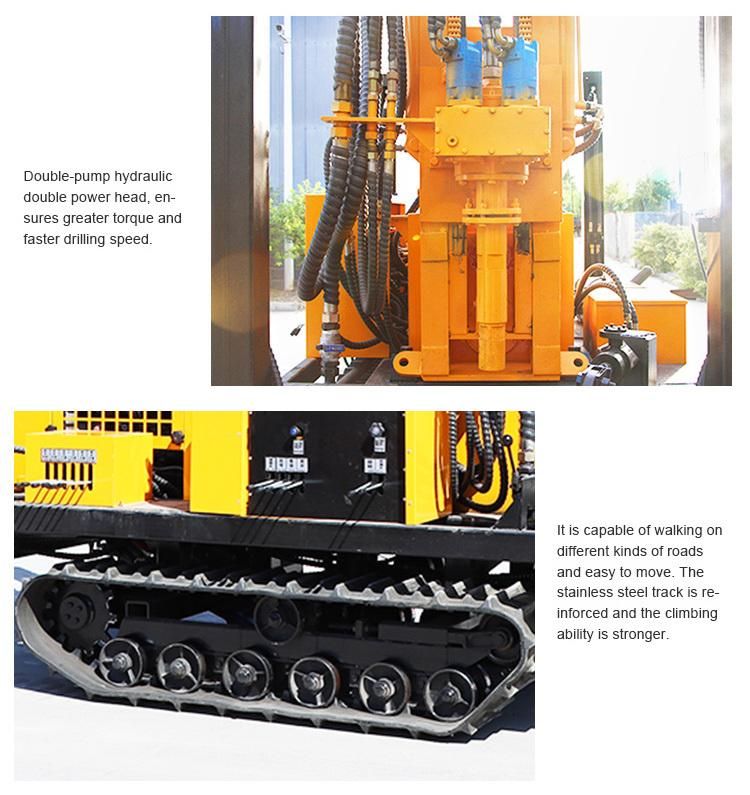

Products DetailsLarge Torque Pneumatic Borehole Water Well DTH Drilling Rig MachineLarge Torque Pneumatic Borehole Water Well DTH Drilling Rig Machine

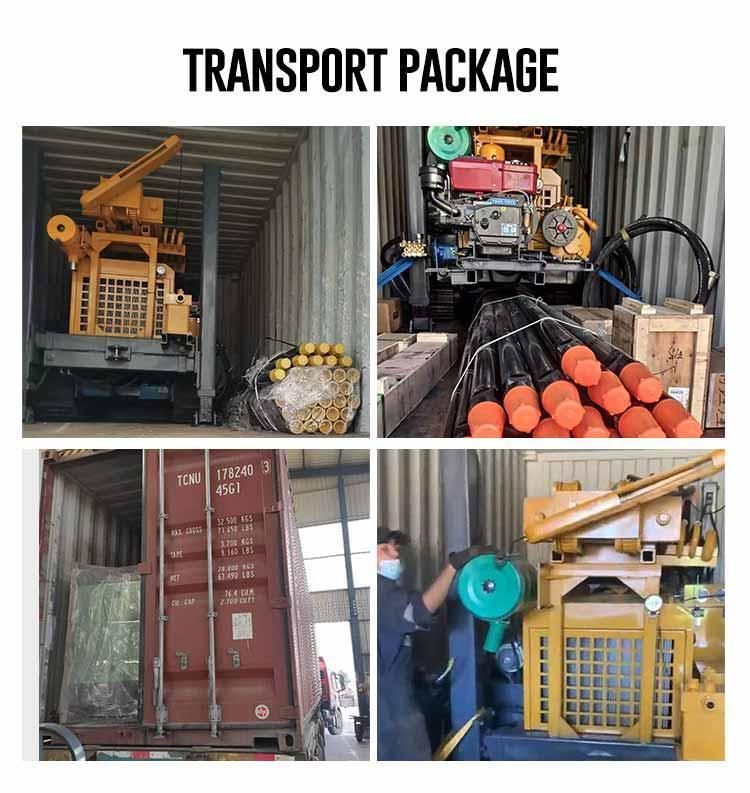

Packing and deliveryLarge Torque Pneumatic Borehole Water Well DTH Drilling Rig Machine



Our factory

Large Torque Pneumatic Borehole Water Well DTH Drilling Rig Machine
