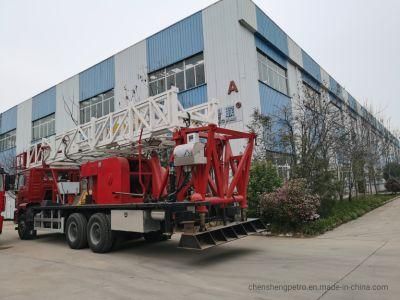

Discount! Xj250HP Truck Mounted Drilling Rig 1500m Drilling Depth Light Workover Rig Zyt
Puyang Chensheng Petroleum Technology Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO 9001:2008
- Condition：New
- Motor：DC Motor
- Drill Hole Diameter：250-300mm
Base Info
- Drill Hole Depth：>300m
- Bit Type：Cone Bit
- Drilling Way：Rotary
- Drilling Depth：2000m
- Wireline Diameter：19
- Workover Depth：3200
- Transport Package：Bulk
- Specification：steel
- Origin：Puyang Henan China
- HS Code：84304129
- Production Capacity：100
Description
Main technical parameters
The depth of the well 3200m (2-7 / 8 " extra oil pipe)
2000m (2-7 / 8 " drill)
Maximum static hook load 700kN
Rated hook load 500kN
Maximum engine net power 247kW/1900rpm
Drawworks maximum input power 250hp

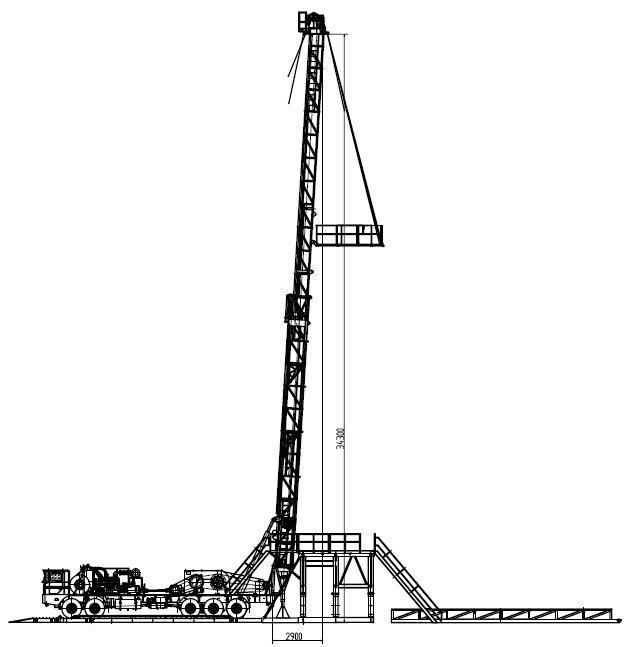

Mast height (ground to crown block ) 2lm ( no monkey board)
Travelling system 4×3
Chassis drive type 6×4
Wireline diameter φ22mm
Maximum speed 60 km/h (speed limit of 45 km/h)>
Close to the angle / departure angle> 18 °/ 12°
Minimum turning radius 14m
Overall size 13200mmX3000mmX4000mm
Total weights about 27,800 k g
Use temperature -19ºC ~ + 45ºC

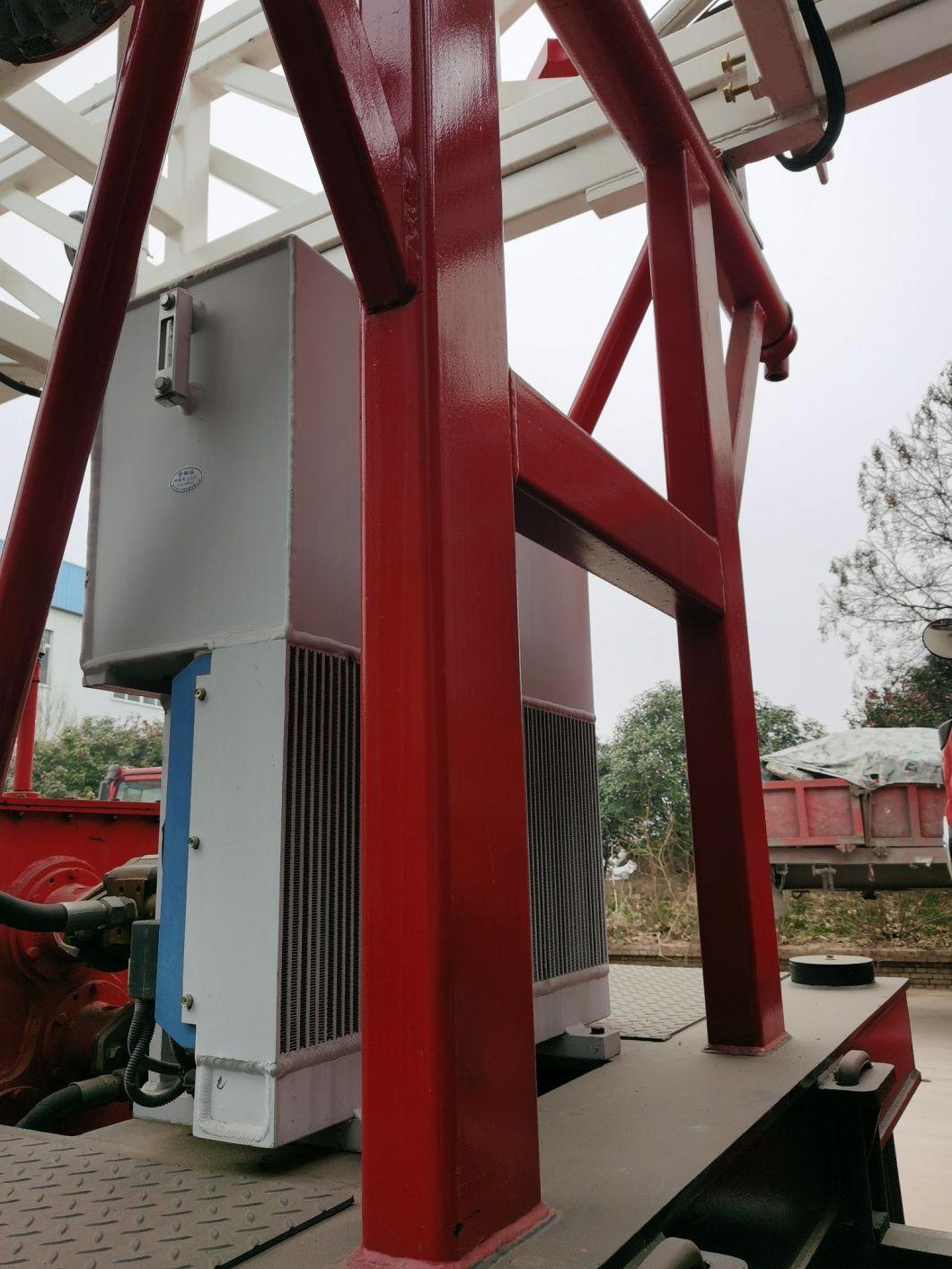

6.3 Explosion-proof electrical parts; explosion-proof distribution box shell of main rig is explosion-proof type, the shell is composed of wiring cavity and main control cavity.
The wiring cavity is an explosion-proof structure, and the inlet and exit line is closed into a cavity, equipped with circuit cable introduction and exit device.There are all wiring diagram, wiring signs and line direction.The box has a stainless steel nameplate and is clearly marked by each circuit,
Chinese and English, the dimensions involved in metric English.
6.4 Well site lighting:
There are 8 lamp lights and 1 aviation barrier lamp as follows:

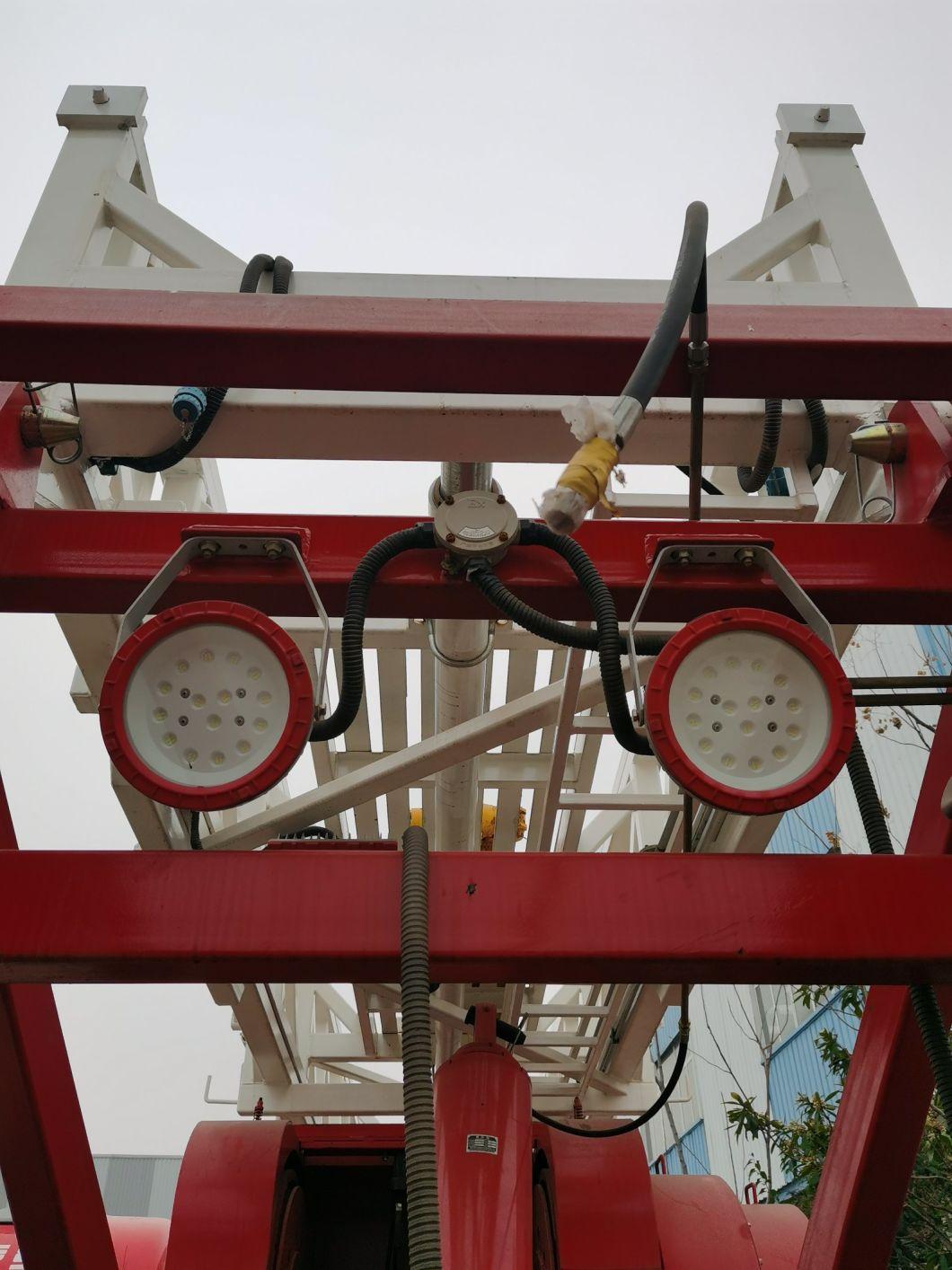

1. There are 4 explosion-proof lamps in the mast area, 1 emergency explosion-proof lamp is installed under the crown block, Other place is installed 3 sets (including 1 set is an emergency explosion-proof lamp).
2. The wellhead are is installed 2 explosion-proof lamps (one of which is emergency explosion-proof lamps) to provide lighting for the wellhead area

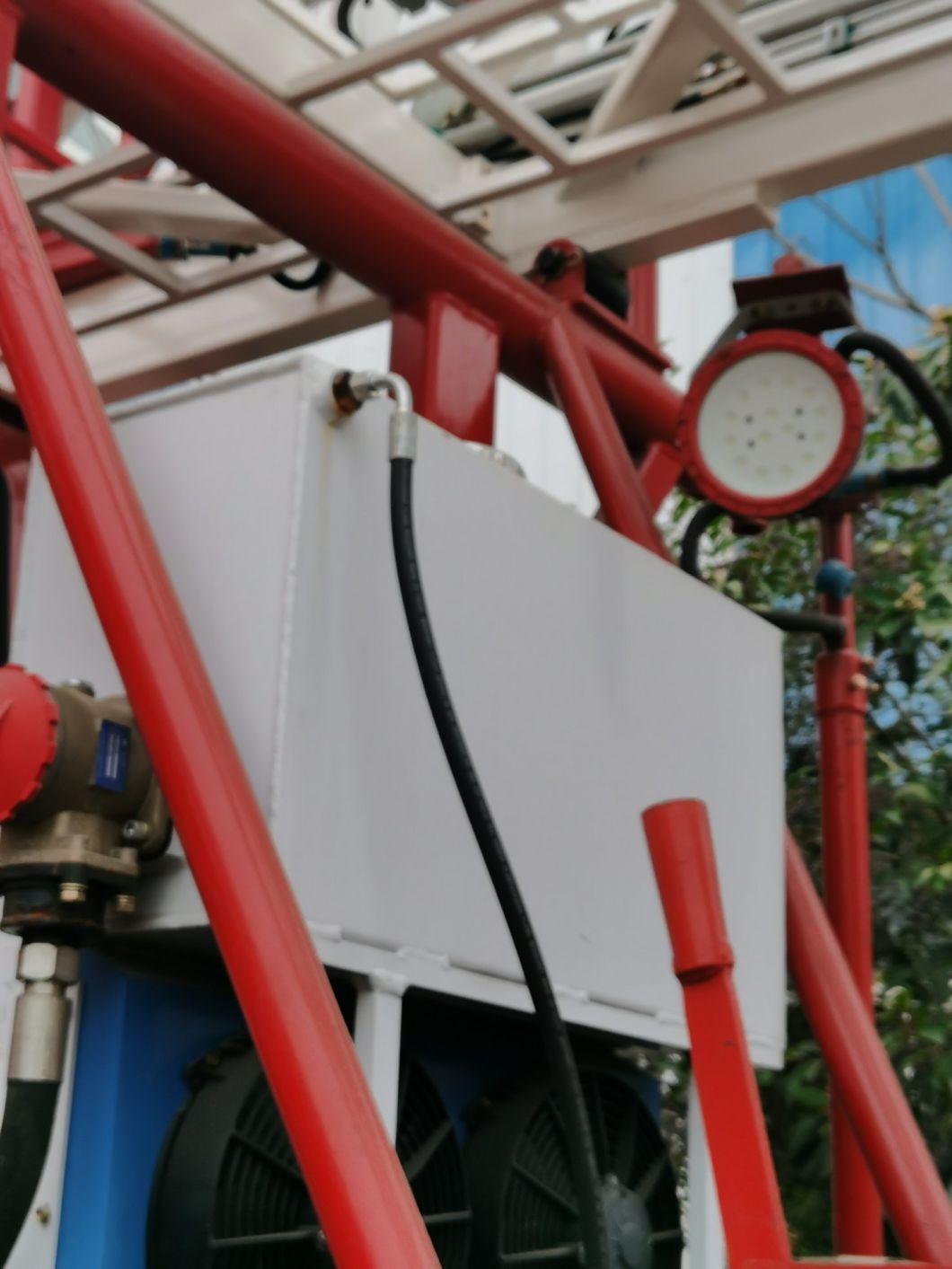

3. One explosion-proof lamp is in the engine area, to provide lighting for the engine area and lamp pole installation.
4.Only one explosion-proof floodlight in the drawworks area to provide lighting for the drawworks and drum.

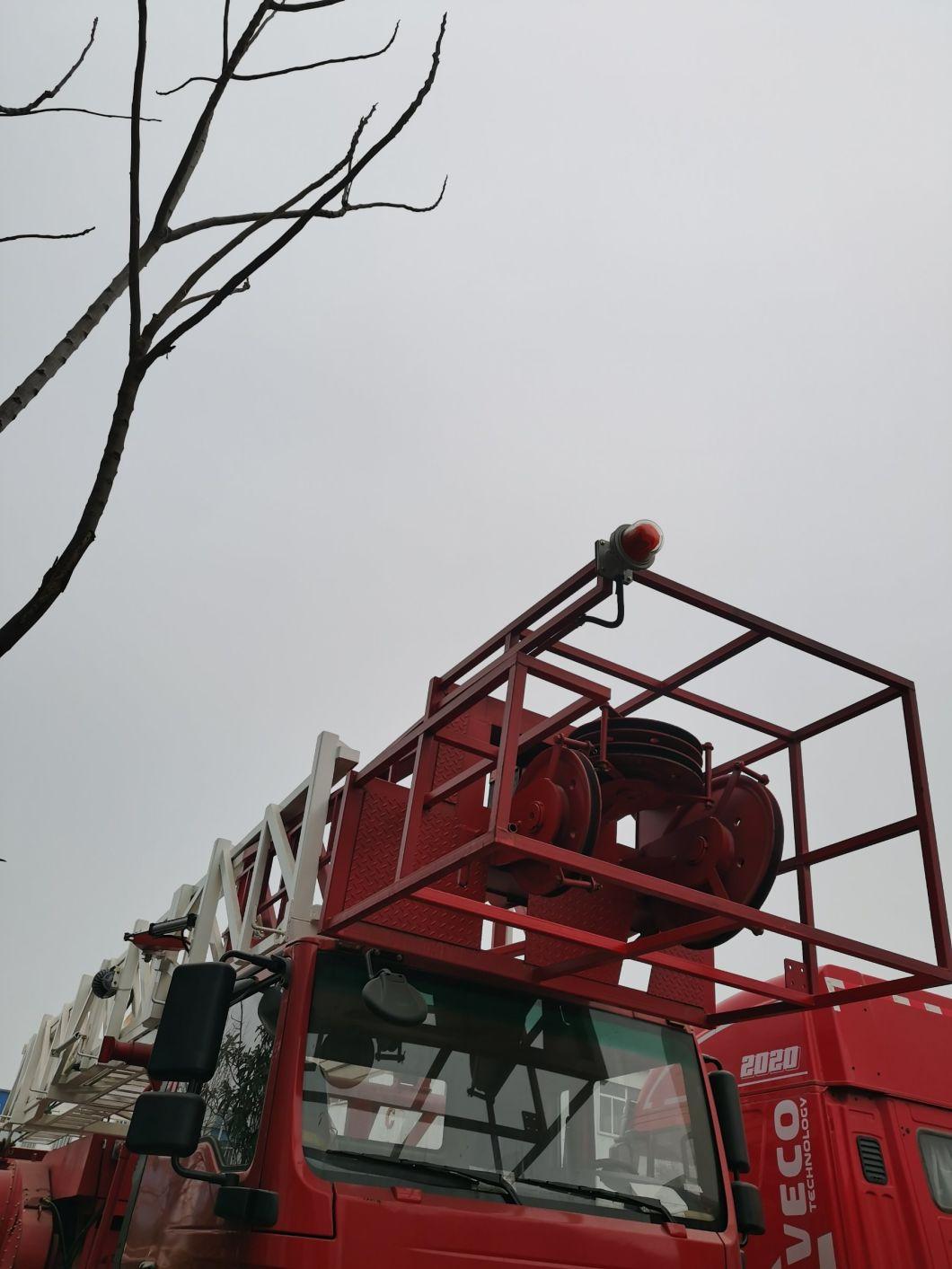

5. One explosion-proof aviation obstruction beacon installed on the top of crown block, LED strobe, red.
