• Model NO.：MDL-200
• Type：Crawler
• Drilling Depth：180-220m
• Drilling Diameter：150-250mm
• Transport Package：FCL
• Specification：6200*2100*2000mm
• Trademark：HW
• Origin：China

Basic Info.

Model NO. MDL-200 Type Crawler Drilling Depth 180-220m Drilling Diameter 150-250mm Transport Package FCL Specification 6200*2100*2000mm Trademark HW Origin China

Product Description

Product Description

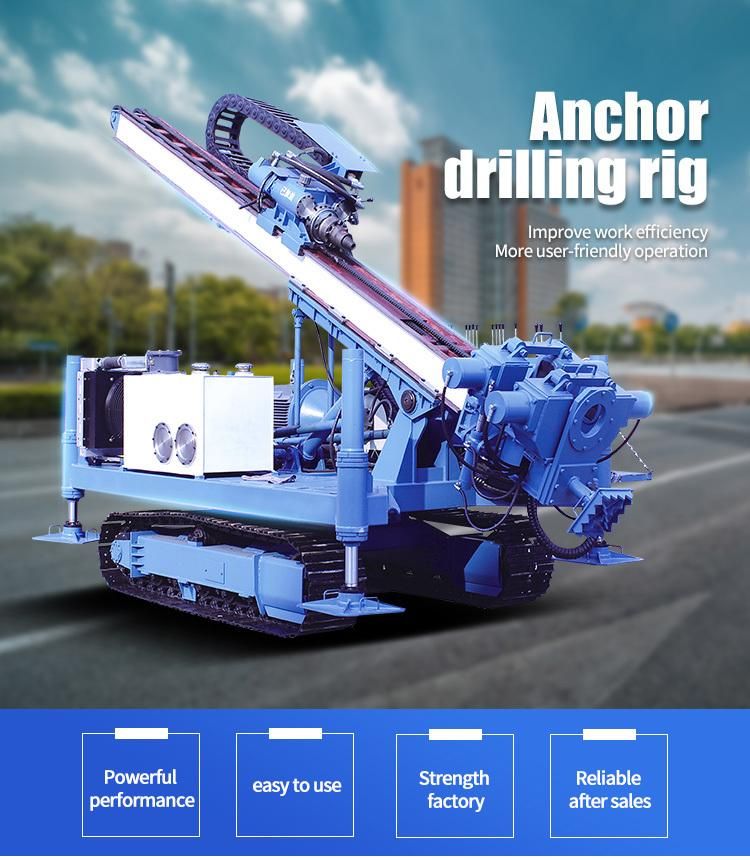

Full Hydraulic Rotary Anchor Drilling RigMDL-80/150/200 model is full hydraulic rotary anchor type drilling rig, Mainly suitablefor urban foundation pit support andconstruction control of displacement geological disasters and other construction projects, The drill structure adopts integral type with working crawler and holder shackle device. Caterpillar chassis moves quickly, the holes are convenient for centering .The holder shackle device can disassemble drill pipe and casing automatically, reducing the intensity of workers and improving the disassembly efficiency.



Technical Parameter

Product Name	Anchor Drilling Rig
Model	MDL-200
Drill diameter	150-250mm
Drill depth	180-220m
Pipe diameter	73/89/102/114mm
Drillling angle	0-90°
Cyrator output speed	40-170r/min
Cyrator output torque	11000N.m
Cyrator pressure	40kN
Driving mode	Crawler
Travel speed	22km/h
Diesel input power	117KW
Motor input power	55+30+2.2

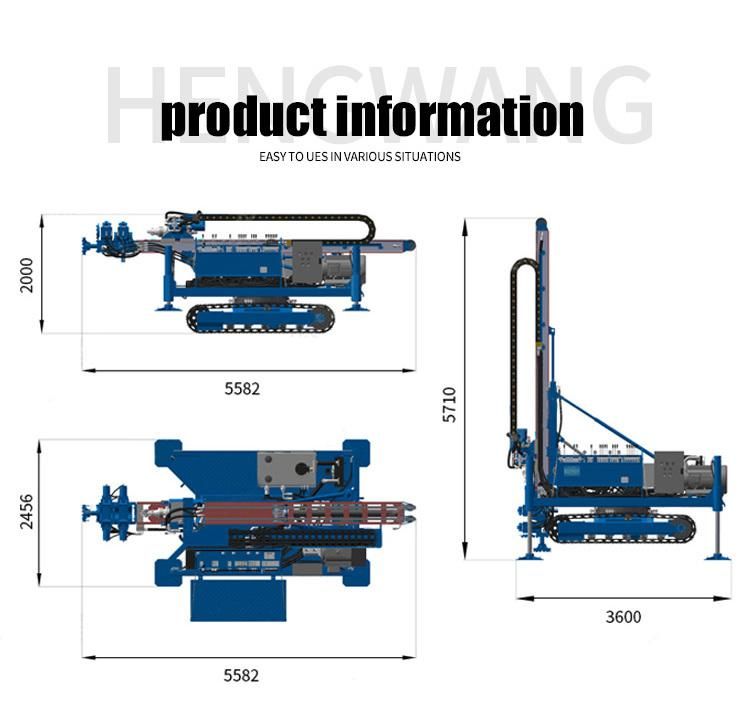

Dimension (L*W*H)	6200*2100*2000mm
Weight	9200KG


Detailed Images

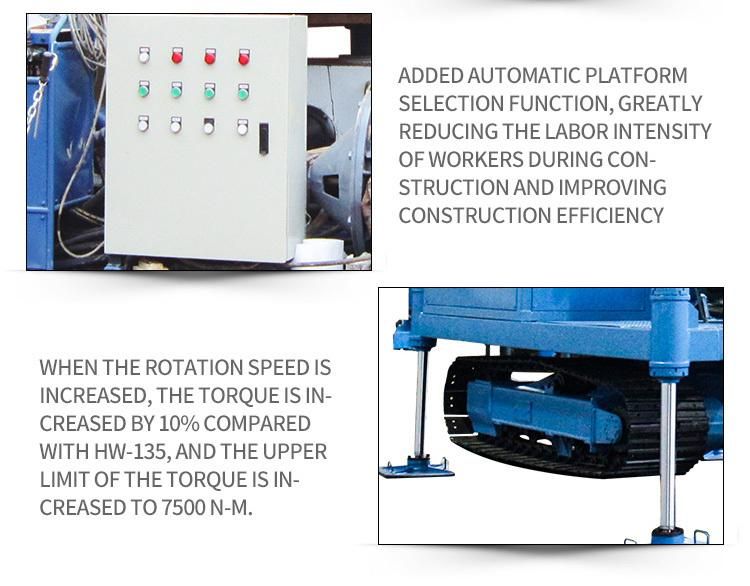

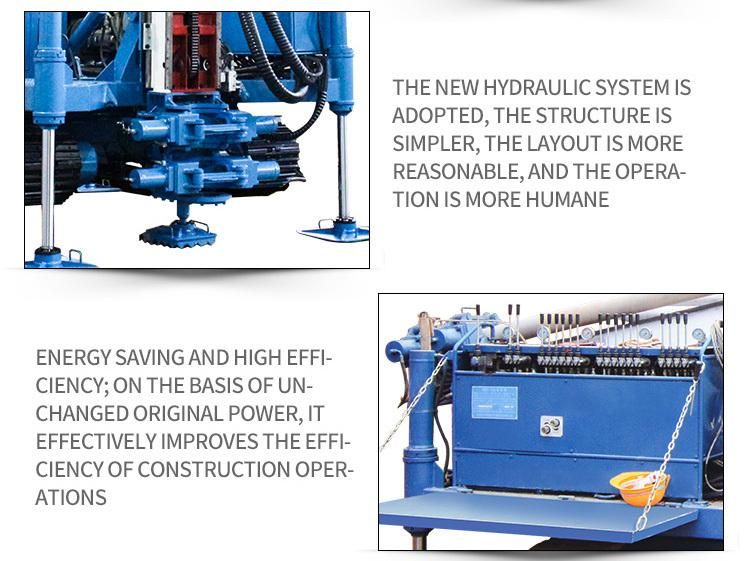

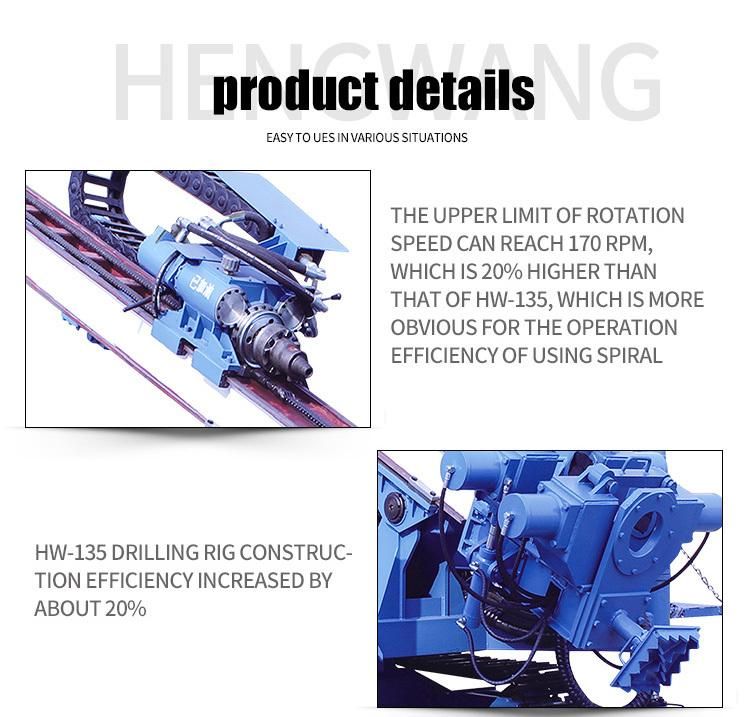

Detailed Images of Anchor Drilling Rig Machine

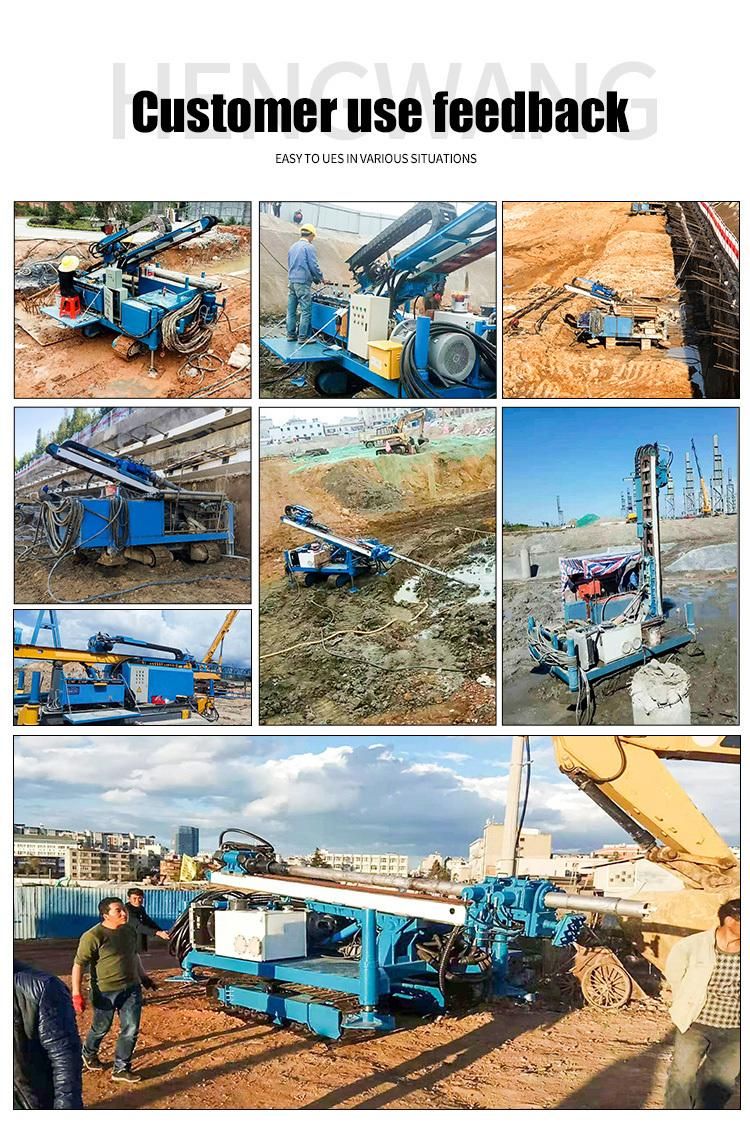

Construction Site of Hydraulic Anchor Drilling

Main feature
1. Full hydraulic control, Operation is convenient and flexble, easy shifting, good maneuverability, savingtime and labor.
2. Drill rotary machine driven by a double hydraulic motor, High output torque, rotary center lower than similar products, greatly improving the drilling machine's drilling stability.
3. New variable angle mechanism to make the hole more convenient, adjustment range is larger,reduce the requirements of the working face.
4. For the customer's local special conditons, the cooling system is optmized to ensure that the hydraulic system when the outdoor temperature is 45ºC, the maximum temperature does not exceed 70ºC.
5. Math dedicated simultaneous casing drill tools (drill pipe, casing, eccentric bit, etc.), in the unstableformation with casing wall openings, the conventional button bit use for end-hole. High drilling efficiencyand good quality.
6. Machine is mainly suitable for deep foundation pit anchor support, but also through the rotary spraymodule replacement, so machine can be rotary jet spray construction.
7. can meet three-wing drill drilling, DTH hammer drilling, casing complex drilling, single/double/triple rotary spray, fixed spray, swing spray and so on.
