Dz20/Dz28 Drilling Machine

YANGZHOU RZF IMP. AND EXP. CO., LTD.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Type：Rotary Drilling Rig
  • Power Type：Electric
  • Transport Package：Wooden Box
  • Specification：1150× 1080× 1405

Base Info

  • Model NO.：DZ
  • Trademark：BOLI
  • Origin：China
  • HS Code：8459290000
  • Production Capacity：5000

Description

Model No.UnitDZ 20work table sizemm660×152(25.98"×5.98")cross travel of work tablemm150(5.98")longitudinal travel of work tablemm360(14.17")spindle taper MT3 or R8spindle travelmm80(3.15")spindle speed (9 steps)rpm200-2300max. dixtance spindle to tablemm280(11.02")head tilt left right°±45spindle swivel°360motor powerkw1.1N.W./G.W.kg265/354packing sizemm1150×1080×1405
Standard Accessories:
> Draw bar
> Drilling chuck

Optional Accessories:
> Halogen lamp
> Coolant pump
> 58pcs clamping tool kit
> Milling chuck set Q24-16(8pcs/set)
> End milling cutter set(HSS 20pcs)
> Milling vice QG125(125mm(4.92"))
> Face milling cutter ø63mm(2.48")/MT3
> Steel stand and chip tray
> X/Y/Z 3-axis DRO

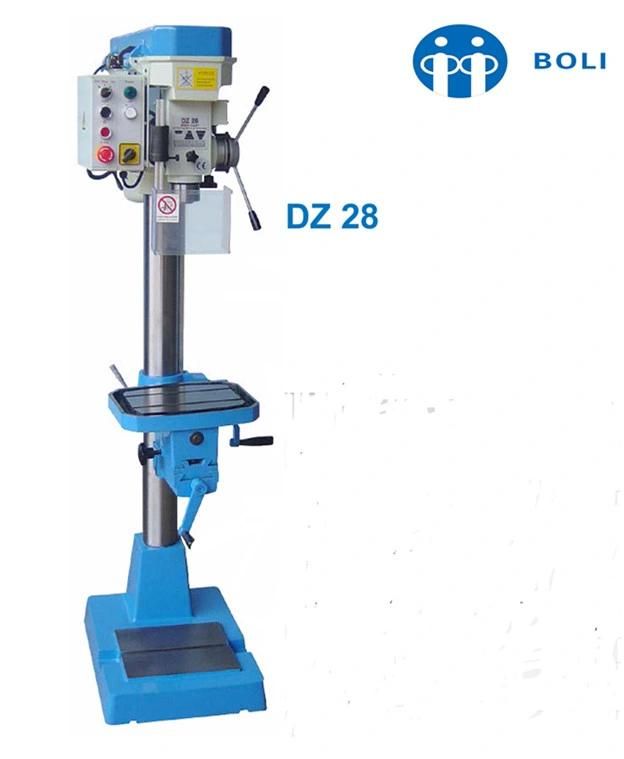

>  DZ28
Dz20/Dz28 Drilling Machine
    Drilling, tapping, boring, reaming
    Worktable with vice, positive spindle lock

    Technical ParametersModel No.UnitDZ 28max. drilling dia.(steel/iron)mm25/20(0.98"/0.79")max. tapping dia.(steel/iron)mm20/16(0.79"/0.63")spindle taper MT3worktable sizemm350×280(13.78"×11.02")spindle travelmm100(3.94")spindle center to columnmm203(7.99")spindle nose to worktablemm900(35.43")distance spindle nose to basemm1200(47.24")spindle speeds rangerpm127~2380(16 speeds)motorkw1N.W/G.Wkg220/250packing sizemm535×820×170020' containersets36
Standard Accessories:
>  Draw bar
>  Draw bar
>  Adapter
>  Taper shank for drilling
>  Chuck
>  Drilling chuck
>  Arbor
>  T slot bolt
>  Washer
>  Nut
>  Tilted wedge
>  Spanner
>  Oil gun

Optional Accessories:
>  Vices
