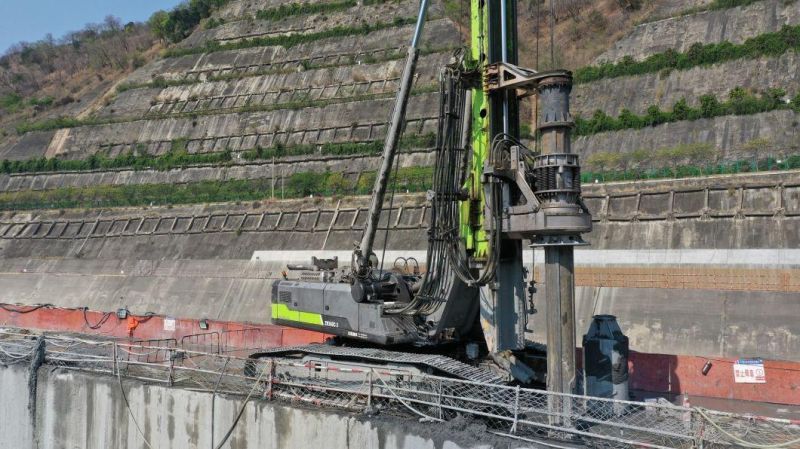

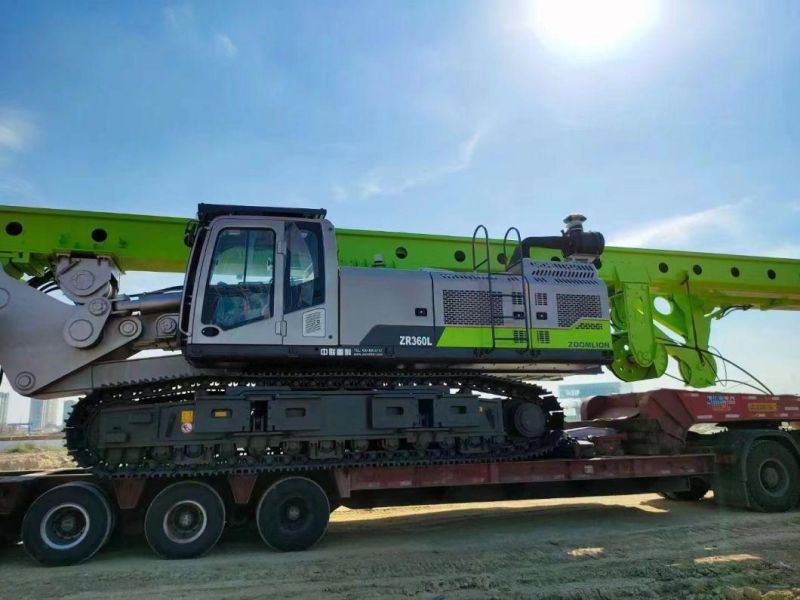

Zoomlion Large 360 Kn. M Rotary Drilling Rig (Crowd Winch/Cylinder)

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Field Installation, Commissioning and Training
  • Warranty：One Year
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>150m

Base Info

  • Model NO.：ZR360L
  • Bit Type：Diamond Bit
  • Drilling Way：Compound
  • Type：Crawler

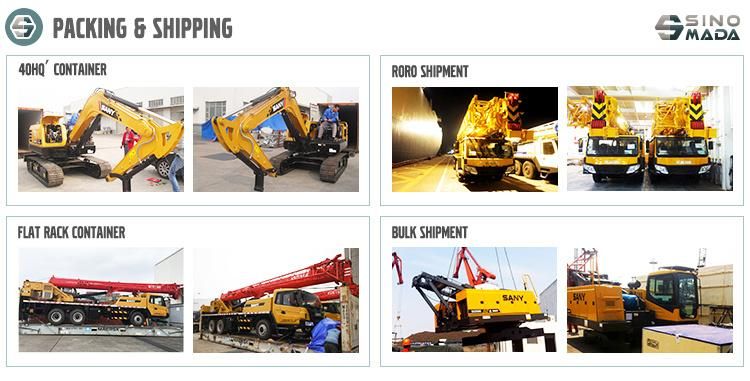

  • Transport Package：by Sea
  • Trademark：Zoomlion
  • Origin：China
  • HS Code：84264910
  • Production Capacity：500,Month

Description

NAMESPEC.Torque(KN.M)360Drilling Diameter(mm)2500Drilling Depth(m)inter-locking58/65Friction88/100Drilling Speed(r/min)6~28Engine ModelCum-mins QSM11Rated Power(kw)298Rated Engine Speed(r/min)1900Max.Crowd Force(kN)300Max.Crowd Cylinder Pull(kN)360Line Pull(main winch)(kN)340Line Speed(main winch)(m/min)72Line Pull(aux.winch)(kN)90Line Speed(aux.winch)(m/min)70Operating Mass(t)108Traction Force(kN)560Rope diameter(Main winch)(mm)36Rope diameter(auxiliary winch)(mm)22
