Drilling Rig

5-30m Borehole Core Hydraulic Water Well Drilling Machine

Shandong Tenggong International Trade Co., Ltd.
  • After-sales Service:Video Support
  • Warranty:1 Year
  • Certification:CE
  • Condition:New
  • Drill Hole Diameter:>300mm
  • Drill Hole Depth:10-30m

Base Info

  • Model NO.:DL-360
  • Bit Type:Alloy
  • Drilling Way:Rotary
  • Type:Crawler
  • Product Name:Dl-360 Rotary Drilling Rig
  • MOQ:1 Set
  • Keyword:Pile Driver
  • Color:Customized
  • Engine:Cummins
  • Power:110kw
  • Drill Rod:Square Rod
  • Drilling Tools:Two Drill Bit for Free
  • Drilling Bit:Auger,Bucket,Core Drill Bit and So on
  • Hydraulic System:Kawasaki Double Pump
  • Chassis Length:4700mm
  • Tire:825-16
  • Weight:14t
  • Rotating Speed:10-30rpm
  • Drilling Depth:10-30m
  • Transport Package:Container
  • Specification:9600*2200*3100mm
  • Trademark:Yahe heavy industry
  • Origin:China
  • HS Code:8430509000
  • Production Capacity:10 Sets,Month


Basic Info.

Model NO. DL-360 Bit Type Alloy Drilling Way Rotary Type Crawler Product Name Dl-360 Rotary Drilling Rig MOQ 1 Set Keyword Pile Driver Color Customized Engine Cummins Power 110kw Drill Rod Square Rod Drilling Tools Two Drill Bit for Free Drilling Bit Auger,Bucket,Core Drill Bit and So on Hydraulic System Kawasaki Double Pump Chassis Length 4700mm Tire 825-16 Weight 14t Rotating Speed 10-30rpm Drilling Depth 10-30m Transport Package Container Specification 9600*2200*3100mm Trademark Yahe heavy industry Origin China HS Code 8430509000 Production Capacity 10 Sets/Month

Product Description

Product Details
 High Efficiency and Energy Saving Hydraulic System, Large Torque Full Hydraulic Power Head
 Full hydraulic  type rotary drilling rig adopt pressurized drilling mode,and the power efficiency is significantly improved,matching the different specifications of drilling tools,enabling rotary drilling depth is 5~50m,and pile hole diameter range up to 500-2000mm.

5-30m Borehole Core Hydraulic Water Well Drilling Machine
Working modehydraulic oil cylinder pressure
Drilling diameter (mm)Φ500-Φ1500
drilling depth (m)5-20m
Kelly bar diameter (mm)315
Diamension (mm)9800X2350X3300mm
Total weight (t)13t
Power head max output torque (KN.m)24000N.m
Rotary speed (r/min)10-30RPM
Pressurized oil cylinder max pressure80KN
Pressurized oil cylinder max lifting force80KN
Pressurized oil cylinder max stroke13-20m
Mast sidewards inclination±4°
Mast forwards inclination
Max working pressure20Mpa
pilot pressure12Mpa
Travelling speed (km/h)40 km/h
Diesel engine power (KW)85KW,weichai,water cooling ,turbo charger
Is it customizable?Yes

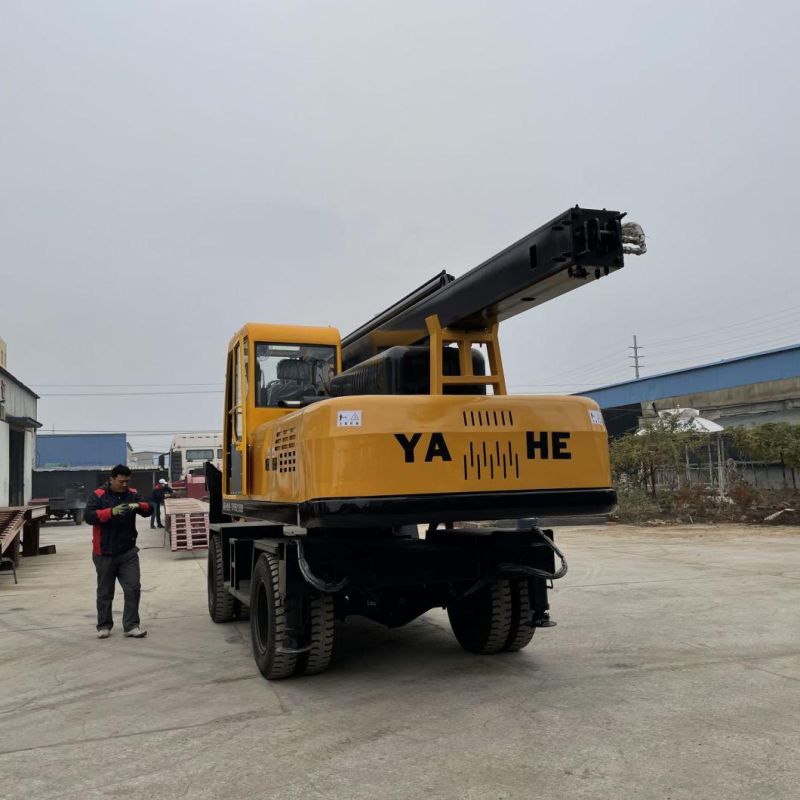

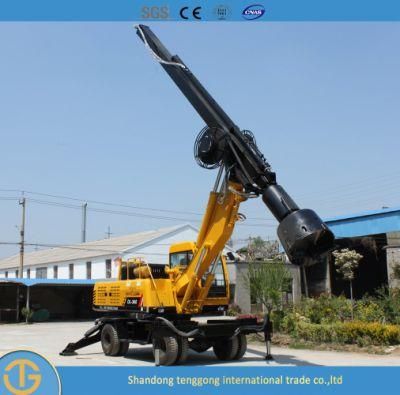

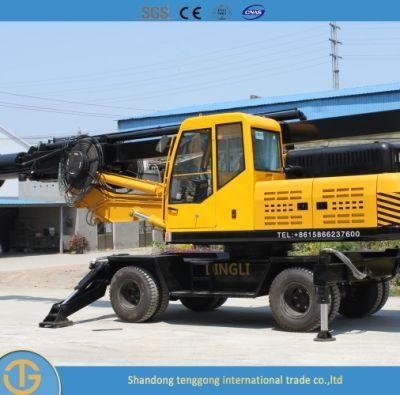

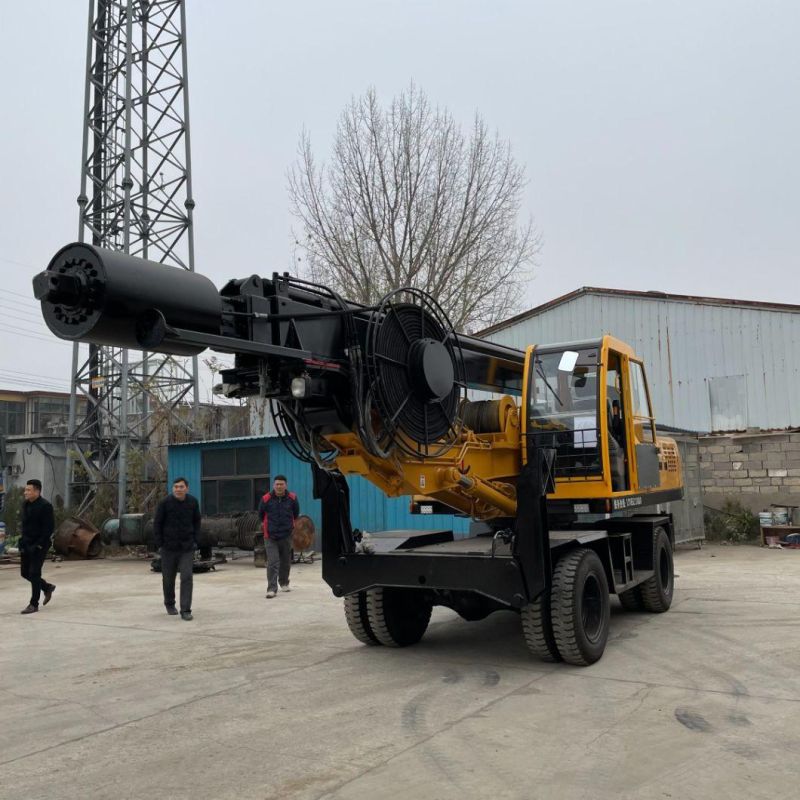

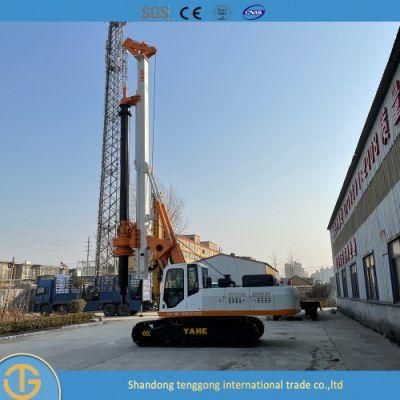

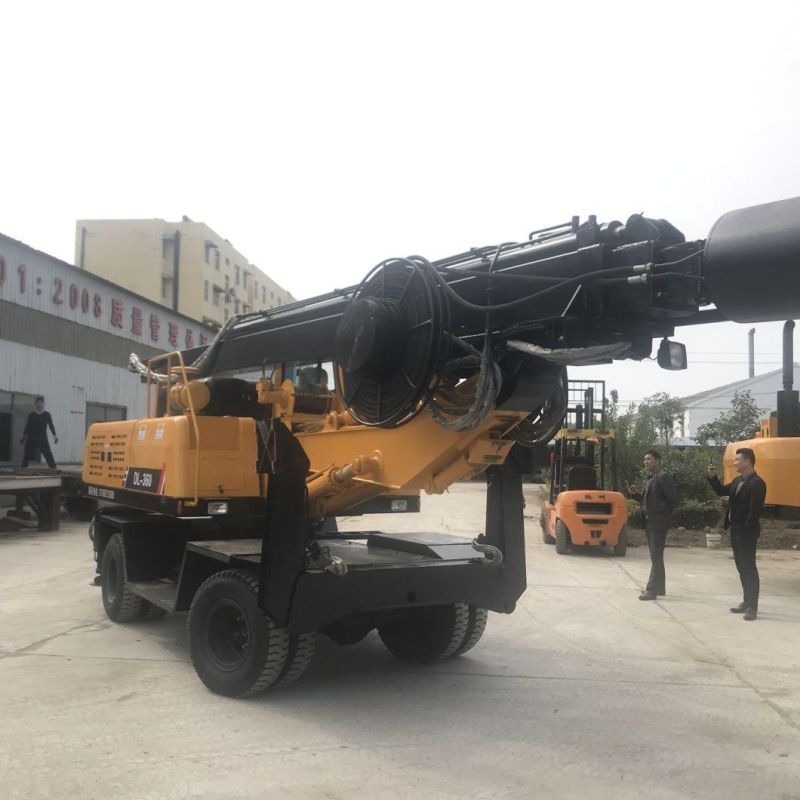

 Machine photo
5-30m Borehole Core Hydraulic Water Well Drilling Machine5-30m Borehole Core Hydraulic Water Well Drilling Machine5-30m Borehole Core Hydraulic Water Well Drilling Machine5-30m Borehole Core Hydraulic Water Well Drilling Machine


At present, our drilling rig has been awarded various international certificates, which support the verification!

5-30m Borehole Core Hydraulic Water Well Drilling Machine

Company profile
    Shandong tenggong International Trade Co., Ltd. is a modern trading company, located in the hometown of Mozi - Shandong Tengzhou. convenient transportation. Our staff are experienced, committed to strict quality inspection and thoughtful customer service, and can discuss customer needs at any time to ensure customer satisfaction. The main sales products are rotary drilling rig, pile driver, CFA screw drill, drilling tools and other construction machinery products.
    It is widely used in urban construction, various highways, railways and other government projects. And won the trust and praise of the majority of users, products not only sell well in small domestic provinces and cities, but also exported to Australia, the Middle East, South America, Southeast Asia, the Russian Federation, Africa and other countries and regions and more than 30 countries. At the same time, we also undertake OEM and ODM orders. Please feel free to contact our customer service center and let us know your purchase requirements, whether you are choosing products from our existing product catalog or seeking help in engineering application!
  Welcome to our factory, looking forward to establishing long-term cooperation with you!

5-30m Borehole Core Hydraulic Water Well Drilling Machine

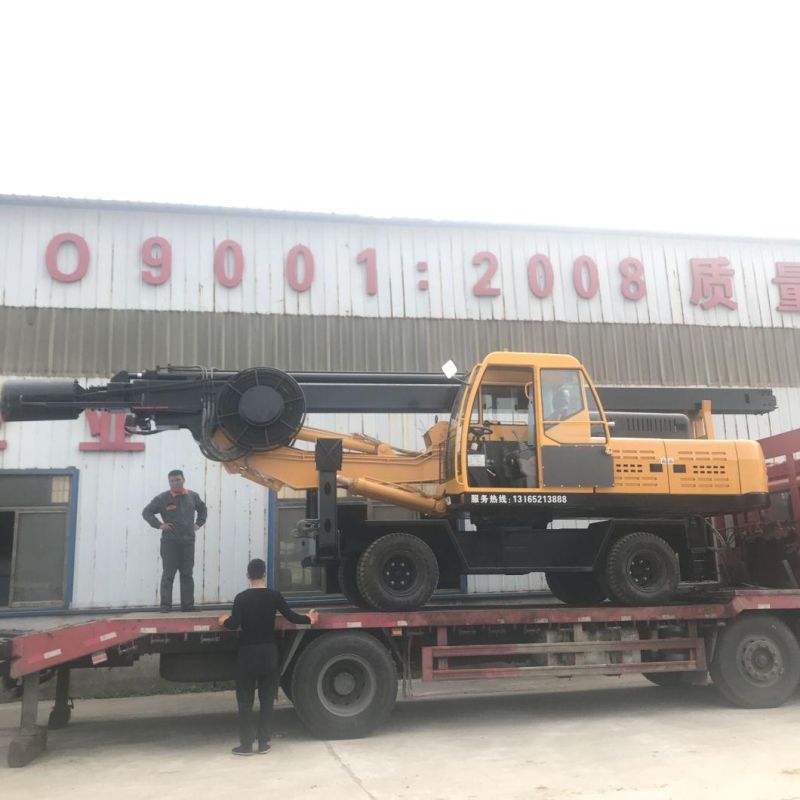

Customer Photo
 5-30m Borehole Core Hydraulic Water Well Drilling Machine
5-30m Borehole Core Hydraulic Water Well Drilling Machine
5-30m Borehole Core Hydraulic Water Well Drilling Machine

1.Q: Are you a manufacturer?
 A: Yes, we are a professional rotary drilling rig  manufacturer.
2.Q: What does your company produce?
 A: The main products of our company include rotary drilling rig.
3.Q: How about your delivery time?
 A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?
A: We accept T/T, L/C.
5.Q: Do you offer any deals or discounts?
 A: Yes, price depends on different quantity, different quantity will give you different price
