Portable Compact Geotechnical Core Drilling Rig Bore Well 200m Drilling Machine for Sale

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • After-sales Service：24 Months
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>150m
  • Bit Type：Drag Bit

Base Info

  • Model NO.：HF-200
  • Drilling Way：Rotary
  • Type：Crawler
  • Drill Hole Depth(M)：180
  • The Hole Diameter(mm)：350-1800
  • Spindle Speed(R/Min)：11
  • Spindle Power(Kw)：11
  • The Spindle Torque：12000
  • Hoist Lifting Force(Kg)：3000*6
  • Hydraulic Pump and Motor：700
  • Transport Package：Wooden Box
  • Specification：2500x1200x1750mm
  • Trademark：HW
  • Origin：China
  • Production Capacity：500 Set,Sets Per Month

Description

Model

HF-150

Drill hole depth(m)

≤180

The hole diameter(mm)

350-1800

Spindle speed(r/min)

11

Spindle power(kw)

11

The spindle torque(N•m)

12000

Hoist lifting force(kg)

3000×6

Mud pump

Traffic(m³/h)

300

Power(kw)

22

Generating set

The rated voltage(V)

380

Rated current(A)

90

Rated speed(r/min)

1500

Rated power(kw)

50

Main power supporting power

4105-6105 Diesel

Overall dimensions(L x W x H)(mm)

9200×2500×3500

Single weight(kg)

12000

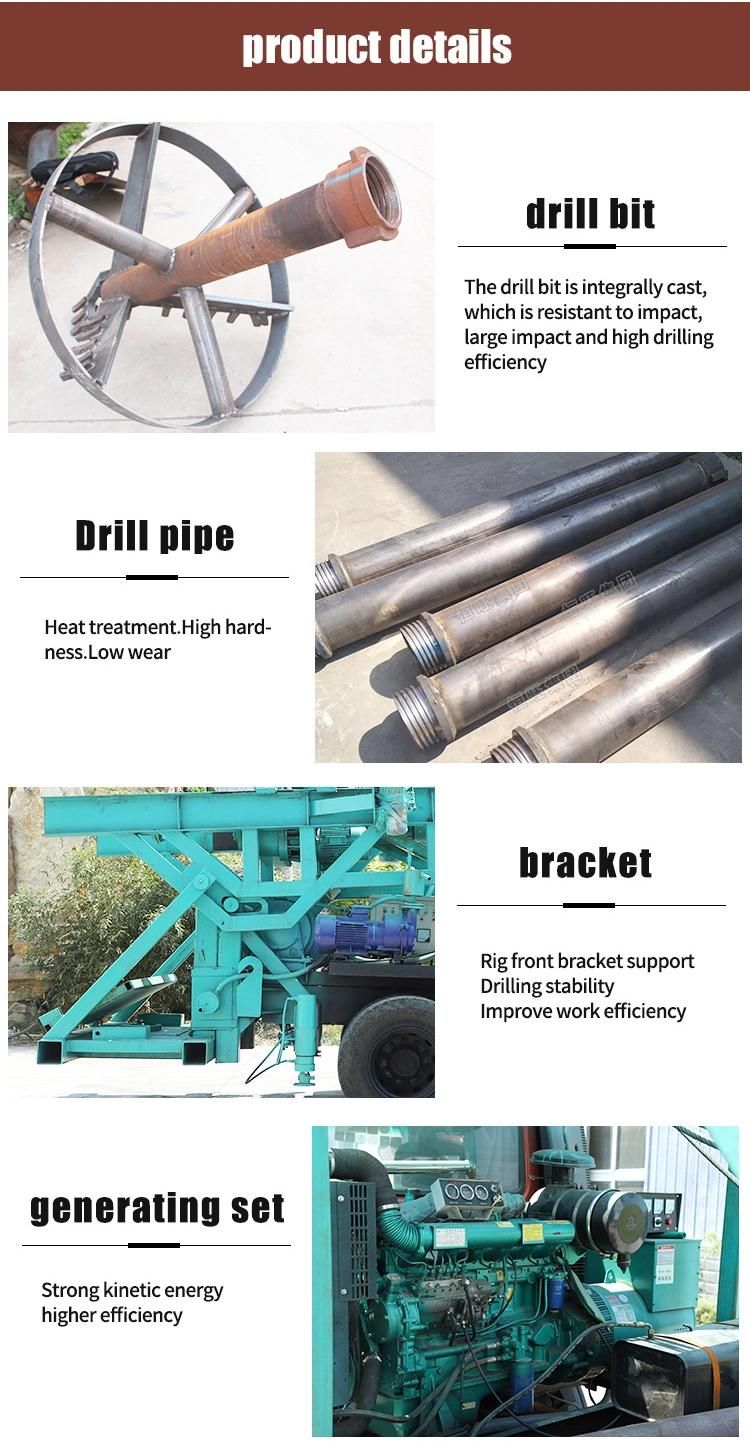

 Details Images
 Portable Compact Geotechnical Core Drilling Rig Bore Well 200m Drilling Machine for SalePortable Compact Geotechnical Core Drilling Rig Bore Well 200m Drilling Machine for Sale


Welcome your enquiry: Hengwang drilling rig
