Drilling Rig

Home > Product > Water Well Drilling Rig

High Performance Water Well Drilling Rig Bore Well Drilling Rig Machine

Ji Ning Hengwang Mining Machinery Co., Ltd.
  • Warranty：1 Year
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：130-294mm
  • Drill Hole Depth：220m

Base Info

  • Model NO.：HQZ220L
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Name：Crawler Pneumatic Rock Drilling Machine
  • Drill Diameter：130-294 mm
  • Drill Depth：220m
  • Geology：Rock
  • Once Promotion Distance：3000mm,6000
  • Drill Pipe：Dia.76mm Dia.89 Dia.102
  • Drill Pipe Length：3m
  • Rotary Torque：4200-5600 N.M
  • Weight：4200kg
  • Transport Package：Container
  • Specification：3800*1700*2350
  • Trademark：Hengwang
  • Origin：Shandong, China
  • HS Code：8430691900
  • Production Capacity：500 Sets Per Month

Description

3800*1700*2350



pneumatic water well drilling rig machine

Advantage :
1.Diesel engine use Yunnei diesel engine.
2.Walking device:walking motor with reducer ,long service life.
3.Hydraulic oil pump : parallel type gear box ,Oil pump monomer separation ,enough power supply.
4.Power head unit:gear box cast in one piece,two motor offer power,have big torque
5. chassis:Professional excavator chassis,big weight bearing capacity ,wide chain plate have small injure to road surface.have rubber and steel crawler .
6.lifting force :Composite arm have small volume ,long stroke.two oil cylinder lifting have big lifting forceThe drilling rig mainly adopts mechanical transmission, the other for the hydraulic transmission, can effectively use the power, reduce the overall power loss, making drilling low cost.the drilling rig adopts advanced structure, reasonable layout, easy to maintain and repair.the drilling rig, in the hydraulic system, reserves part of the functional interface, so the function can be extended according to different user's technical requirements.

Detail Images
High Performance Water Well Drilling Rig Bore Well Drilling Rig Machine
High Performance Water Well Drilling Rig Bore Well Drilling Rig Machine
High Performance Water Well Drilling Rig Bore Well Drilling Rig MachineHigh Performance Water Well Drilling Rig Bore Well Drilling Rig Machine

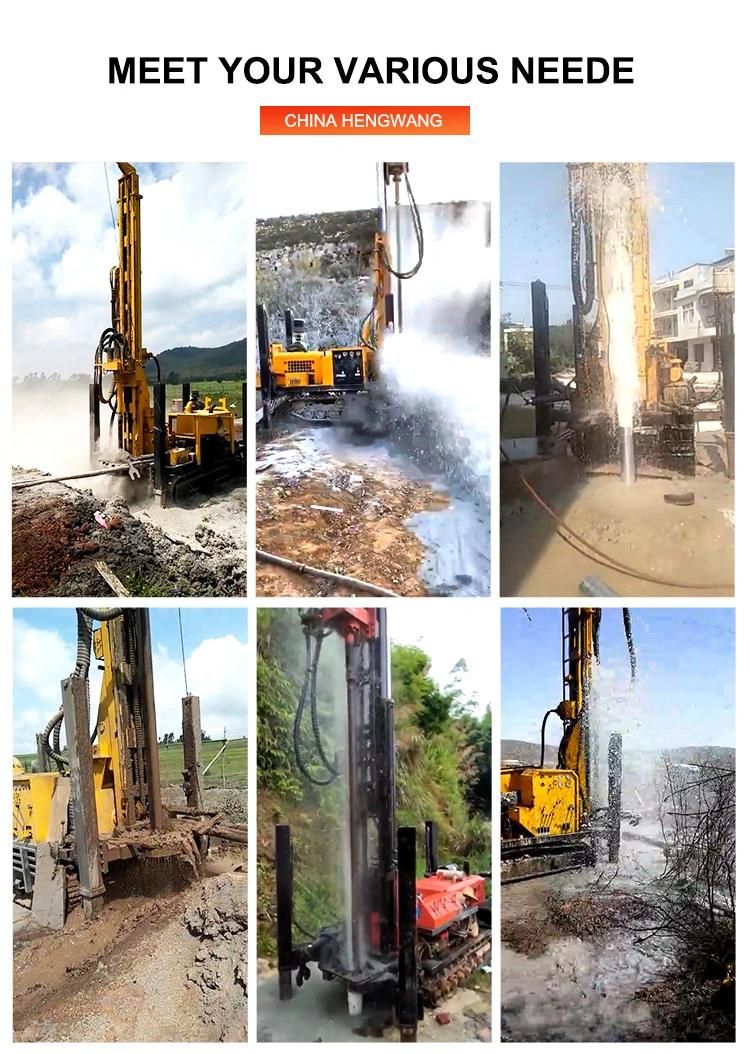

Product Usage

Air and mud pump water well drilling rig machine :our pneumatic drilling rig mainly used in rock geology .it need use together with air compressor.when drilling soil , it need use mud pump drilling . it is easy operate and have high drilling efficiency .

High Performance Water Well Drilling Rig Bore Well Drilling Rig Machine



Product Application
High Performance Water Well Drilling Rig Bore Well Drilling Rig Machine


Delivery
Pneumatic dth drilling rig delivery

High Performance Water Well Drilling Rig Bore Well Drilling Rig Machine

Company Information:
Shandong Hengwang Group Is located in Shiqiao Industrial Park, Beihu Provincial Tourist & Resort Area, Jining city ,Shandong Province,covers an area of 40000 square meters, is a collection of pile driving machinery , driling machine and conctruction machinery design,manufacture and installation of an integrated enterprise.
    Our company produces the piling machinery a total of 10 major series more than 20 varieties,water well driling rig machine,Construction machinery and other hydraulic products. Widely used in civil engineering, municipal and building foundation construction of installation works. Can meet the roads, railways, Bridges, industrial and civil building, harbor wharf, the need for the basic construction of the dam seepage control and so on.


High Performance Water Well Drilling Rig Bore Well Drilling Rig Machine

FAQ
Q:Are you manufacturer?

A: Yes, we are factory with more than 20 years of manufacturing experience.  Q:What is your terms of payment?  A: T/T 30% as deposit, and 70% before delivery. We'll show you the photos of the products and packagesbefore you pay the balance.  Q:What is the warranty of our machine? A:Our main machine enjoys a 1 year warranty, during this time all accessories broken can be changed for anew one.And we provide videos for machine install and operation.  Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity. Q:How do you make our business long-term and good relationship?  A:We keep good quality and competitive price to ensure our customers benefits;  Q:Do you have any certificates for your machine? A: All of our products coming with the certificates of CE, IS09001.
