• Model NO.：T-SLY300
• Drill Hole Depth：350m
• Bit Type：DTH Drill Bit, Roller Bit
• Drilling Way：Rotary
• Type：Truck Mounted
• Work Pressure：10.5-35 Bar
• Air Consumption：16-40 M3,Min
• Max Lifting Force：12 Ton
• Weight：12 Ton
• Transport Package：Standard Shipping Packing
• Specification：8900MM*2100MM*3300MM
• Trademark：LONGYE
• Origin：China
• HS Code：8430419000
• Production Capacity：300 Sets, Year

Basic Info.

Model NO. T-SLY300 Drill Hole Depth 350m Bit Type DTH Drill Bit/ Roller Bit Drilling Way Rotary Type Truck Mounted Work Pressure 10.5-35 Bar Air Consumption 16-40 M3/Min Max Lifting Force 12 Ton Weight 12 Ton Transport Package Standard Shipping Packing Specification 8900MM*2100MM*3300MM Trademark LONGYE Origin China HS Code 8430419000 Production Capacity 300 Sets/ Year

Product Description

Our Advantages

We are factory with 22 years history, our machine exported than 60countries.
We got ISO, CE certificate.


Product Introduction

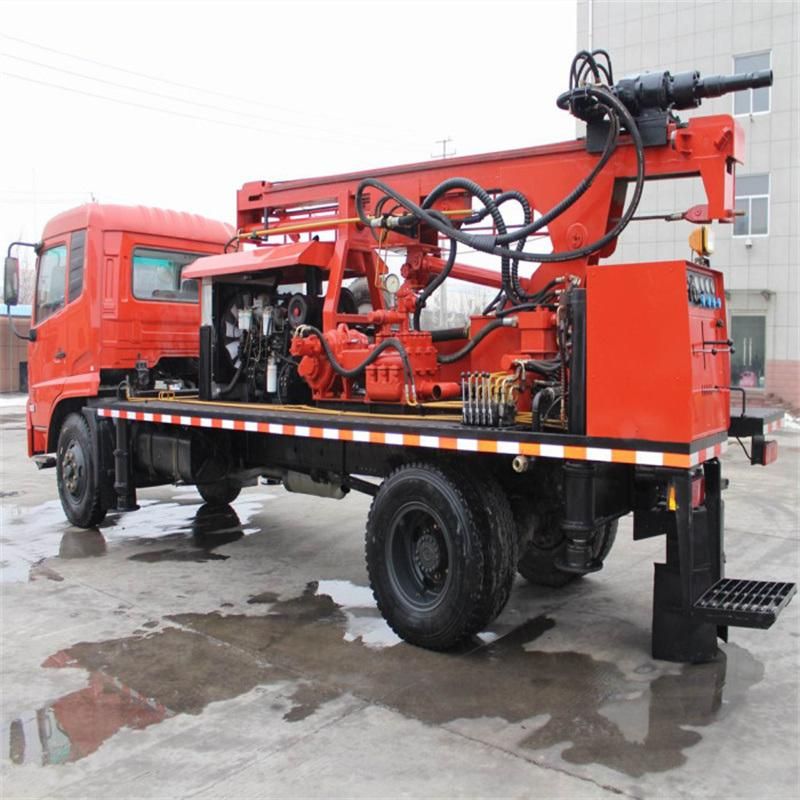

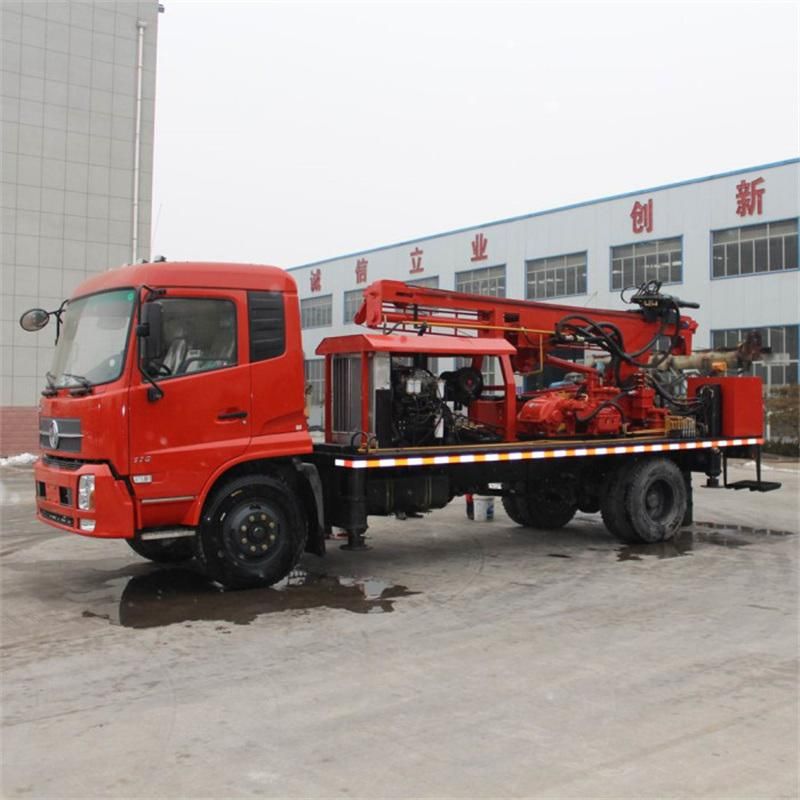

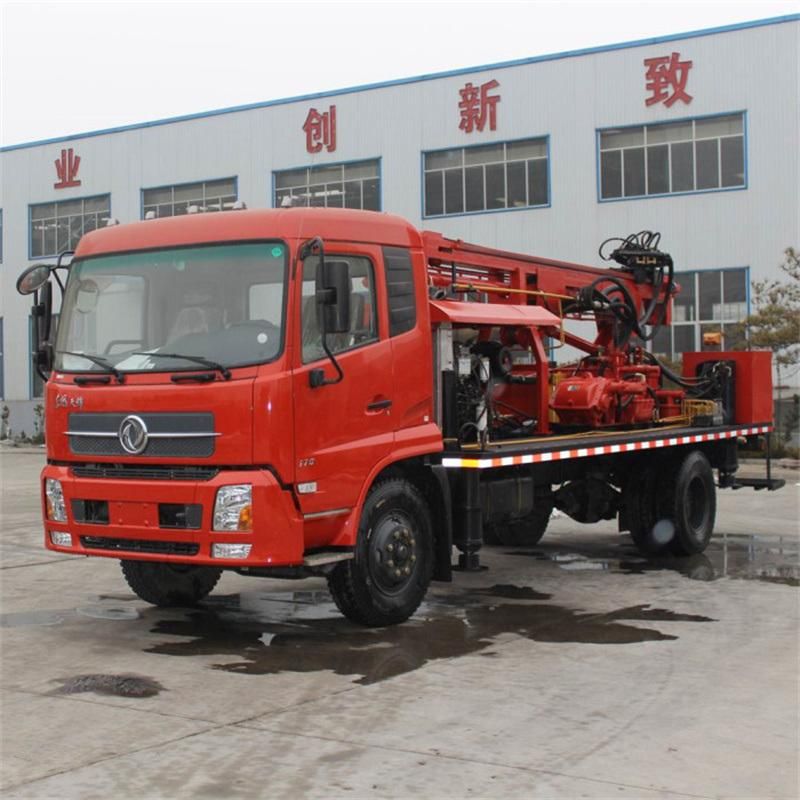

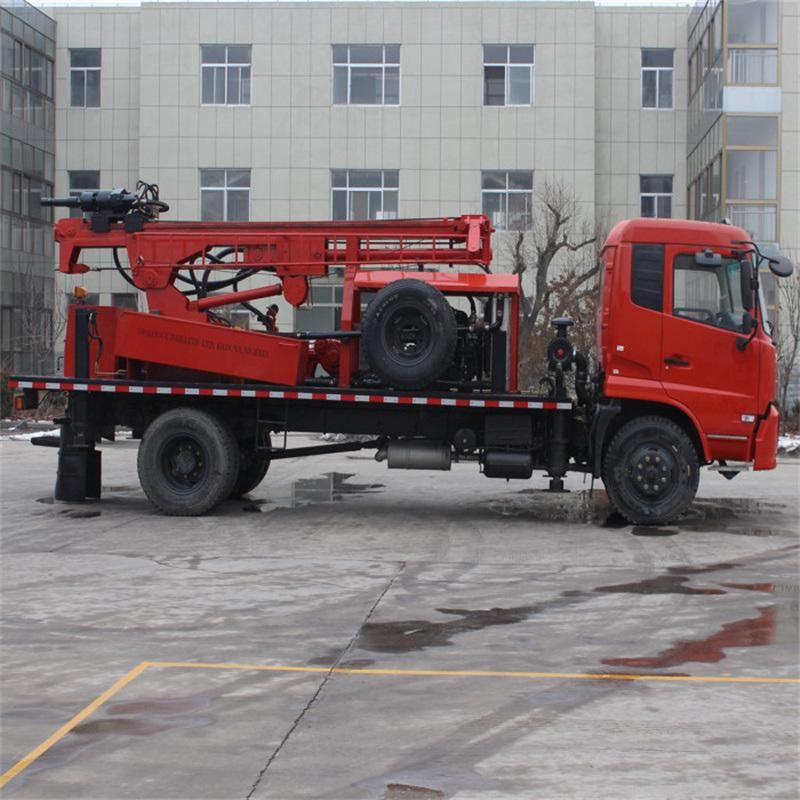

T-SLY300 truck mounted water well drilling rig
       T-SLY300 truck mounted water well drilling rig is lightweight, efficient, multi-purpose drilling equipment, which can use air,foam,or mud rotary for percussive drilling according to different textures. It is widely used in industrial and agricultural water conservancy projects, such as drilling wells, testing wells or other exploration boreholes, in particular  in drilling hole for geothermal heating. It can also meet the engineering basis for reinforcement, loose gravel drilling rock formation connected with a variety of engineering requirements.Technical Parameters

Bore Diameter(mm)	115-400
Bore Depth(m)	220-350
Work  Pressure (Mpa)	1.05-3.5
Air Consumption( m³/min)	16-40
Drill rod length(m)	3
Drill rod diameter(mm)	76/89
Dimension(mm)	8900*2100*3300
Total Weight( T)	12
Max Lifting force(T)	12
Rotation Torque( Nm)	3900
Rotation Speed(r/min)	0-100
Truck chassis	DONGFENG
Drive form	4*2

Product Display

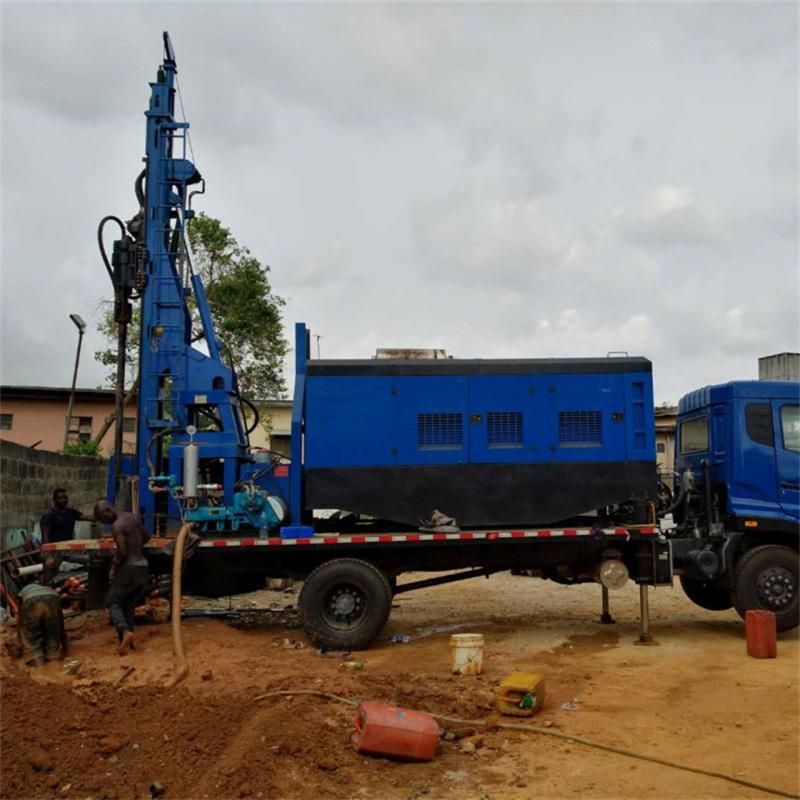

Product Application


Company Profile





FAQ

Q1: What's your delivery time?
A: 15 days to produce, within 3 days if in stock.

Q2: What's methods of payments are accepted?
A: We agree T/T ,L/C , West Union ,Money Gram ,Paypal.

Q3: What about the shipments and package?
A: 40' container for 2 sets, 20' container for 1 set,
Machine in nude packing, spare parts in standard export wooden box.

Q4: Have you got any certificate?
A:We have got ISO,CE certificate.

Q5: How to control the quality?
A: We will control the quality by ISO and CE requests.

Q6: Do you have after-sale service and warranty service ?
A: Yes, we have.We can supply instruction for operation and maintenance.If necessary, we can send our engineer to repair the machine in your company.
Warranty is one year for the machine.

Q7: Can I trust your company ?
 A: Our company has been certificated by Chinese government,and verified by SGS Inspection Company.Just order from US !
